The installation of a fire protection system is measured by its efficiency to complete a project on time while ensuring the safety of its personnel and sticking to a budget. The various methods for connecting pipes to each other have their advantages and disadvantages. As opposed to traditional welded fire protection piping, grooved pipe connections are often preferred for their speed and their reliability. This article elaborates on the reasons why this type of connection is preferred and how connection types can affect a project.
What Makes Grooved Pipe Systems Different from Welded Fire Protection Piping?
Grooved pipe systems are an alternative to welded fire protection piping using mechanical couplings to connect pipes that are fitted with grooves. This allows for connection of pipes without welding, thus eliminating the heat and corresponding labor of welding. The use of grooved pipe systems facilitates fast, safe, and flexible installation that is equal to welded systems with respect to functionality, reliability, and service life.
Key Components of a Grooved Pipe System
A typical grooved pipe system includes several essential elements designed for durability and efficiency. The primary components are grooved-end pipes—either rolled or cut grooves—couplings with gaskets that create leak-tight seals, and fittings such as elbows, tees, and reducers specifically made for grooved connections.
The elbow is another example of a fitting that has been robustly designed to offer efficient connection of pipes in HVAc, fire protection and industrial applications. A fitting that has been designed to last with ease of use the elbow provides a secure leak proof joint for high pressure and temperature applications. Like all of our fittings the elbow has been designed using the same philosophy as the mechanical tee to offer consistent performance in the most demanding of situations.

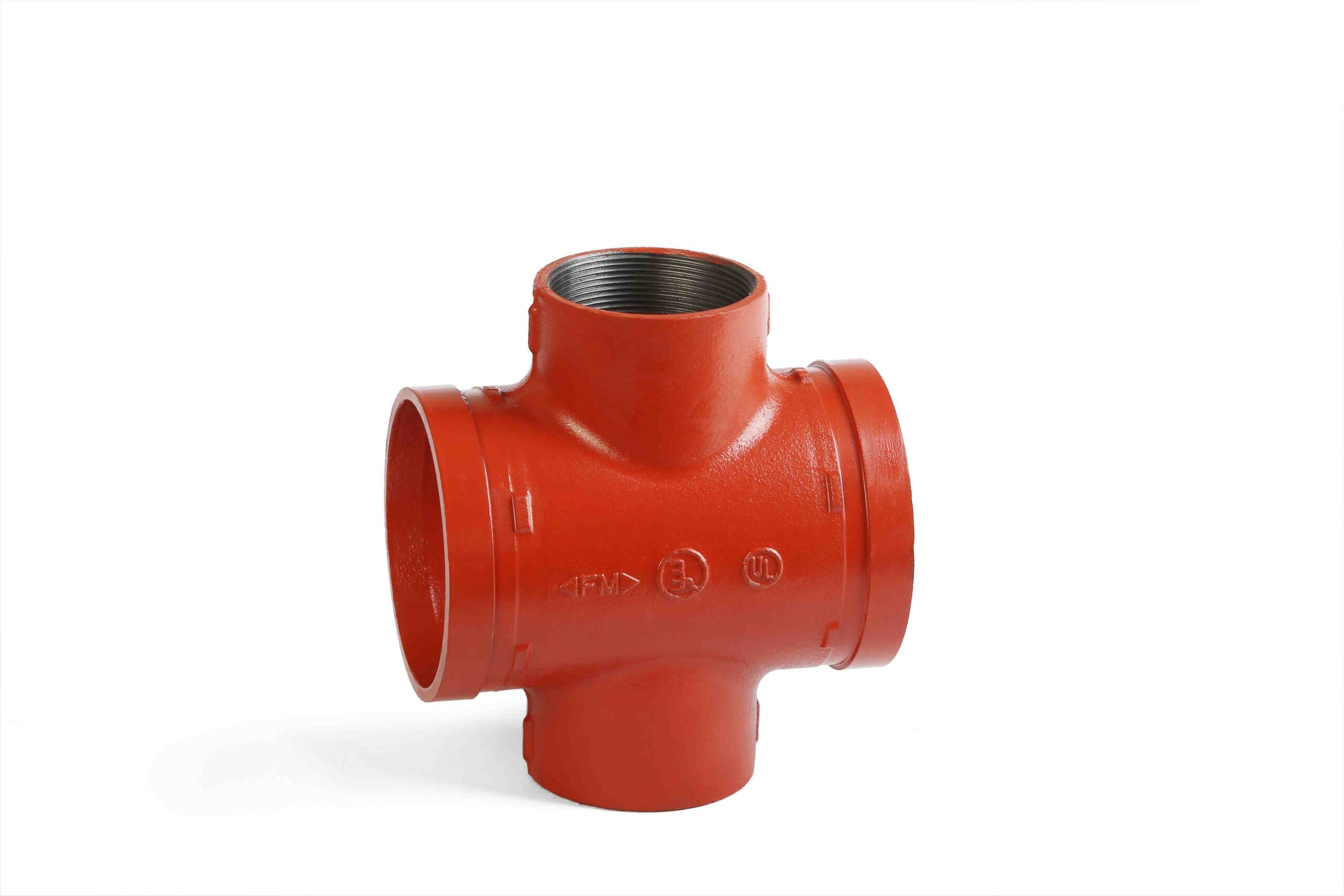

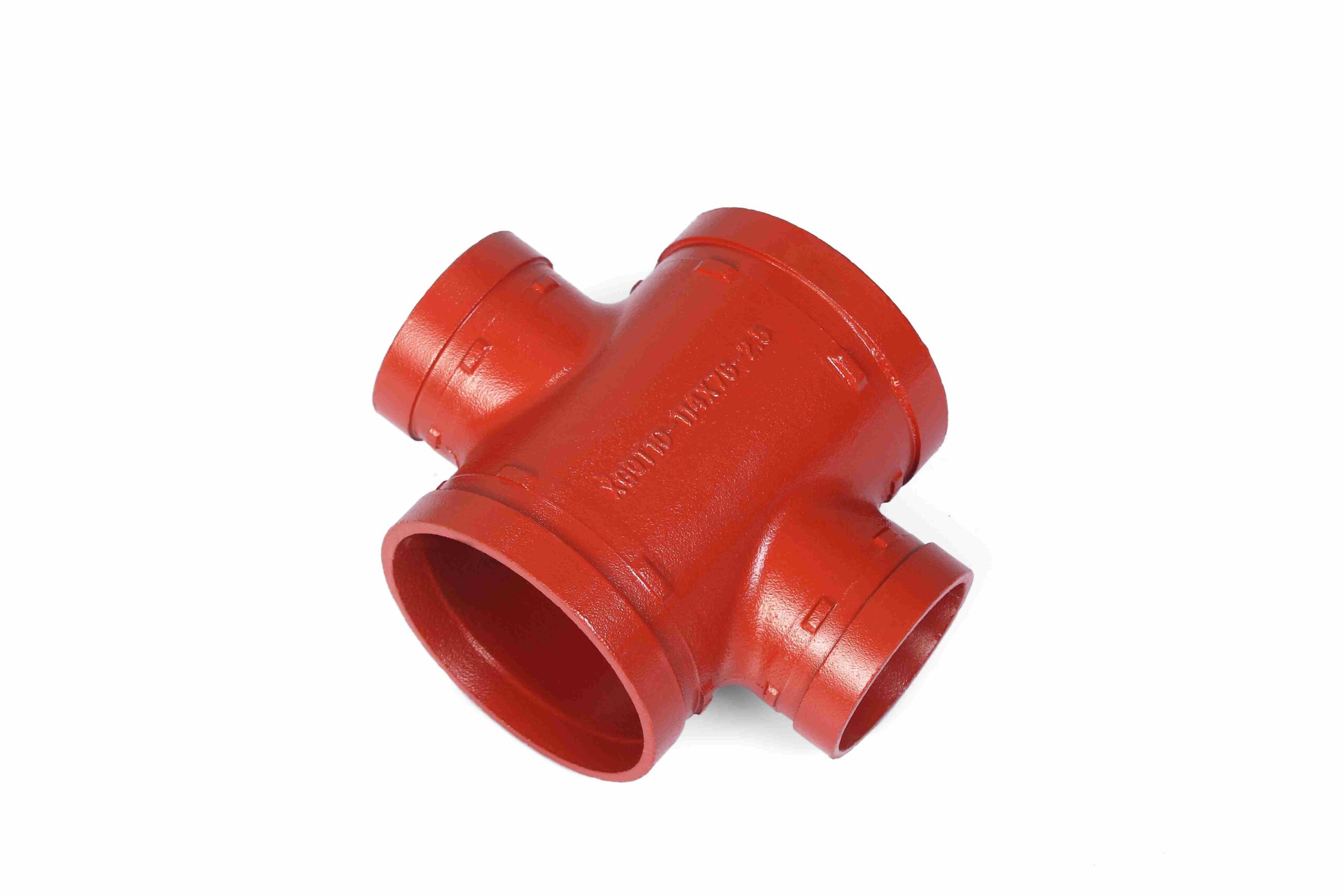

In a similar vein, our Grooved Mechanical Cross is designed to be robust and efficient to connect pipes in different fields of application such as HVAc systems, fire protection systems and industrial systems. The cross is made to last and is easy to install, the connection is leak-tight and robust. Standardized as our system is, these parts are simple to assemble and the system is modular.
How Welding Differs in Installation Requirements
As the welded fire protection piping is being installed, the piping is being installed by certified welders following strict guidelines for making the required pipe joints. Each joint requires the proper alignment of the pipe ends, correct beveling of the pipe ends, a proper on-site power source for the welding machine, and strict adherence to the safety procedures for hot work. After a weld has been completed, the joint is often inspected by radiography or by other testing such as ultrasonic testing. If any defects are found during the inspection, rework of the joint is required to correct the defect. This rework adds additional time and cost to the project.
Why Does a Grooved Pipe System Reduce Installation Time?
Fast Installation. From start-up to complete assembly, all processes of installation of a grooved pipe system are optimised in order to achieve the best possible installation performance while keeping loss of time as low as possible and still attaining the required accuracy.
Simplified Preparation Process
Compared to welding beveled cut piping joints, grooved piping requires very little in the form of preparation at the pipe ends, which are simply groove cut or rolled using a portable grooving tool. There is no need to preheat or dress the ends in any way. Therefore, it is typical to go straight to assembly of the piping without delay.
Faster Joint Assembly
Mechanical couplings can be assembled using simple hand tools in a matter of minutes compared to welding. By assembling one grooved coupling in minutes rather than hours for each welded joint, site crews can complete the assembly of large fire protection networks quickly, as they can assemble multiple joints simultaneously across different parts of the site.
Reduced Inspection and Cooling Delays
The lack of heat input during installation means there is no need for cooling of joints and no requirement for inspection by radiography as is typical for welded systems. This means that there is no need for post-weld testing schedules and work can continue uninterrupted throughout the day.
How Do Grooved Connections Enhance On-Site Efficiency?
In addition to the fast installation of grooved pipe systems, there are also advantages for the logistics on a construction site. The possibility of adjusting the alignment and the less environmental influence.
Ease of Alignment and Adjustment
Grooved couplings allow for limited angular deflection and flexibility during installation. These tolerances allow for small misalignments to be corrected without complete disassembly of sections. Additionally, the grooved coupling is designed to allow for expansion and contraction as a result of temperature change in long fire protection lines.
Minimal Impact from Weather Conditions
Welding work can be subject to restrictions in adverse weather such as rain or strong winds for reasons of safety due to the use of open flames or electrical equipment. In contrast, mechanical assembly of grooved systems can be carried out under most weather conditions as no hot work or electrical arcs are required.
Reduced Need for Specialized Labor
Simple mechanical assembly can provide an alternative to relying on certified welders for assembly of pipe couplings. Such technicians are often in short supply on busy construction projects. General technicians can be readily trained in the simple installation of such couplings using the manufacturer’s instructions and comply with relevant standards, such as ISO6182 or AWWA C606.
What Are the Long-Term Benefits of Choosing Grooved Over Welded Systems?
While the faster installation is immediate benefit of grooved pipe systems, there are also many operational advantages in maintenance flexibility, safety management and cost over the lifecycle of the installation.
Simplified Maintenance and Modifications
Grooved couplings can be field disassembled for inspection or system modification without cutting or welding pipes. This allows for building owner expansion of their fire protection network as their system configuration changes from time to time. New zones or system configurations can be added as required.
Our rigid grooved couplings are designed with precision to provide top quality performance in strenuous applications. The superior quality of our materials used in the manufacturing process provides for maximum strength, dependability and durability to withstand the demands of any project. These types of couplings are especially suitable for facilities that require frequent access for maintenance purposes as well as for projects that are built in stages.
Enhanced Safety During Operation
By removing hot work from both installation and maintenance phases, grooved systems significantly reduce fire hazards on-site. This improves compliance with occupational safety standards while minimizing risks associated with sparks or gas emissions during welding activities.
Cost Efficiency Over Project Lifespan
By speeding up the installation process and reducing the required amount of labor, installation costs for a project are reduced. Simple maintenance further increases the return on investment, because the time for inspection and retrofits is minimized during the entire life of the system.
How Does Hebei Jianzhi Foundry Group Co., Ltd Support Reliable Grooved Pipe Solutions?
Hebei Jianzhi Foundry Group Co., Ltd. is one of the biggest fire protection grooved pipe fittings manufacturers from China, which supply fire protection pipe fittings to customers from all over the world. Their fire protection fittings are made according to the international standards such as FM and UL, and are widely used in different environment.
Their Vicast® product line is an example of the quality engineering that their cast iron flanges possess, utilizing advanced material such as ASTM A536 Grade 65-45-12 as well as ASTM A395 Grade 65-45-15. In addition to the material that is used to make the flanges, the Vicast® line of cast iron flanges also meets ISO6182 as well as AWWA C606 design standards.
Vicast brand was established over 40 years ago. Ever since then, the brand has focused entirely on the Chinese market and grew up with China for 43 years. Today, Vicast is present in all 34 provincial-level regions in China. Throughout the years, Vicast has worked together with many of the prestigious projects in China. When the 2008 Beijing Olympic venues were being built, Vicast was the designated brand. Our engineering castings and foundry services have since then garnered much recognition and praise throughout the country. Our engineers at Jianzhi are committed to ensuring that each and every casting that leaves our foundry is of the highest quality possible. With our advanced foundry technology, we are able to cast elbows (XGQT05), crosses (XGQT18), tees (XGQT15S), and couplings (XGOT02) used in HVAC and fire suppression systems to exacting tolerances and made from the highest quality materials to ensure maximum durability.
Conclusion: The Strategic Advantage of Choosing Grooved Piping Systems
Instead of welding pipes for fire protection, by choosing a grooved pipe system, there are many advantages to completing different phases of a project. From the start, the pipes can be installed quickly and flexibly in the long term. Also engineers benefit from easier planning during the start-up phase, as no special measures have to be taken with regards to the connection. This type of connection is also just as strong as a welded connection, and as long as the pressure range is adhered to by the manufacturer, also approved for the required application. Pipe systems for fire protection are offered by well-known manufacturers such as Hebei Jianzhi Foundry Group Co., Ltd. for example, and are therefore also very suitable for the modern requirements of fire protection.
FAQs About Grooved Pipe Systems vs Welded Fire Protection Piping
1. Are grooved pipe systems as strong as welded joints?
Yes. Properly installed couplings have been engineered to equal the pressure rating of the pipe and are to be used within the design limits as stated in international standards such as AWWA C606.
2. Can grooved pipe systems be used in all fire protection applications?
These are suitable for most wet-pipe sprinkler installations as well as for dry-pipe and deluge systems, with suitable materials being chosen for exposure to environmental influences.
3. How do grooved fittings perform under seismic conditions?
Seismic activity is better managed by the assemblies’ inherent flexibility which allows for controlled movement at the joints and significantly reduces stress concentrations at the joints compared to a welded rigid joint.
4. What maintenance advantages do grooved systems offer?
Rapid disassembly of couplings for inspection or replacement is made possible without the need to cut pipes thereby minimizing downtime for routine service work.
5. Does Hebei Jianzhi provide custom solutions for specific projects?
Yes. We offer a facility design around a customer’s specific layout requirements. Our experience in designing controls for various industrial applications such as HVAC and fire suppression allows us to provide an optimal solution for our customers worldwide.
