Grooved couplings are a fundamental part of modern piping networks. They provide a dependable, adaptable, and effective method for joining pipes across fields like HVAC, fire safety, and water supply. But here’s an important point: pipes come in many types. The pipe material—whether it’s steel, copper, or plastic—greatly affects how well a grooved coupling works. If you are planning a system or fixing one, knowing how various pipe materials interact with grooved couplings can save effort, cost, and many problems. This article explores the details of pipe materials and their effect on grooved couplings. It offers practical advice for engineers, contractors, and maintenance teams.
Why Pipe Material Matters for Grooved Couplings

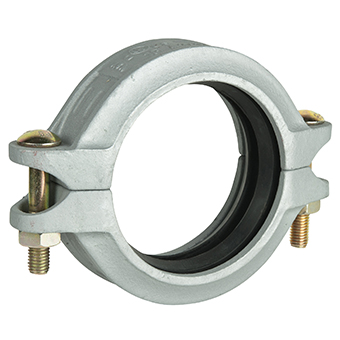

Grooved couplings join pipes mechanically by using a groove that is cut or formed into the pipe ends. A coupling contains a gasket that makes the seal, and bolts fasten everything together. It seems straightforward. But the pipe material influences everything. It affects how strong the groove is and how well the seal works. Different materials have distinct traits—like hardness, give, or rust resistance. These qualities determine how the coupling performs under pressure, temperature shifts, or outside forces.
For example, the stiffness of steel pipe can make it excellent for grooved setups. But using a soft material like PVC may bring difficulties. Let’s examine the main pipe materials and how they work—or don’t work—with grooved couplings.
Common Pipe Materials and Their Impact
Steel Pipes
Steel is a common choice for many grooved systems. It is often used in fire safety and industrial settings. Its toughness and longevity make it perfect for high-pressure uses. But steel pipes vary.
Carbon Steel: This is a backbone in piping. It is strong, manages high pressure, and forms neat grooves that couplings hold firmly. But carbon steel can rust in wet or chemical-rich settings. So, coatings or linings are often used to shield the coupling’s gasket from wear.
Stainless Steel: This type resists corrosion very well. It costs more but suits tough places like chemical plants or coastal zones. However, stainless steel is harder to groove because it is so tough. Accurate cutting is key to avoid harming the pipe or coupling.
Galvanized Steel: This steel has a zinc coating to prevent rust. It is common in water systems. The zinc layer can make grooving harder. It might chip or break, which could loosen the coupling’s hold. Frequent groove checks are necessary.
Pro Tip: With steel pipes, always measure the groove depth and width. A shallow groove on a thick steel pipe might cause a poor fit and leaks. Industry guidelines often recommend a groove depth near 0.045 inches for most carbon steel pipes.
Copper Pipes
Copper is popular in HVAC and drinking water systems because it resists corrosion and conducts heat well. But grooved couplings are less straightforward here.
Soft Copper: This type is bendy and used in smaller systems. It is not great for grooved couplings. The material can bend under the coupling’s pressure, causing leaks or joint breaks.
Hard Copper: This kind is more suitable for grooving. It keeps its shape better. But copper is softer than steel. So, grooves must be cut accurately to avoid crushing the pipe end.
Real-World Example: In a recent HVAC update in a business building, engineers moved from soldered copper joints to grooved couplings to speed up installation. They saw that using hard copper pipes with precisely made grooves cut mistakes by 30% compared to older ways.
Plastic Pipes (PVC/CPVC)
Plastic pipes like PVC and CPVC are light, resist corrosion, and cost little. But they are not always a good fit for grooved couplings.
PVC: Basic PVC is too soft for standard grooved couplings. The clamping pressure can break the pipe or warp the groove, resulting in leaks. Some setups use special adapters, but this is not typical.
CPVC: This is a bit stiffer than PVC. It can work with grooved couplings in low-pressure uses like fire sprinkler systems. Still, the material is brittle. You must be very cautious during installation to prevent small cracks.
Data Point: Research from the National Fire Protection Association found that CPVC with grooved couplings failed 15% more often in high-pressure tests than steel. This shows that material choice must be careful.
Ductile Iron Pipes
Ductile iron is a robust option for water and sewage systems. Its strength matches steel, but it is more brittle. This changes how grooved couplings perform.
Strengths: Ductile iron can take deep grooves and high-pressure systems. It is a reliable pick for city water lines.
Challenges: Its brittleness means poor grooving can cause tiny cracks. These weaken the joint. Also, the weight of ductile iron can strain the coupling bolts. So, checking the bolt tightness regularly is important.
Quick Anecdote: I once talked with a contractor who preferred ductile iron for a city water job. But he forgot to use a torque wrench check. This caused a coupling to fail during a pressure test. The lesson is clear: always verify the bolts.
Key Factors Influencing Coupling Performance
To understand how pipe materials change grooved couplings, consider these main factors. The table below summarizes the relationships:
| Pipe Material | Groove Integrity | Corrosion Resistance | Pressure Handling | Installation Ease |
| Carbon Steel | High | Moderate (needs coating) | Excellent | Easy |
| Stainless Steel | High (harder to cut) | Excellent | Excellent | Moderate |
| Copper (Hard) | Moderate | Excellent | Good | Moderate |
| PVC/CPVC | Low | Excellent | Poor | Challenging |
| Ductile Iron | High | Good (with coating) | Excellent | Moderate |
Groove Integrity: Harder materials like steel and ductile iron keep grooves better than softer ones like PVC. A bad groove can mean a weak seal or slipping coupling.
Corrosion Resistance: Materials like copper and stainless steel lower the chance of gasket damage in corrosive settings. This makes the coupling last longer.
Pressure Handling: Steel and ductile iron do well in high-pressure systems. Plastic pipes have trouble with heavy loads.
Installation Ease: Softer materials need more attention during grooving and coupling setup to prevent damage.
Vicast: Your Trusted Grooved Couplings Supplier
For grooved couplings, Vicast is a dependable partner for industries globally. They focus on quality and new ideas. Vicast provides a variety of grooved couplings made to work smoothly with different pipe materials, from steel to ductile iron. Their products are built to last, easy to install, and fit demanding uses like fire protection, HVAC, and water cleaning. With years of field knowledge and a focus on sustainability, Vicast ensures every coupling meets strict standards. This helps you create systems that endure. Whether you are handling a big city project or a business update, Vicast’s know-how makes them a leading choice for grooved coupling answers.
Conclusion
Selecting the correct pipe material for grooved couplings is not just about cost or convenience. It is about knowing how material traits like hardness, corrosion resistance, and flexibility change joint performance. Steel and ductile iron are often safe options for high-pressure or industrial systems. Copper and CPVC can work in certain low-pressure cases with careful setup. By considering groove integrity, environmental conditions, and system needs, you can create a piping system that is both productive and trustworthy. And with a reliable supplier like Vicast, you have the support to succeed. Got questions? See the FAQs below for more information.
FAQs
How do different pipe materials influence grooved couplings in terms of installation time?
The pipe material can greatly change installation speed. Steel and ductile iron pipes are stiff. They allow fast and accurate grooving. This often reduces installation time by 20–30% compared to soldered or welded joints. Softer materials like PVC need special tools and extra care to avoid pipe damage. This can slow things down.
Can I use grooved couplings with any pipe material?
Not exactly. Grooved couplings are flexible, but they perform best with rigid materials like steel or ductile iron. Softer materials like PVC or soft copper can bend under the coupling’s pressure, causing leaks. Always review the manufacturer’s details to confirm compatibility.
How does corrosion in different pipe materials influence grooved couplings?
Materials like carbon steel that rust easily can wear down the coupling’s gasket over time if not coated correctly. Stainless steel or copper resist corrosion better. They help keep the seal strong, especially in harsh areas like coastal regions or chemical plants.
What’s the best pipe material for grooved couplings in fire protection systems?
Steel, especially carbon or stainless, is usually the best option for fire protection because it is strong and handles pressure well. CPVC can work in low-pressure sprinkler systems but needs careful installation to avoid joint problems.
How do I ensure a strong seal when using different pipe materials with grooved couplings?
Match the groove sizes to industry standards, such as AWWA C606 for water systems. Choose the right gasket material for the pipe’s setting—EPDM for water, nitrile for oils. Always tighten the coupling bolts to the manufacturer’s instructions. Routine inspections find issues early.
