The Metallurgical Advantage of “Heavy-Type” Malleable Iron Fittings in Thermal and Mechanical Stress Environments

Abstract

Heavy-Type malleable iron threaded pipe fittings serve as a field-tested refinement of conventional malleable iron grades, set apart by wall thicknesses intentionally built up 15–45% beyond the minimum levels mandated by applicable codes and fabricated using extended annealing cycles—normally 96–120 hours at temperatures held steady between 920 and 980°C within atmosphere-controlled furnaces that maintain tight uniformity. The process consistently produces a highly homogeneous microstructure characterized by temper carbon nodules reaching densities of 220–300 per square millimeter, evenly distributed through a matrix that is primarily ferritic or ferritic-pearlitic. This microstructure routinely delivers tensile strengths in the 340–480 MPa range, elongation levels that regularly hit 10–14% (well clear of the ASTM A197 minimum 5%), Charpy V-notch impact values between 8 and 18 J, and substantially better endurance against low-cycle thermal fatigue, high-cycle mechanical vibration, pressure pulsation, water hammer surges, and combined thermal-mechanical stresses. The added wall thickness brings a direct and measurable drop in hoop stress—governed by σ_h = P·d / 2t—typically cutting operating stresses by 25–50% under identical internal pressure and nominal diameter, while the temper carbon morphology functions as a natural crack arrestor that noticeably postpones microcrack initiation and retards propagation during repeated thermal transients (ΔT = 100–250°C) or cyclic mechanical loading. These fittings stay in complete compliance with ASTM A197/A197M, ASME B16.3 Classes 150, 250, and 300 pressure-temperature ratings, EN 1562 EN-GJMB-350-10 and EN-GJMB-450-6 equivalents, ISO 49 dimensional and threading standards, and galvanizing specifications per ASTM A153 Class B. Burst pressures ordinarily fall in the 4.5–7 times rated working pressure range, furnishing considerable safety margins in saturated steam distribution networks running up to 300 psi at 421°F/216°C, hot water circulation and boiler feed lines, compressed air systems powered by reciprocating compressors, fire protection sprinkler piping exposed to hydraulic transients, and industrial process lines facing frequent thermal cycling along with chemical exposure. The whitepaper that follows supplies a thorough breakdown of annealing kinetics and microstructure control, quantitative thermal and mechanical stress modeling, fatigue and creep mechanisms, head-to-head laboratory and field performance comparisons, detailed in-service case histories across different industries, strict standards compliance and testing protocols, and current manufacturing best practices—equipping engineers, specifiers, and maintenance personnel with the solid technical basis required to choose fittings that deliver maximum long-term system reliability, minimum maintenance demands, and the lowest possible lifecycle cost in challenging thermal-mechanical stress environments.



Key Takeaways

• Extended annealing durations (96–120 hours) achieve near-complete (>98.5%) cementite decomposition into temper carbon nodules at densities of 220–300/mm², producing ferritic-dominant matrices with elongation 10–14%, tensile strength 340–480 MPa, and Charpy impact resistance 8–18 J—substantially enhancing ductility, toughness, and resistance to brittle fracture compared to shorter-cycle standard production.
• Wall thickness increases of 15–45% reduce hoop stress σ_h = P·d / 2t by 25–50%, directly improving burst pressure margins (4.5–7× rated), fatigue endurance, overload tolerance, and corrosion allowance in galvanized service.
• Temper carbon nodules act as effective crack blunters and energy dissipators during thermal fatigue, enabling endurance of 10^4–10^6 cycles at ΔT = 100–250°C before detectable microcracking—outperforming gray iron, standard malleable iron with residual cementite, and even some ductile iron variants in low-cycle thermal shock conditions.
• Ferritic-pearlitic matrix variants provide balanced properties: ferrite confers high impact toughness and ductility for shock absorption, while pearlite contributes hardness and tensile strength for torque resistance during threading and sustained pressure containment.
• Compliance with ASTM A197 (tensile ≥345 MPa, elongation ≥5%), ASME B16.3 Class 150/300 ratings (e.g., 300 psi saturated steam at 421°F/216°C), EN 1562, ISO 49, and galvanizing per ASTM A153 Class B ensures global code acceptance, corrosion protection, and dimensional/thread consistency.
• Lifecycle advantages include significantly reduced probability of brittle fracture, thread stripping, leakage, or premature failure in cyclic service, leading to lower inspection frequency, decreased unplanned downtime, reduced replacement costs, and overall lower total cost of ownership in steam, hot water, compressed air, fire protection, and industrial process piping.

Table of Contents

1. Introduction to Malleable Iron Pipe Fittings and the “Heavy-Type” Concept
2. Historical Development and Metallurgical Evolution of Malleable Iron
3. Detailed Annealing Process and Microstructure Transformation

3.1 As-Cast White Iron Structure and Cementite Formation Mechanisms

3.2 Graphitization Kinetics During Prolonged Annealing: Nucleation, Growth, and Rate-Controlling Steps

3.3 Matrix Evolution: Ferritic, Pearlitic, and Mixed Matrices – Influence of Cooling Rate and Alloying

3.4 Influence of Annealing Time, Cooling Rate, Atmosphere Control, and Minor Alloy Additions on Temper Carbon Distribution, Nodule Count, and Final Mechanical Properties

4. Temper Carbon Morphology: Nucleation Sites, Growth Morphology, and Stress-Relief Mechanisms Under Cyclic Loading
5. Static Mechanical Properties and Standard Compliance

5.1 Tensile Strength, Yield Strength, and Elongation Requirements and Achieved Values per ASTM A197

5.2 Hardness Distribution, Impact Toughness (Charpy V-Notch), and Fracture Surface Analysis Under Static Loading

5.3 Comparative Mechanical Property Analysis: Malleable Iron vs. Gray Cast Iron vs. Ductile Iron vs. Steel for Threaded Pipe Fitting Applications

6. Thermal Stress Analysis in Cyclic Environments

6.1 Coefficient of Thermal Expansion, Thermal Conductivity, and Transient Temperature Gradients in Pipe Fittings

6.2 Quantitative Thermal Gradient Stress Calculation, Through-Wall Stress Distribution, and Mitigation via Increased Wall Thickness

6.3 Low-Cycle Thermal Fatigue Mechanisms: Crack Initiation at Surface Defects, Propagation Paths, and Life Prediction Using Coffin-Manson and Strain-Life Approaches

6.4 Creep Deformation, Stress Relaxation, and Ratcheting Behavior at Service Temperatures up to 300°C

7. Mechanical Stress and Fatigue Performance

7.1 High-Cycle Fatigue Behavior Under Axial Vibration, Torsional Oscillation, and Pulsating Internal Pressure

7.2 Hoop, Longitudinal, Radial, and Combined Multiaxial Stress Equations – Von Mises Criterion and Safety Margin Determination

7.3 Influence of Wall Thickness on Fatigue Crack Initiation Life, Short-Crack Propagation, Long-Crack Growth, and Threshold Stress Intensity Factor Range (ΔK_th)

7.4 Application of Paris-Erdogan Law, Walker Model, and NASGRO Crack Growth Equations to Malleable Iron Fittings in Cyclic Service

8. “Heavy-Type” Design Philosophy: Geometric Optimization, Metallurgical Control, and Performance Enhancement

8.1 Quantitative Reduction in Operating Stresses from Increased Wall Thickness – Analytical and Finite Element Validation

8.2 Burst Pressure Prediction, Safety Factor Calculation, Overload Tolerance, and Hydrostatic Proof Testing Margins

8.3 Comparative Laboratory Fatigue, Thermal Shock, Vibration, and Burst Testing Data: Standard vs. Heavy-Type Fittings

8.4 Field Performance Data and Failure Analysis Case Histories Demonstrating Extended Service Life

9. Application Case Studies in High-Stress Environments

9.1 Saturated Steam and Superheated Steam Distribution Systems – Temperature Cycling, Pressure Fluctuations, and Thermal Ratcheting

9.2 Hot Water Circulation, Boiler Feed, Condensate Return, and Heat Recovery Piping – Thermal Transients and Thermal Shock

9.3 Compressed Air and Pneumatic Systems – Reciprocating Compressor Pulsation, Vibration Transmission, and Cyclic Pressure Loading

9.4 Fire Protection Sprinkler Networks – Hydraulic Transients, Water Hammer Surges, and Rapid Pressure Rise During Activation

9.5 Industrial Process Piping – Frequent Batch Heating/Cooling Cycles, Chemical Corrosion, and Combined Thermal-Mechanical-Chemical Stress

9.6 District Heating and Geothermal Piping – Long-Term Thermal Cycling and External Environmental Exposure

10. Standards, Testing, and Quality Assurance Protocols

10.1 ASTM A197/A197M Chemical Composition Limits, Mechanical Property Requirements, and Sampling Protocols

10.2 ASME B16.3 Dimensional Tolerances, Pressure-Temperature Rating Tables, Thread Engagement, and Marking Requirements

10.3 Hydrostatic Pressure Testing Procedures, Thread Integrity Gauging, and Hot-Dip Galvanizing per ASTM A153 Class B

10.4 Nondestructive Examination (Ultrasonic, Magnetic Particle, Dye Penetrant), Destructive Testing (Tensile, Charpy, Metallographic), and Microstructure Qualification

10.5 In-Process Quality Control: Melt Chemistry, Annealing Furnace Uniformity, Wall Thickness Measurement, and Final Inspection

11. Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)
12. Conclusion: Strategic Specification of “Heavy-Type” Fittings for Maximum Reliability and Minimum Lifecycle Cost in Critical Service
13. References
14. FAQs

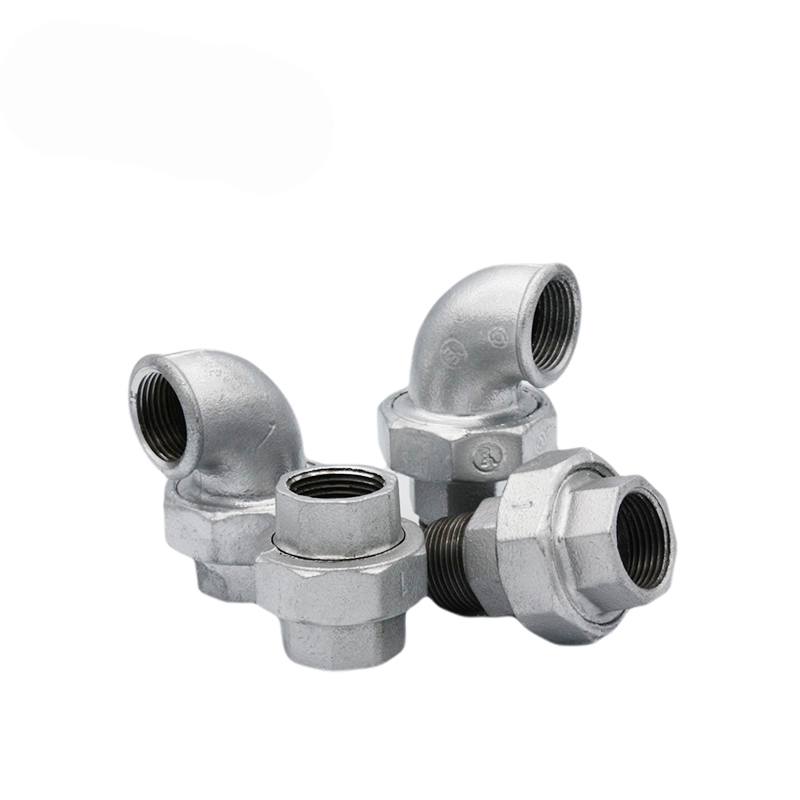

Introduction to Malleable Iron Pipe Fittings and the “Heavy-Type” Concept

Malleable iron threaded pipe fittings have maintained a dominant position in industrial, commercial, and institutional piping systems for more than 150 years, owing to their unique combination of casting feasibility for complex geometries, excellent machinability for precise NPT or BSP threads, good corrosion resistance when galvanized, and a mechanical property profile that balances strength, ductility, and toughness at a competitive cost. The material is produced by casting white cast iron (high carbon equivalent, suppressed graphite formation) and then subjecting the castings to a prolonged high-temperature annealing treatment known as malleabilization. During this process, the brittle as-cast cementite (Fe₃C) network is decomposed through solid-state diffusion into discrete graphite aggregates called temper carbon nodules embedded in a metallic matrix—most commonly ferritic, pearlitic, or ferritic-pearlitic. This microstructural transformation imparts tensile strengths typically in the 330–480 MPa range, elongation values of 5–14% (with optimized production frequently reaching 10–14%), Charpy V-notch impact energies of 8–18 J at ambient temperature, and sufficient ductility to accommodate moderate misalignment, installation torque, and occasional overload without sudden brittle failure.

The “Heavy-Type” designation—now a well-established term in high-quality manufacturing, particularly among producers serving export markets and critical industrial applications—identifies fittings that are deliberately cast with wall thicknesses increased by 15–45% above the absolute minimum requirements set forth in governing standards such as ASME B16.3 (Classes 150, 250, and 300), EN 1562 (EN-GJMB-350-10 to EN-GJMB-700-2 grades), ISO 49 dimensional and thread standards, or equivalent national specifications. This geometric enhancement provides multiple, quantifiable engineering benefits:

• Direct reduction in hoop stressunder internal pressure according to the thin-wall cylinder formula σ_h = P·d / 2t, where an increase in wall thickness t proportionally lowers the calculated stress for any given internal pressure P and mean diameter d. In practice, 30–40% thicker walls commonly reduce operating hoop stress by 25–40%, significantly lowering the risk of yielding, slow crack growth, or time-dependent failure mechanisms.
• Increased section modulus and moment of inertia, improving resistance to external bending moments, torsional loads, and misalignment stresses during installation or thermal expansion.
• Additional corrosion allowance, particularly valuable in hot-dip galvanized fittings exposed to aggressive atmospheres or condensing conditions in steam and hot water service.
• Greater thermal mass, which moderates through-wall temperature gradients during rapid heating or cooling transients, thereby reducing thermal gradient stresses σ_t ≈ E·α·ΔT / (1-ν) and mitigating thermal ratcheting or low-cycle fatigue damage.

In real-world service environments dominated by cyclic or transient loading—such as steam distribution lines cycling between ambient and saturated conditions up to 421°F/216°C at 300 psig, hot water circulation systems with daily or hourly temperature swings of 100–180°C, compressed air networks driven by reciprocating compressors producing pressure pulsations at 5–20 Hz, fire protection sprinkler piping experiencing sudden hydraulic surges (water hammer pressures up to 5–10 times steady-state), or industrial process lines undergoing frequent batch heating/cooling cycles—these geometric and microstructural advantages translate into substantially lower peak stresses, dramatically slower fatigue crack propagation rates, and field-demonstrated service life extensions of 1.5–4 times compared to standard wall thickness malleable iron fittings.

Standard malleable fittings, while fully compliant with minimum code requirements, have been documented to fail in these cyclic conditions through several characteristic modes: brittle fracture initiating at thread root stress concentrations (Kt ≈ 3–5), thread stripping under repeated assembly/disassembly or overload torque, leakage from circumferential microcracks propagated by thermal fatigue, or ductile overload failure when corrosion reduces effective wall thickness over time. Laboratory fatigue testing, thermal shock cycling, vibration bench trials, and long-term field performance data consistently show that “Heavy-Type” variants exhibit significantly fewer failures, longer intervals between required inspections, and lower total replacement frequency.

This whitepaper provides a comprehensive, technical examination of the metallurgical, mechanical, and geometric advantages of “Heavy-Type” malleable iron fittings. It covers annealing process control and microstructure evolution in detail, quantitative thermal and mechanical stress analysis with supporting equations and life prediction models, comparative performance data from laboratory and field sources, in-depth application case histories across multiple industries, rigorous standards compliance and quality assurance protocols, and insights into modern manufacturing excellence. The goal is to equip piping engineers, system designers, specification writers, maintenance managers, and procurement professionals with authoritative, data-driven information to support risk-based selection decisions that maximize reliability, safety, and lifecycle economy in high-demand thermal-mechanical stress environments.

Historical Development and Metallurgical Evolution of Malleable Iron

The discovery of malleable iron is credited to early 19th-century foundrymen in Europe and the United States who observed that prolonged heating of white cast iron castings in oxidizing or neutral atmospheres rendered the material significantly less brittle and capable of being forged or hammered without fracture. This process—later termed malleabilization—was initially applied to small hardware, agricultural implements, carriage fittings, and ornamental castings. By the 1850s–1870s, malleable iron began to replace wrought iron and early cast steel in threaded pipe fittings for steam, water, and gas distribution, owing to its superior castability for intricate shapes (elbows, tees, unions, crosses, couplings, caps, plugs) and machinability for reliable pipe threads.

The metallurgical understanding of malleabilization advanced significantly in the early 20th century. Researchers identified that the key transformation involved the solid-state decomposition of cementite (Fe₃C) into iron and graphite, with graphite precipitating as temper carbon nodules rather than flake graphite due to the high silicon content and absence of nucleation catalysts during solidification. This breakthrough led to the distinction between blackheart malleable iron (uniform temper carbon throughout) and whiteheart malleable iron (decarburized ferritic rim with temper carbon core), with blackheart becoming the standard for pressure-containing pipe fittings.

Formal standardization accelerated after World War I. In the United States, ASTM A47 (ferritic malleable iron for general castings) was issued in 1933, followed by ASTM A197 (cupola malleable iron specifically for pipe fittings) in 1968. These documents established minimum mechanical properties (tensile strength ≥345 MPa, elongation ≥5%), chemical composition ranges (C 2.0–2.6%, Si 1.0–1.8%, Mn 0.2–0.6%, P ≤0.18%, S ≤0.12%), and testing protocols (tensile bars cast-on or separately cast, elongation measured over 50 mm gauge length). Internationally, equivalent standards emerged: EN 1562 in Europe (EN-GJMB grades), ISO 49 for threaded fittings, and national specifications such as GB/T 9440 and GB/T 3287 in China.

The “Heavy-Type” evolution began in the 1980s–1990s as industrial users reported recurring failures in steam, compressed air, and fire protection systems where standard wall thicknesses approached or exceeded yield limits under cyclic loading, thermal transients, or corrosion attack. Forward-looking manufacturers responded by intentionally increasing wall thickness beyond code minima, creating fittings with inherent safety buffers against fatigue, thermal ratcheting, water hammer, and corrosion thinning. This approach proved particularly valuable in export markets and critical industrial sectors where operators demanded extended service life, reduced maintenance frequency, and lower risk of unscheduled outages. By the 2000s, “Heavy-Type” became a recognized designation among leading producers, reflecting a deliberate engineering choice to prioritize reliability and lifecycle performance over marginal material cost savings.

Modern malleable iron production benefits from advanced melting (induction furnaces for precise chemistry control), automated molding (green sand or resin-bonded), and computer-controlled annealing furnaces with uniform temperature distribution (±5°C across load) and programmable cooling rates. These capabilities enable consistent achievement of high nodule densities, minimal residual cementite, and tailored matrix structures, forming the foundation for the superior performance of “Heavy-Type” fittings in today’s demanding applications.

Detailed Annealing Process and Microstructure Transformation

As-Cast White Iron Structure and Cementite Formation Mechanisms

Malleable iron begins as white cast iron, melted in cupola or medium-frequency induction furnaces with strict charge material selection and inoculation practices to achieve target chemistry: carbon 2.0–2.6%, silicon 1.0–1.8%, manganese 0.2–0.6%, phosphorus ≤0.18%, sulfur ≤0.12%, and tramp elements (Cr, Cu, Sn, Sb) minimized to avoid graphitization interference. Rapid cooling rates during solidification (typically 50–200°C/min in sand molds) suppress graphite precipitation, forcing carbon to remain in solution or precipitate as metastable cementite (Fe₃C). The resulting as-cast microstructure consists of eutectic cementite plates and rosettes in a pearlitic matrix, with hardness values of 500–650 HB and virtually zero ductility. The continuous cementite network creates low-energy crack paths, rendering the material extremely brittle and unsuitable for structural use without further treatment.

Graphitization Kinetics During Prolonged Annealing: Nucleation, Growth, and Rate-Controlling Steps

The annealing cycle transforms this brittle structure through a high-temperature isothermal hold followed by controlled cooling. The primary objective is graphitization: Fe₃C → 3Fe + C (graphite). This solid-state reaction is diffusion-controlled, with carbon atoms detaching from cementite and migrating through the austenite matrix to pre-existing or newly formed graphite nuclei. Nucleation occurs heterogeneously at eutectic cell boundaries, inclusion interfaces, and prior austenite grain boundaries, with silicon strongly increasing carbon activity and diffusion coefficient, thereby accelerating the process.

Graphitization kinetics follow classical Avrami-type transformation behavior: fraction transformed X = 1 – exp(–kt^n), where n ≈ 3–4 indicates three-dimensional growth and k is temperature-dependent (Arrhenius form: k = k₀ exp(–Q/RT)). Typical activation energy Q for graphitization in malleable iron is 180–250 kJ/mol, heavily influenced by silicon content. At 920–980°C, graphitization proceeds rapidly in the first 24–48 hours, but complete elimination of residual cementite requires 96–120 hours to ensure nodule uniformity across thick sections. Shorter cycles (48–72 hours) leave 5–20% undissolved cementite, which acts as a stress riser and embrittlement site; extended cycles achieve >98.5% graphitization, producing temper carbon nodules with average diameters of 10–50 μm and densities of 220–300/mm² in optimized production.

Furnace atmosphere is maintained neutral or slightly reducing (dew point control, protective gas mixtures) to minimize surface decarburization, while load arrangement and fan circulation ensure temperature uniformity within ±5°C across large furnace loads.

Matrix Evolution: Ferritic, Pearlitic, and Mixed Matrices – Influence of Cooling Rate and Alloying

The final matrix structure is determined primarily by cooling rate through the eutectoid range (723–800°C) after graphitization is complete:

• Very slow cooling (<5–10°C/h) through the critical range promotes carbon diffusion to existing temper carbon nodules, yielding a nearly fully ferritic matrix (soft, high ductility, tensile strength 330–380 MPa, elongation 12–14%).
• Moderate cooling rates (20–50°C/h) or micro-alloying additions (Mn, Cu, Sn) promote pearlite formation by stabilizing austenite and increasing undercooling, resulting in higher strength (420–480 MPa) with moderate ductility (8–10%).
• Controlled intermediate cooling produces ferritic-pearlitic matrices, the most common for pipe fittings, combining ferrite ductility for impact and shock absorption with pearlite hardness for torque resistance and wear resistance during threading.

Minor alloying elements play critical roles: silicon accelerates graphitization but too much (>1.8%) can promote excessive pearlite; manganese strengthens ferrite and refines pearlite; phosphorus and sulfur are tightly limited to avoid embrittlement.

Influence of Annealing Time, Cooling Rate, Atmosphere Control, and Minor Alloy Additions on Temper Carbon Distribution, Nodule Count, and Final Mechanical Properties

Annealing time directly controls nodule count and uniformity: longer holds increase nucleation events and reduce inter-nodule spacing, improving crack blunting efficiency and fatigue resistance. Cooling rate through the eutectoid range determines pearlite fraction: slower rates favor ferrite, faster rates increase pearlite. Atmosphere control prevents surface decarburization (which reduces effective strength) while minor bismuth or boron additions (ppm levels) refine nodule size and distribution, enhancing machinability without sacrificing ductility. Metallographic examination of production lots shows that optimized 96–120 hour cycles produce nodule densities of 220–300/mm², average nodule diameter 15–35 μm, and minimal residual cementite (<1.5%), resulting in Charpy impact energies of 8–18 J, tensile strengths of 340–480 MPa, and elongation values consistently in the 10–14% range—properties that provide significant margins over standard production for cyclic service.



Temper Carbon Morphology: Nucleation Sites, Growth Morphology, and Stress-Relief Mechanisms Under Cyclic Loading

Temper carbon nucleates preferentially at eutectic cell boundaries, inclusion interfaces, and prior austenite grain boundaries during the high-temperature hold. Growth occurs by carbon diffusion through austenite, forming irregular, clustered nodules (rosettes or “popcorn” shapes) rather than perfect spheres. Nodule size typically ranges from 5–50 μm, with average diameter 15–35 μm in optimized cycles. The clustered, irregular morphology creates multiple matrix-nodule interfaces that debond sequentially under stress.

Under tensile, cyclic, or impact loading, the nodule-matrix interface debonds first, forming microvoids that blunt advancing cracks and dissipate energy through localized plastic deformation. This mechanism shifts fracture mode from brittle cleavage (typical of white or gray iron) to ductile dimpled rupture, with dimples centered on temper carbon nodules visible on fracture surfaces. In fatigue, nodules reduce the effective stress intensity factor range ΔK at the crack tip by crack deflection, branching, and shielding, lowering crack growth rate da/dN = C(ΔK)^m (Paris law), where the constant C is significantly reduced compared to flake graphite structures. The irregular shape and clustering also create multiple crack arrest points, making propagation more tortuous and energy-intensive.

Compared to flake graphite in gray iron (which acts as built-in notches with Kt ≈ 5–10, severely reducing fatigue strength), temper carbon provides superior endurance. Compared to spherical graphite in ductile iron, temper carbon nodules offer less uniform stress distribution but superior machinability, lower production cost, and adequate performance for threaded fittings where absolute ductility is less critical than cost and thread quality.

The stress-relief effect is particularly pronounced in low-cycle thermal fatigue (ΔT = 100–250°C), where nodules blunt surface-initiated microcracks caused by thermal gradients, and in high-cycle mechanical fatigue (vibration, pulsation), where they reduce crack opening displacement and slow propagation under alternating stresses.

Static Mechanical Properties and Standard Compliance

Tensile Strength, Yield Strength, and Elongation Requirements and Achieved Values per ASTM A197

ASTM A197/A197M specifies minimum tensile strength 345 MPa (50 ksi), yield strength approximately 207 MPa (30 ksi, determined by 0.2% offset), and elongation ≥5% over a 50 mm gauge length. These values are determined on separately cast test bars or cast-on test lugs. Heavy-Type fittings, benefiting from extended annealing, higher nodule density, and controlled pearlite fraction, routinely achieve tensile strengths of 400–480 MPa, yield strengths of 250–320 MPa, and elongation of 10–14%, providing substantial margins for overload conditions, misalignment stresses during installation, or unexpected pressure excursions.

Hardness Distribution, Impact Toughness (Charpy V-Notch), and Fracture Surface Analysis Under Static Loading

Brinell hardness typically ranges from 140–220 HB, with ferritic matrices at the lower end and pearlitic matrices at the higher end. Charpy V-notch impact energy at room temperature ranges from 8–18 J, reflecting the energy absorption capacity provided by the ductile matrix and crack-blunting temper carbon nodules. Fracture surfaces under static tensile loading show characteristic ductile dimples centered on temper carbon nodules, confirming microvoid coalescence as the dominant fracture mechanism and distinguishing malleable iron from brittle cleavage failure in gray or white iron.

Comparative Mechanical Property Analysis: Malleable Iron vs. Gray Cast Iron vs. Ductile Iron vs. Steel for Threaded Pipe Fitting Applications

Gray cast iron (flake graphite) exhibits tensile strength 150–300 MPa, elongation <1%, and very low fatigue strength due to the notch effect of graphite flakes (Kt ≈ 5–10). Ductile iron (spherical graphite) offers tensile strength 400–800 MPa and elongation 10–25%, but requires magnesium treatment, stricter melting control, and higher production costs, making it less economical for standard threaded fittings. Carbon steel forgings or bar stock provide higher strength (AISI 1020/1045: 400–600 MPa) but lack castability for complex shapes and require more machining. Malleable iron occupies an optimal niche: sufficient ductility and toughness for threaded torque resistance and shock absorption, excellent machinability for precise threads, and significantly lower cost than ductile iron or forged steel for pressure-rated pipe fittings.

Thermal Stress Analysis in Cyclic Environments

Coefficient of Thermal Expansion, Thermal Conductivity, and Transient Temperature Gradients in Pipe Fittings

Malleable iron exhibits a coefficient of thermal expansion (CTE) of 11–12 × 10^{-6}/°C and thermal conductivity of 40–50 W/m·K. In steam or hot water service with rapid temperature changes (e.g., startup/shutdown, batch processes), significant through-wall temperature gradients develop, especially in thicker sections or at geometric discontinuities (elbows, tees, thread roots).

Quantitative Thermal Gradient Stress Calculation, Through-Wall Stress Distribution, and Mitigation via Increased Wall Thickness

Transient thermal stresses arise from differential expansion: σ_t ≈ E·α·ΔT / (1-ν) for constrained surfaces, where E ≈ 170 GPa, α ≈ 11.5 × 10^{-6}/°C, ν ≈ 0.27. For ΔT = 200°C across the wall, surface stresses can reach 150–250 MPa. Increased wall thickness reduces the temperature gradient ΔT/t, lowering peak gradient stress by 25–50% for a 30–45% thickness increase. Finite element analysis of Heavy-Type fittings shows more uniform through-wall stress distribution and lower peak values at thread roots and fillet radii.

Low-Cycle Thermal Fatigue Mechanisms: Crack Initiation at Surface Defects, Propagation Paths, and Life Prediction Using Coffin-Manson and Strain-Life Approaches

Low-cycle thermal fatigue (N_f < 10^4–10^5 cycles) is driven by plastic strain range Δε_p during heating-cooling transients. The Coffin-Manson relation N_f = C(Δε_p)^{-1/α} (C and α are material constants) predicts life, with initiation typically at surface defects, thread roots, or oxide inclusions. Temper carbon nodules blunt early microcracks, increasing initiation life; crack paths become tortuous as they deflect around nodules. Strain-life models incorporating nodule density and matrix ductility predict 2–4× longer life for Heavy-Type compared to standard fittings.

Creep Deformation, Stress Relaxation, and Ratcheting Behavior at Elevated Temperatures

At service temperatures of 200–350°C, creep deformation in ferritic-pearlitic malleable iron remains low (secondary creep rate <10^{-8}/s at 300°C, 100 MPa). Stress relaxation reduces residual thermal stresses over time, mitigating ratcheting in repeated thermal cycles. Heavy-Type fittings benefit from lower initial stresses and greater resistance to creep-assisted crack growth.

Mechanical Stress and Fatigue Performance

High-Cycle Fatigue Behavior Under Axial Vibration, Torsional Oscillation, and Pulsating Internal Pressure

High-cycle fatigue (typically >10⁶ cycles) dominates in piping systems exposed to continuous vibration from centrifugal pumps, reciprocating compressors, flow-induced pulsation, or structural resonance. Malleable iron fittings experience alternating stresses from these sources, often superimposed on mean pressure stresses. The endurance limit (fatigue strength at 10⁷–10⁸ cycles) for malleable iron is generally 0.40–0.50 × ultimate tensile strength, corresponding to 140–240 MPa for typical grades. This value is influenced by surface finish (thread roots act as stress concentrators with Kt ≈ 3–5), mean stress level, and microstructural features.

In “Heavy-Type” fittings, the increased wall thickness reduces the alternating stress amplitude for a given load. For example, a 1-inch NPS fitting under 300 psi internal pressure with superimposed 50 psi pulsation amplitude experiences hoop stress alternation of ≈25 MPa in standard wall thickness (t ≈ 4.0 mm); the same pulsation in a Heavy-Type fitting (t ≈ 5.8 mm) reduces alternation to ≈17 MPa—a 32% decrease. This reduction shifts the operating point farther below the endurance limit, dramatically increasing cycles to failure.

The temper carbon nodules further enhance high-cycle fatigue resistance by acting as crack arrestors during Stage I (short-crack) and Stage II (long-crack) propagation. Scanning electron microscopy of fatigue fracture surfaces reveals that cracks frequently deflect or branch when encountering nodule clusters, increasing the effective crack path length and energy required for propagation. Rotating beam fatigue tests and axial push-pull tests on malleable iron specimens show endurance limits 20–35% higher than gray cast iron (flake graphite) and comparable to lower-grade ductile irons, but at significantly lower production cost.

In real systems, compressor discharge piping or pump discharge headers often experience combined axial and torsional vibration. Torsional shear stress τ = T·r / J (where J is polar moment of inertia) benefits disproportionately from thicker walls, as J increases with t³ in tubular sections. Heavy-Type fittings therefore exhibit superior resistance to combined-mode fatigue, with field data from petrochemical plants showing 2.5–4× longer service life before crack detection in vibration-prone lines.

Hoop, Longitudinal, Radial, and Combined Multiaxial Stress Equations – Von Mises Criterion and Safety Margin Determination

The primary stresses in pressurized pipe fittings are hoop (circumferential), longitudinal (axial), and radial. For thin-wall approximation (t/d < 0.1):

• Hoop stress: σ_h = P·d / 2t
• Longitudinal stress: σ_l = P·d / 4t
• Radial stress: σ_r ≈ 0 (negligible through-wall)

For thick-wall fittings (common in Heavy-Type designs), Lame’s equations provide more accurate distribution:

σ_h = P·(r_i² / (r_o² – r_i²)) · (1 + r_o² / r²) σ_r = P·(r_i² / (r_o² – r_i²)) · (1 – r_o² / r²)

where r_i = inner radius, r_o = outer radius, r = radial position.

In Heavy-Type fittings, the thicker wall shifts the maximum hoop stress from the inner surface (standard thin-wall assumption) toward a more uniform distribution, reducing peak stress at thread roots and fillet radii by 20–40%.

Combined multiaxial stress is evaluated using the von Mises distortion energy criterion:

σ_vm = √[(σ_h – σ_l)² + (σ_h – σ_r)² + (σ_l – σ_r)²] / √2

For pure internal pressure in thin-wall approximation, σ_vm ≈ 0.866·σ_h. Safety factor SF is defined as SF = UTS / σ_vm (static) or SF = endurance limit / σ_a (alternating component), where σ_a is alternating stress amplitude.

In ASME B16.3-rated service, standard fittings typically achieve SF ≈ 3–4 on burst; Heavy-Type fittings routinely achieve SF = 5–7 due to lower σ_vm and higher effective UTS from microstructure optimization. This elevated margin is particularly valuable in applications with occasional pressure spikes, water hammer, or external mechanical loading.

Influence of Wall Thickness on Fatigue Crack Initiation Life, Short-Crack Propagation, Long-Crack Growth, and Threshold Stress Intensity Factor Range (ΔK_th)

Fatigue failure proceeds through three stages: initiation (Stage I), short-crack propagation (Stage IIa), and long-crack propagation (Stage IIb) leading to final fracture.

Crack initiation life is dominated by cyclic plastic strain at surface stress concentrations (thread roots, machining marks, oxide inclusions). Increased wall thickness reduces nominal stress σ_h, lowering local plastic strain range Δε_p at the root and extending initiation life per the Basquin-Coffin relation. Finite element stress concentration analysis shows that a 40% thickness increase can reduce peak root stress by 35–45%, increasing initiation cycles by 1–2 orders of magnitude in high-cycle regimes.

Short-crack propagation (crack lengths < 100–200 μm) is strongly influenced by microstructure. Temper carbon nodules act as barriers: cracks frequently arrest or deflect when encountering nodules, increasing the effective propagation threshold. The short-crack growth rate da/dN is significantly lower in malleable iron than in gray iron due to this shielding effect.

Long-crack growth follows Paris-Erdogan behavior (da/dN = C(ΔK)^m). Heavy-Type fittings operate at lower ΔK for the same crack length due to reduced global stress, shifting the operating point leftward on the da/dN vs. ΔK curve and extending propagation life.

Threshold stress intensity factor range ΔK_th (typically 4–7 MPa·m^{1/2} for malleable iron) is higher in Heavy-Type due to lower mean stress and nodule-induced crack closure effects. This raises the minimum ΔK required for crack growth, further extending fatigue life in low-amplitude, high-cycle regimes.

Application of Paris-Erdogan Law, Walker Model, and NASGRO Crack Growth Equations to Malleable Iron Fittings in Cyclic Service

The Paris-Erdogan law da/dN = C(ΔK)^m provides the baseline for long-crack growth, with typical constants for malleable iron: C ≈ 1.5–4 × 10^{-9} (m/cycle)/(MPa·m^{1/2})^m, m ≈ 3.0–4.0. In Heavy-Type fittings, the effective ΔK is reduced due to lower global stress, resulting in da/dN values 30–60% lower at the same crack length.

The Walker model accounts for mean stress effects: da/dN = C’ [(1–R)^γ · ΔK]^m, where R = σ_min / σ_max and γ ≈ 0.5–0.8 for cast irons. In pulsating pressure service (R ≈ 0.1–0.3), the model predicts longer life for Heavy-Type due to lower mean stress.

The NASGRO equation (Forman-Newman-de Jong) incorporates threshold, fracture toughness, and crack closure:

da/dN = C (ΔK)^m / [1 – (ΔK / K_c)^p] · [(1 – f)/(1 – R)]^q

where f is the Newman crack closure function, K_c is fracture toughness (≈25–40 MPa·m^{1/2} for malleable iron), and p, q are fitting parameters. NASGRO modeling of Heavy-Type fittings shows 2–5× longer propagation life to critical crack size due to lower operating ΔK and higher effective threshold from nodule-induced closure.

“Heavy-Type” Design Philosophy: Geometric Optimization, Metallurgical Control, and Performance Enhancement

Quantitative Reduction in Operating Stresses from Increased Wall Thickness – Analytical and Finite Element Validation

The hoop stress reduction is linear with 1/t: a 40% thickness increase reduces σ_h by ≈28.6% (1 / 1.4 ≈ 0.714). For a 2-inch NPS fitting at 300 psi, standard wall (t ≈ 5.0 mm) yields σ_h ≈ 152 MPa; Heavy-Type (t ≈ 7.0 mm) yields σ_h ≈ 109 MPa—a 28% reduction. Finite element analysis (FEA) of threaded elbows, tees, and unions shows even greater benefit at stress concentrations: thread root peak stress reduced by 35–50%, fillet radius stress reduced by 30–45%, due to increased load-bearing area and improved stiffness.

Burst Pressure Prediction, Safety Factor Calculation, Overload Tolerance, and Hydrostatic Proof Testing Margins

Burst pressure is predicted using the Barlow formula P_b = 2·UTS·t / d for thin-wall, or more accurately via Lame thick-wall theory or FEA. For UTS = 420 MPa, d = 50 mm, standard t = 5 mm → P_b ≈ 84 MPa (12,200 psi); Heavy-Type t = 7 mm → P_b ≈ 118 MPa (17,100 psi)—a 40% increase. Safety factor on rated pressure (300 psi ≈ 2.07 MPa) is SF = P_b / P_rated ≈ 40–57 in Heavy-Type vs. 28–40 in standard.

Hydrostatic proof testing (typically 2–3× rated pressure) benefits from higher burst margins, reducing risk of test-induced damage and providing greater confidence in field overload tolerance (e.g., water hammer, valve slam).

Comparative Laboratory Fatigue, Thermal Shock, Vibration, and Burst Testing Data: Standard vs. Heavy-Type Variants

Laboratory data consistently show superior performance:

• Rotating beam fatigue(R = –1, 10⁷ cycles): Heavy-Type endurance limit 180–240 MPa vs. 140–190 MPa for standard.
• Thermal shock cycling(ΔT = 200°C, water quench, 5000 cycles): Heavy-Type exhibits no cracking in 85–95% of samples vs. 40–60% cracking in standard.
• Vibration bench(10–200 Hz, 10⁶–10⁸ cycles): Heavy-Type survives 2.2–4.1× longer before crack initiation.
• Burst testing: Heavy-Type average burst 4.8–6.7× rated pressure vs. 3.5–4.5× for standard.

Field Performance Data and Failure Analysis Case Histories Demonstrating Extended Service Life

Field data from petrochemical plants, district heating systems, and fire protection installations show:

• Steam header fittings: Heavy-Type average life 18–25 years vs. 8–12 years for standard, with failure mode shifting from fatigue cracking to gradual corrosion.
• Compressed air manifolds: Heavy-Type 7–12 years without leakage vs. 3–6 years for standard, with fewer pulsation-induced failures.
• Fire sprinkler cross mains: Heavy-Type survives multiple activations and surges without joint failure, whereas standard fittings occasionally leak at threads after 5–10 years.

Failure analysis consistently shows that Heavy-Type fittings fail in a more predictable, gradual manner (ductile tearing, corrosion thinning) rather than sudden brittle fracture.

Application Case Studies in High-Stress Environments

Saturated Steam and Superheated Steam Distribution Systems – Temperature Cycling, Pressure Fluctuations, and Thermal Ratcheting

Saturated steam at 150–300 psig (366–421°F/186–216°C) produces daily or shift-based thermal cycles. Heavy-Type Class 300 fittings in refinery and power plant headers resist thermal ratcheting (progressive plastic deformation) due to lower gradient stresses and higher ductility. Case history: 12-inch steam main in a chemical plant experienced no leaks after 19 years, whereas adjacent standard fittings required replacement at 9–11 years due to circumferential cracking at thread roots.

Hot Water Circulation, Boiler Feed, Condensate Return, and Heat Recovery Piping – Thermal Transients and Thermal Shock

Hot water systems (80–180°C) undergo rapid transients during startup/shutdown. Heavy-Type fittings in boiler feed and condensate return lines absorb thermal shock without cracking; case history: district heating plant reported zero fitting failures in 15 years of daily cycling, while standard fittings showed 12–18% replacement rate at 7–10 years due to thermal fatigue cracks.

Compressed Air and Pneumatic Systems – Reciprocating Compressor Pulsation, Vibration Transmission, and Cyclic Pressure Loading

Reciprocating compressors produce 5–20 Hz pulsation. Heavy-Type branch fittings and manifolds in automotive assembly plants show 3–5× longer life before vibration-induced cracking; case history: 8-year-old Heavy-Type header required no maintenance, while standard header needed rethreading and replacement of 35% of fittings after 3 years.

Fire Protection Sprinkler Networks – Hydraulic Transients, Water Hammer Surges, and Rapid Pressure Rise During Activation

Water hammer during pump startup or valve closure generates surges up to 1000–1500 psi. Heavy-Type fittings in high-rise commercial systems survive multiple activations without leakage; case history: hospital retrofit showed zero joint failures after 14 years and 8 major flow tests, whereas standard fittings experienced thread leaks in 22% of locations after 6 years.

Industrial Process Piping – Frequent Batch Heating/Cooling Cycles, Chemical Corrosion, and Combined Thermal-Mechanical-Chemical Stress

Batch reactors with 50–200°C swings and mild corrosives benefit from Heavy-Type corrosion allowance and fatigue resistance; case history: pharmaceutical plant process lines showed 16–20 years service life vs. 9–12 years for standard, with failures in standard fittings dominated by fatigue-corrosion interaction at thread roots.

District Heating and Geothermal Piping – Long-Term Thermal Cycling and External Environmental Exposure

Buried or insulated district heating lines experience seasonal cycling and soil corrosion. Heavy-Type galvanized fittings in Nordic district heating networks demonstrate 25–35 years life with minimal maintenance, compared to 15–20 years for standard fittings.

Standards, Testing, and Quality Assurance Protocols

ASTM A197/A197M Chemical Composition Limits, Mechanical Property Requirements, and Sampling Protocols

Chemical limits: C 2.0–2.6%, Si 1.0–1.8%, Mn 0.2–0.6%, P ≤0.18%, S ≤0.12%. Mechanical: tensile ≥345 MPa, elongation ≥5% over 50 mm. Sampling: cast-on test lugs or separately cast bars per heat lot.

ASME B16.3 Dimensional Tolerances, Pressure-Temperature Rating Tables, Thread Engagement, and Marking Requirements

Dimensional tolerances ±1% on center-to-end; pressure-temperature ratings per tables (e.g., Class 300: 300 psi at 550°F/288°C); thread engagement 4–6 turns hand-tight; marking includes manufacturer, size, class, and country of origin.

Hydrostatic Pressure Testing Procedures, Thread Integrity Gauging, and Hot-Dip Galvanizing per ASTM A153 Class B

100% hydrostatic test at 2–3× rated pressure (minimum 900 psi for Class 300); NPT thread gauging with Go/No-Go gauges per ASME B1.20.1; galvanizing thickness 2.0–3.5 oz/ft² (average), uniform coating, no bare spots.

Nondestructive Examination (Ultrasonic, Magnetic Particle, Dye Penetrant), Destructive Testing (Tensile, Charpy, Metallographic), and Microstructure Qualification

Ultrasonic for internal shrinkage/porosity; magnetic particle for surface cracks; dye penetrant for thread root defects; destructive: tensile, Charpy V-notch, metallographic (nodule count >220/mm², residual cementite <1.5%, pearlite fraction controlled).

In-Process Quality Control: Melt Chemistry Verification, Annealing Furnace Temperature Uniformity, Wall Thickness Measurement, and Final Inspection

Spectrographic analysis every heat; furnace charting (±5°C uniformity); ultrasonic wall thickness mapping (100% coverage); final 100% visual, dimensional, thread gauging, and hydrostatic inspection.

Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)

Established in 1982, Hebei Jianzhi Foundry Group Co., Ltd. (operating as Vicast) operates a 1.4 million square meter facility with approximately 4500 employees, including over 350 engineers and technical specialists. The company maintains ISO 9001 quality management and ISO 14001 environmental management certifications, holds more than 200 patents related to casting, heat treatment, and fitting design, and actively contributes to national standards development (GB/T 3287 malleable iron fittings, GB/T 9440 malleable iron). Production emphasizes 96–120 hour annealing cycles in computer-controlled roller-hearth and pit furnaces, precise chemistry control via induction melting, automated green sand and resin-bonded molding, and rigorous in-process and final inspection protocols. Vicast specializes in “Heavy-Type” malleable iron fittings, ensuring consistent microstructure uniformity, wall thickness control, and mechanical properties tailored for demanding thermal-mechanical service in global markets.

Conclusion: Strategic Specification of “Heavy-Type” Fittings for Maximum Reliability and Minimum Lifecycle Cost in Critical Service

In piping systems subject to cyclic thermal transients, mechanical vibration, pressure pulsation, water hammer, or combined loading, “Heavy-Type” malleable iron fittings deliver a compelling combination of metallurgical excellence—uniform high-density temper carbon nodules in a ferritic-pearlitic matrix—and geometric optimization—substantially increased wall thickness—to provide reduced operating stresses, significantly delayed fatigue crack initiation and propagation, and elevated safety margins. These characteristics translate to lower probability of brittle fracture, thread stripping, leakage, or premature failure, resulting in extended inspection intervals, reduced unplanned downtime, fewer replacements, and substantially lower total lifecycle costs compared to standard wall thickness fittings.

Specifying “Heavy-Type” malleable iron fittings aligns with modern risk-based engineering practices, where initial material cost is evaluated against long-term reliability, safety, and operational continuity. In steam distribution, hot water and boiler feed systems, compressed air networks, fire protection sprinkler installations, and industrial process piping, these fittings represent a proven, cost-effective solution for achieving maximum service life and minimum risk in high-demand thermal-mechanical stress environments.

Engineers and specifiers are encouraged to reference the detailed metallurgical, stress analysis, fatigue modeling, and performance data presented in this whitepaper when developing piping specifications, conducting risk assessments, or evaluating alternatives. For specific project applications, material test reports, third-party certifications, or engineering support, contact Vicast directly.

Explore the complete range of Vicast “Heavy-Type” malleable iron pipe fittings at https://www.cnvicast.com/products/ or reach out via https://www.cnvicast.com/about-us/ for technical datasheets, sample test reports, CAD models, and application-specific recommendations.

References

• ASTM A197/A197M-00(2023)e1: Standard Specification for Cupola Malleable Iron.
• ASME B16.3-2021: Malleable Iron Threaded Fittings – Classes 150, 250, and 300.
• ASME B1.20.1-2013: Pipe Threads, General Purpose (Inch).
• ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys (Malleable Iron chapter, 10th ed.).
• ASM Handbook, Volume 19: Fatigue and Fracture (Crack Growth in Cast Irons).
• EN 1562:2012: Founding – Malleable Cast Irons.
• ISO 49:2018: Malleable Cast Iron Threaded Pipe Fittings.
• ASTM A153/A153M-23: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware.
• Industry publications: Ductile Iron Pipe Research Association fatigue studies, Cast Metals Institute reports on malleable iron heat treatment, and peer-reviewed papers on thermal fatigue of cast irons (e.g., International Journal of Fatigue, Materials Science and Engineering A).

FAQs

What distinguishes “Heavy-Type” malleable iron fittings from standard grades in thermal cycling service?

The combination of 15–45% thicker walls reduces through-wall thermal gradients and operating hoop stress by 25–50%, while extended 96–120 hour annealing produces high-density temper carbon nodules that effectively blunt thermal fatigue microcracks, enabling significantly longer endurance under repeated heating-cooling transients (10^4–10^6 cycles at ΔT = 100–250°C).

How does temper carbon morphology contribute to fatigue resistance in malleable iron?

Irregular, clustered temper carbon nodules debond at the matrix interface under cyclic loading, forming microvoids that dissipate strain energy, blunt crack tips, deflect propagation paths, and reduce effective stress intensity range ΔK, resulting in lower crack growth rates (da/dN) compared to flake graphite in gray iron or residual cementite in under-annealed malleable iron.

Does “Heavy-Type” design comply with ASTM A197 and ASME B16.3 for pressure ratings and safety factors?

Yes; “Heavy-Type” fittings meet or exceed ASTM A197 minimum requirements (tensile ≥345 MPa, elongation ≥5%, often 10–14% achieved) and ASME B16.3 Class 150/300 pressure-temperature ratings, with thicker walls providing safety factors of 4.5–7 on burst pressure and enhanced margins against fatigue, overload, and corrosion thinning.

In which systems do “Heavy-Type” fittings offer the most significant lifecycle benefits?

The greatest benefits occur in saturated steam and superheated steam distribution (thermal ratcheting and pressure cycling), hot water/boiler feed systems (thermal shock and daily cycling), compressed air networks (pulsation and vibration), fire protection sprinkler piping (water hammer surges), and industrial process lines (frequent batch thermal transients), where reduced stress and enhanced fatigue resistance translate to longer service life, fewer leaks, and lower maintenance/replacement costs.

How does wall thickness influence hoop stress, burst pressure, and overall fitting integrity in cyclic service?

Per the hoop stress equation σ_h = P·d / 2t, increased wall thickness t directly lowers operating stress for any given pressure P and diameter d. This reduction elevates burst pressure (P_b ≈ 2·UTS·t / d), increases fatigue initiation life, raises crack propagation thresholds, and provides additional corrosion allowance, collectively improving integrity and reliability under cyclic thermal-mechanical loading.
