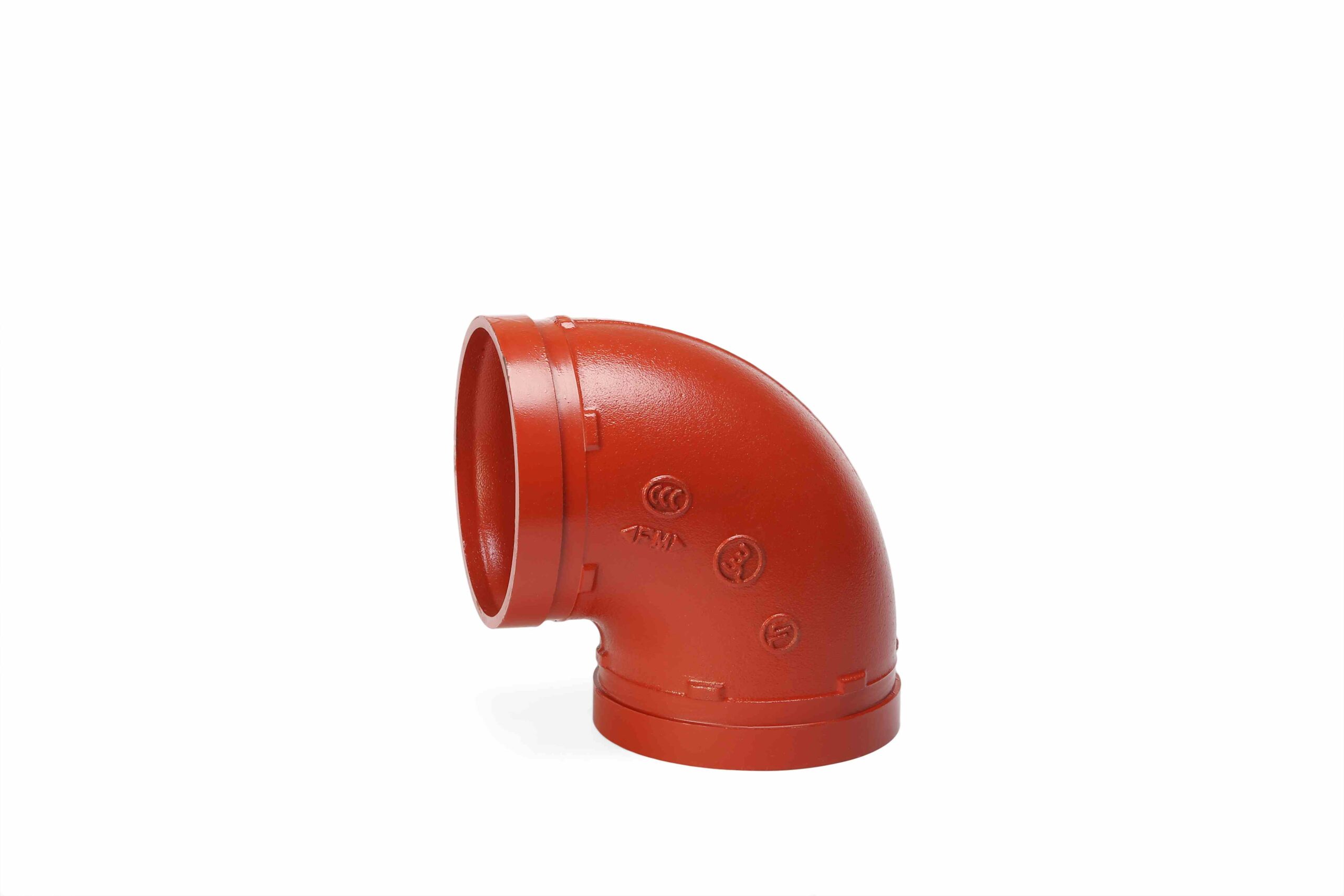

Inaccurate Pipe Cutting and End Preparation

In retrofit jobs, poor pipe cutting leads to rough ends. These rough ends make it hard for couplings to fit right. If the grooves do not match—maybe they are too deep or not deep enough—the coupling won’t sit properly. This results in side shifts or angle problems. A grooved flange works based on several things. For example, it depends on the material quality and how deep the grooves are. When grooves get cut wrong, the seal between pipes might break under pressure. Also, dirt or rough edges on pipe ends can stop the gasket from pressing fully. That weakens the seal.

Improper Support and Hanger Placement

Pipe supports help keep joints in line during use. Wrong hanger spacing causes bending. This bending creates angle issues at couplings. Supports that carry too much weight focus stress in certain spots. That speeds up wear near grooved joints. Plus, if thermal growth isn’t handled by flexible supports, slow changes happen over time. These changes twist the alignment and add mechanical strain.

Retrofitting Constraints and Legacy System Issues

Old setups often limit space. This makes it tough to route pipes or space them ideally. Systems from the past followed different rules. Those rules do not match today’s grooved coupling limits. So, fitting in new parts gets tricky. Our rigid grooved coupling provides a robust and efficient solution for connecting pipes in a variety of applications, including HVAC, fire protection, and industrial systems. Tight spaces in retrofits also hinder exact assembly angles. You see this a lot in crowded mechanical rooms or underground work.

How Can Engineers Diagnose Grooved Joint Misalignment Effectively?

Finding misalignment early matters a lot. It stops leaks and stops system downtime after startup. Engineers use simple visual checks and better tools to check grooved joint strength during retrofit steps.

Visual and Dimensional Inspection Techniques

Looking things over by eye is the basic way to spot problems. Inspectors check coupling gaps for uneven spaces or twists around the edge. Laser tools help measure side shifts and angle differences between pipes accurately. Even gasket pressure across the joint shows good seating. If something looks off, it points to bad fitting or dirt on seal areas.

Pressure Testing and Operational Monitoring

Water pressure tests check if joints hold up under stress. Leaks in these tests often mean alignment mistakes or gasket damage. Sensors for vibration near couplings find weak spots once the system runs. Watching temperature changes ongoing can show shifts from growth. These shifts slowly change alignment as time passes.

What Are the Proven Methods to Fix Grooved Joint Misalignment?

After spotting misalignment, fixes aim to bring back the right shape. They do this without hurting strength or stopping work too much.

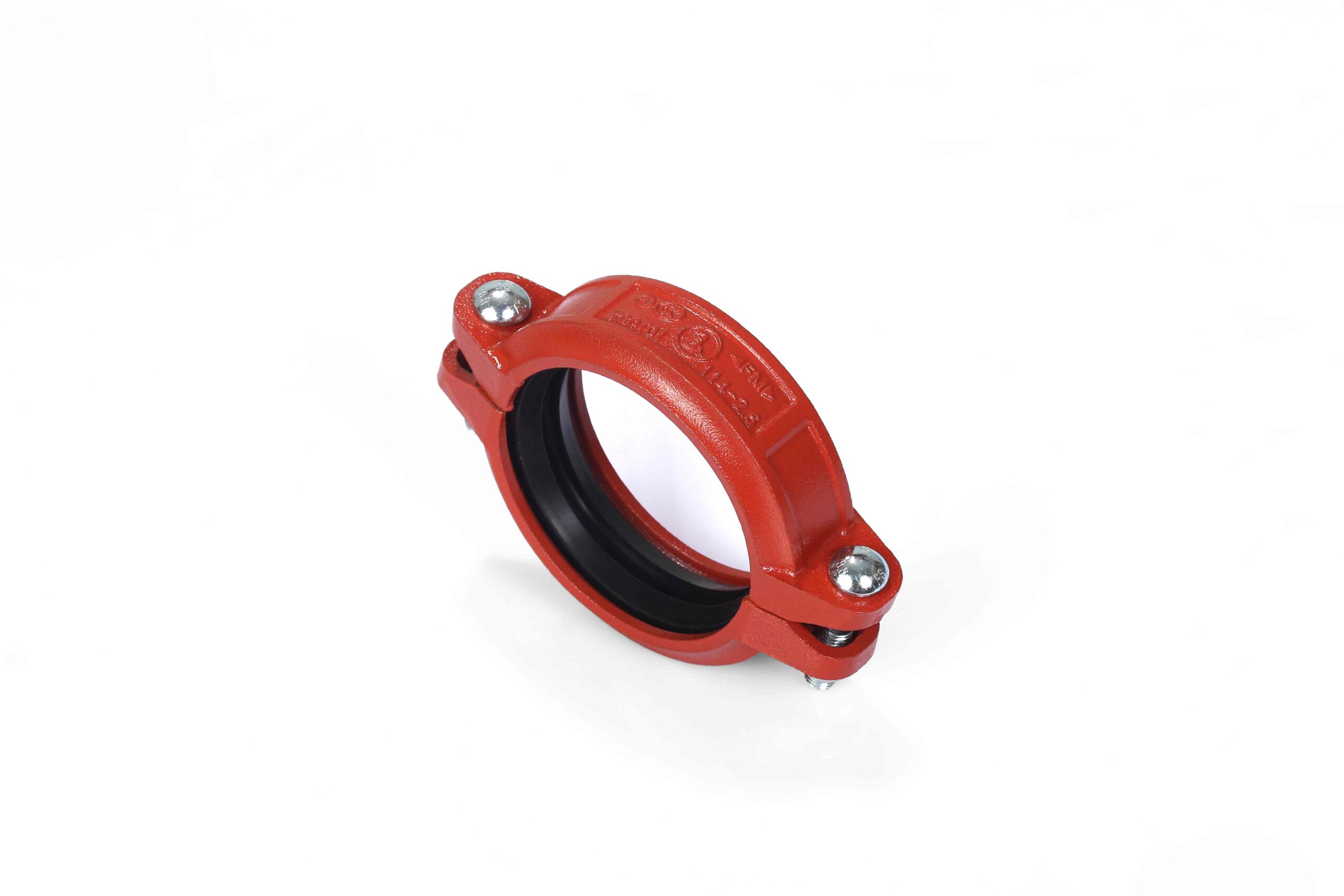

Adjusting Coupling Position and Orientation

Fixing starts by easing couplings a bit. Then, move pipes to fit maker limits. Re-place gaskets evenly. After that, tighten bolts in a cross pattern for even pressure. Use special gauges to check how deep the coupling engages. This makes sure couplings like Our Adaptor Flange provides a robust and efficient solution for connecting pipes in a variety of applications, including HVAc, fire protection, and industrial systems. work well with changing pressures.

Reworking Pipe Supports and Alignment Controls

When bending affects the whole system, engineers redo hanger weight calculations. They base this on new pipe paths to spread forces evenly. Add supports that adjust easily. These let you tweak during fixes without taking apart big sections. In places with heat changes—like HVAC or water systems—extra flexible joints help. They cut down on movement effects after the retrofit.

Implementing Preventive Design Improvements for Future Retrofits

Success in later retrofits relies on planning ahead. Set stricter cutting limits. This matches new parts like Our Grooved Mechanical Tee Threaded provides a robust and efficient solution for connecting pipes in a variety of applications, including HVAc, fire protection, and industrial systems. Software for 3D models lets you test setups before real work. It spots clash areas or shift dangers early. Train install teams on torque rules too. This cuts down on differences in how things assemble at various sites.

Why Is Supplier Selection Critical for Reliable Grooved Pipe Systems?

Good installation matters, but lasting strength depends on part quality and steady supply. Picking makers who follow global rules ensures even work from all fittings in retrofit tasks.

Hebei Jianzhi Foundry Group Co., Ltd — A Trusted Source for Grooved Pipe Solutions

Hebei Jianzhi Foundry Group Co., Ltd shows top skill in making grooved pipes. They use exact casting methods and firm quality checks. The firm makes strong couplings for tough retrofit needs. These needs focus on exact alignment. Their know-how matches big names like Vicast®. That brand’s items last in changing pressure setups. This comes from meeting ASTM A536 Grade 654512 material rules and ISO6182 design standards.

Key Takeaways from Managing Grooved Joint Misalignment in Retrofits

Handling grooved joint misalignment well needs a full plan. It mixes good finding methods with smart fixes. By fixing support setups and checking part quality from solid suppliers like Hebei Jianzhi Foundry Group Co., Ltd., engineers keep the structure solid. They do this through all retrofit work. At the same time, they lower risks of downtime from fix steps.

FAQs

What tolerance levels are acceptable for grooved joint alignment during retrofits?

Allowed limits change by coupling kind. But they usually permit small angle shifts—often under one degree. They also allow short side gaps between pipe ends. These stay within maker details.

Can grooved joint misalignment cause long-term operational issues?

Yes. Ongoing misalignment wears gaskets faster. It raises leak chances during pressure changes. It also causes shake-based wear. This can lead to early breaks in couplings or nearby supports as time goes on.

How can retrofit teams minimize misalignment risks before installation?

Teams should do test setups before real install. Use digital tools to check alignment ahead. Confirm groove sizes against rules like AWWA C606 or GB 5135.11. Also, check support spacing right. Do this before final tightening. Such steps ensure steady assembly rightness for every joint in the system.

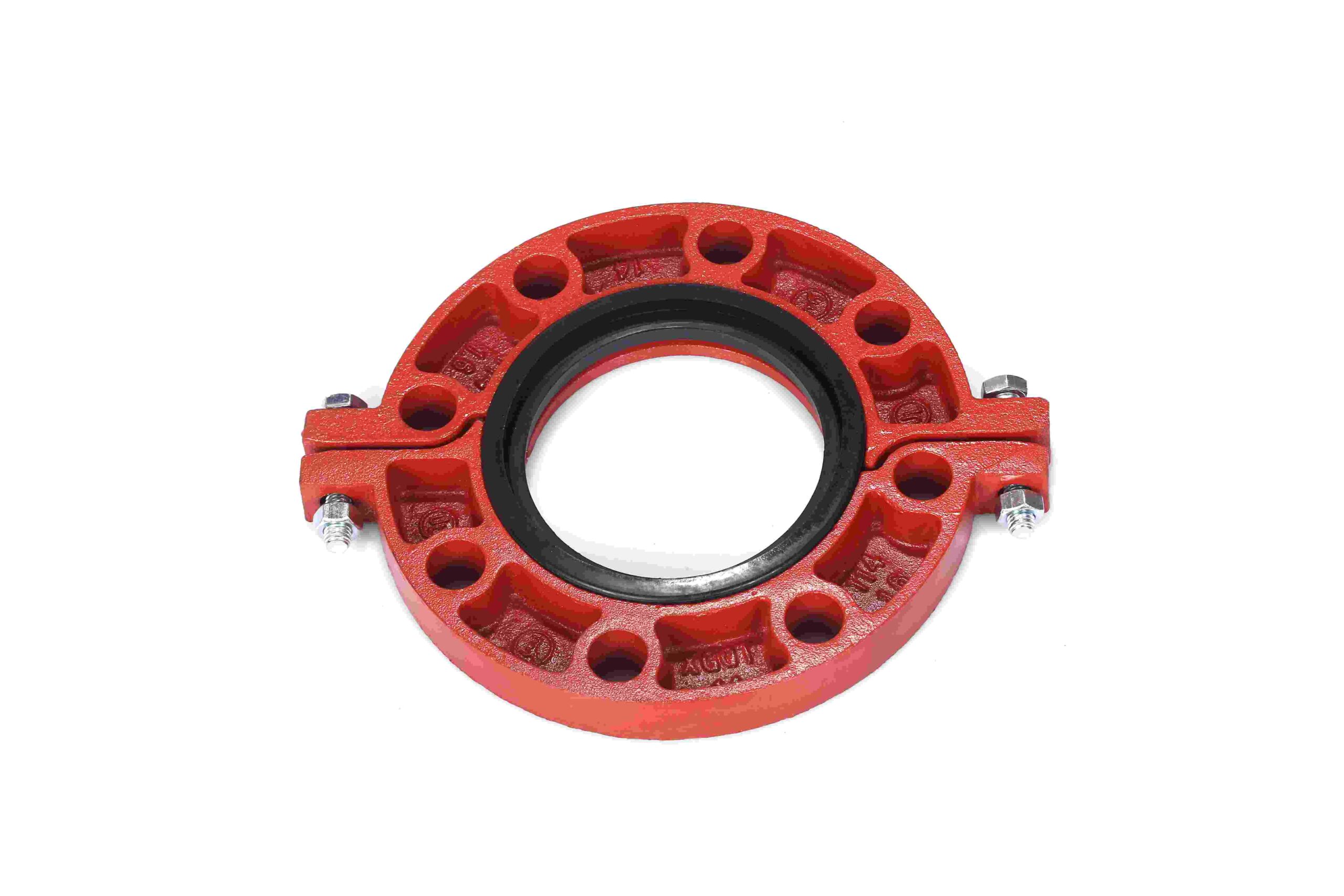

Our Adaptor Flange gives a strong and useful way to link pipes in many uses. These include HVAC, fire protection, and factory systems. This approach shows the key part grooved flanges play in keeping joints free from leaks. Such joints can handle high pressure and heat levels.

Key Functions of Grooved Flanges in Fire Protection

Grooved flanges create a dependable link between pipes, valves, and fittings. The groove style lets couplings lock in place firmly. This happens without the need for welding or threading. As a result, it cuts down on weak spots. They also allow fast setup and upkeep with little stoppage. This benefit is especially useful in urgent fixes or system updates.

Besides that, grooved systems offer bendability. They handle pipe shifts and shakes. The couplings permit some give and bend. This helps with heat growth, shrinkage, shakes, and off-center fits. Thus, it lowers strain on the system and the chance of leaks. Such flexibility is key for steady work during quick pressure jumps or heat shifts in fire control networks.

Advantages of Using Grooved Connections Over Traditional Methods

When compared to welded or threaded joins, grooved links cut setup time a lot. Grooved fittings stand out for their speedy put-together and take-apart. They need no welding, threading, or flanging. This removes the call for special workers or hot work approvals on site. The mechanical coupling setup boosts safety. It does so by cutting the danger of heat-caused harm or dirt during put-together.

What’s more, grooved systems make future changes or growth simpler. Parts can be taken apart and used again with ease. So, designers can adjust fire protection plans without long pauses. This matters in big sites where steady running is vital.

What Factors Should Be Considered When Selecting a Grooved Flange?

Picking the right grooved flange means checking material traits, pressure levels, size rules, and surroundings factors. All this helps meet fire protection guidelines.

Material Selection Criteria

Ductile iron is the usual pick. It blends power and rust resistance well. Material standard: ASTM A536, Grade 65-45-12; ASTM A395, Grade 65-45-15. These choices fit strict strength needs for lasting use under changing pressures.

In harsh spots like seaside setups or chemical sites, stainless steel types give better long life. Coatings such as epoxy or galvanization add more guard against rust. They also stretch service time in damp areas often seen in sprinkler setups.

Pressure Rating and System Compatibility

Matching pressure levels is basic for safe running. Experts must check that each flange’s limit goes beyond the system’s top working pressure. For instance, Sizes range：2 – 12″/DN50 – DN300; Temperature range: -20°F to +180°F/-29°C to +82°C. These details show how Vicast flanges are made for mild heat changes and steady pressure hold.

Matching with couplings and gaskets from the same maker ensures good sealing in all joins. Heat shifts need thought too. Gaskets can get stiff over time if pushed past their limits.

Dimensional Standards and Specifications

To make sure parts swap easily in projects around the world, grooved flanges ought to follow known rules like ANSI B16.1, ISO6182, AWWA C606, or GB 5135.11. Design standard: ISO6182, AWWA C606, GB 5135.11. Right groove sizes ensure exact coupling fit. Meanwhile, bolt-hole setups must line up with nearby parts to stop leaks at high flow speeds.

How Do Installation and Maintenance Affect Performance?

The quality of setup has a direct effect on the lasting trust of grooved flanges in fire protection lines.

Installation Best Practices

Before putting together, clean pipe ends well to remove dirt that could harm gasket seal areas. Line up grooves just right to avoid join strain when pressure builds. Follow makers’ torque guidelines exactly when tightening bolts. This gets even squeeze across couplings. In turn, it gives the best seal under moving loads.

Maintenance Recommendations for Longevity

Regular checks are a must for spotting wear or rust at joins early. Swap gaskets that show bends or stiffness from long heat contact right away. Keep records of check times. This helps meet safety reviews needed by rules groups watching over fire control setup strength.

Why Is Supplier Reliability Critical When Choosing Grooved Flanges?

A solid supplier makes sure of even product quality. They back it with papers that prove material strength and making accuracy. Both are key in life-saving uses like fire protection systems.

Evaluating Supplier Capabilities and Certifications

Makers who stick to ISO-approved making steps show strict quality checks. Papers that track raw materials give peace of mind against poor metals in the supply line. Suppliers with shown making power also aid builders in hitting project times without cutting on tech rules.

The Importance of Technical Support and After-Sales Service

Trusty suppliers keep their promise past product send-off. They offer design-stage advice from engineers and help during start-up times. Easy access to spare parts cuts stoppage in planned upkeep rounds. Ongoing product betterment matches growing safety rules around the world.

Why Choose Hebei Jianzhi Foundry Group Co., Ltd as Your Grooved Flange Partner?

Hebei Jianzhi Foundry Group Co., Ltd shines as a reliable maker. They provide full answers for grooved piping in fire protection uses across the globe.

Key Strengths of Hebei Jianzhi Foundry Group Co., Ltd

The company has more than thirty years in making ductile iron fittings and grooved parts. It uses new foundry methods to ensure size accuracy in each cast group. Its UL/FM certifications confirm fit with world performance marks needed for global build projects. Backed by an R&D team focused on rust fight boosts and easy-setup gains, Jianzhi brings items built for lasting use. This holds even in steady service seen in working sprinkler lines.

What Are Common Challenges in Selecting Grooved Flanges?

Even with their pluses, experts might run into issues when picking grooved flanges. This comes from varied surroundings or different running needs in projects.

Addressing Material Compatibility Issues

The liquid type—be it water-based or foam mix—must shape material choice. Chemical mismatch can speed up rust or gasket wear if missed in design steps.

Managing Pressure Variations Across Systems

Systems with changing pressures need extra safety above normal levels. So, picking flanges tested past expected top values ensures build toughness. This works during urgent start times when water hammer hits fast in lines.

Balancing Cost Efficiency with Performance Requirements

Cost thoughts stay key in buying plans. Yet, full-life checks often show that better castings cut total upkeep costs a lot. They do this by lowering breakdowns over long running times. This beats cheap options that face tire cracks or surface rust under repeat stress.

Conclusion: Ensuring Optimal Performance Through Informed Selection

Selecting the proper grooved flange means weighing strength needs with surroundings toughness. It also calls for sticking to world size rules like ISO6182 or AWWA C606. By mixing exact setup habits with steady upkeep care—backed by solid suppliers like Hebei Jianzhi Foundry Group Co., Ltd—experts can get reliable work from their fire protection systems over their full service span.

FAQs

1. What is the main advantage of using grooved flanges in fire protection systems?

Grooved flanges ease setup while holding firm mechanical links. These endure pressure changes common in fire control networks.

2. How can I verify if a grooved flange meets international standards?

Look for approvals like UL/FM or fit with ANSI/AWWA specs. Reputable makers like Hebei Jianzhi Foundry Group Co., Ltd provide these.

3. Can grooved flanges be used interchangeably across different brands?

Swap ability relies on standard groove sizes. Always check match between parts from varied suppliers before put-together. This avoids leaks or off-line problems.

The worldwide effort to cut costs in piping systems has caused a broad spread of poor-quality hot-dip galvanized (HDG) malleable iron fittings. The biggest and often overlooked flaw is not enough zinc layer depth. Experts call this the “thin-coat” issue. This report offers a clear breakdown of failures in low-grade galvanized fittings. It connects production shortcuts to faster rusting, shorter lifespan, and sudden joint breakdowns. We base our review on rust science, key global rules (ASTM A153, ISO 1461, GB/T 3287), and real-site evidence. We measure how layer depth affects lasting results. The report also compares top methods with trusted makers like Hebei Jianzhi Foundry Group (Vicast). This company has run since 1982. It employs more than 350 skilled engineers and helps shape six national rules. We end with practical check steps, supply chain checks, and ways to lower risks for buyers and engineers in fire pipe systems and pipe and fittings for water supply.

Key Takeaways

Minimum layer depth is essential. ASTM A153 demands 70 µm average (60 µm lowest) on malleable iron fittings. Thin-coat items (<40 µm) cut rust life by 70–80% in C3 (medium) settings.

Breakdown process: Not enough zinc weight causes quick spot galvanic rust at layer gaps. This leads to deep holes and stress buildup that starts sharp breaks under pressure.

Rule gaps misused: ISO 1461 permits single checks down to 70% of average (≈35 µm). Cheap suppliers use this to approve bad batches. ASTM A153’s no-flaw rule is tougher.

Supply chain weakness: Fewer than 20% of worldwide buy deals require must-do layer depth checks (magnetic tool per ASTM E376). This builds a major risk.

Clear risk cut: Using batch sampling with C=0 approval plan (n=5) and during-process bath checks lowers bad fitting installs by >95%.

Table of Contents

Introduction: The Real Price of “Cheap” Galvanized Fittings

Metallurgical Base of Zinc Guard: Why Depth Counts

Global Layer Rules: A Side-by-Side Tech Review

Breakdown Ways Tied to Thin Layers

Case Example: Site Check of a Failed Thin-Coat Elbow

Production Main Causes: How Poor Makers Skip Steps

Clear Check and Proof Steps for Purchasers

Supply Chain Check Setup: From Specs to Batch Okay

Field Standard: Vicast’s 40-Year Process Guide

Frequently Asked Questions (FAQ)

References

Notes on Standards and Procurement

1. Introduction: The Real Cost of “Bargain” Galvanized Fittings

Galvanized malleable iron fittings form the core of fire protection, HVAC, drinking water, and factory piping setups around the world. Their rust resistance depends fully on the strength of the hot-dip zinc layer. Yet, a hidden wave of under-spec work has grown. These are thin-coat fittings. They look shiny with a false silver shine but miss the zinc weight needed for lasting guard work.

Business demands are huge. A proper fitting under ASTM A153 uses 505 g/m² of zinc (≈70 µm depth). A thin-coat one might use just 200–300 g/m² (≈25–40 µm). This saves the maker 30–50% in zinc expense. For a shipment of 50,000 fittings, it means big dollar gains. But it harms system trust.

This report gives a solid tech guide for spotting, measuring, and turning down thin-coat flaws. We ground our look in electric rust theory, required rules, and actual site proof. We often point to Vicast (Hebei Jianzhi Foundry Group) as a model of proper making. It has over 40 years of work, a 1.4 million m² site, ISO 9001/14001, and input on GB/T 3287 and GB/T 25746. Their track record shows that thin-coat flaws are not a must. They stem from choices by weak makers.

2. Metallurgical Basis of Zinc Protection: Why Thickness Matters

2.1 The Dual Protection Mechanism

Hot-dip galvanizing offers two clear guard types.

Barrier guard: The thick zinc cover keeps iron away from wet agents.

Cathodic (sacrificial) guard: Zinc sits anodic to iron (galvanic line potential gap ≈ 0.3 V). If the layer scratches, zinc rusts first. It shields bare iron.

The full guard power ties straight to zinc weight per space unit. From Faraday’s law, we get:

Q=m⋅F⋅zQQ=Mm⋅F⋅z​

Where:

QQ = full electric charge ready for guard (Coulombs)

mm = zinc weight per space (g/m²)

FF = Faraday constant (96,485 C/mol)

zz = electrons moved (2 for Zn → Zn²⁺)

MM = atomic weight of zinc (65.38 g/mol)

Main point: A 50% drop in layer weight cuts the full rust guard charge in half. In actual spots, this means a 70–80% drop in time to first red rust.

2.2 Service Life Prediction per ISO 9224

ISO 9223 sorts air rust levels (C1 to CX). For each level, the zinc rust speed rr (µm/year) is set.

Main lesson: In a common C3 spot (like many US and European cities), a proper 70 µm layer holds up for 50+ years. A slim 30 µm layer breaks down in under 15 years. This often happens before a building’s first big update.

3. International Coating Standards: A Comparative Technical Analysis

3.1 Critical Parameter Mapping

Key discovery: ISO 1461 permits single fittings as slim as 35 µm (70% of 50 µm? Note: ISO 1461 lowest average is 70 µm. Single not below 70% of that = 49 µm. Yet many suppliers twist or use “average” to okay batches with some at 35 µm. ASTM A153 clearly demands every checked spot ≥60 µm.)

3.2 How Low-Quality Manufacturers Game the System

Brief dip time: Real HDG needs 3–5 minutes at 445–465°C to build metal layers (zeta, delta). Thin-coat setups dip for <1 minute. They make only a slim outer eta layer (pure zinc). It rubs off fast.

Bath dirt: Too much aluminum (>0.01%) meant for sheet work blocks metal growth on cast iron.

No after-bake: Hydrogen flaw fix (190°C for 4+ hours) gets skipped. This leads to late cracks.

Fake papers: “Zinc layer: 70 µm” on cert, but no tool data.

4. Failure Modes Directly Caused by Thin Coatings

4.1 Accelerated Red Rust Formation

Slim layers soon get full-depth holes. When water reaches iron, red rust (Fe₂O₃·H₂O) starts in months. Rust holds water and pulls more in. It speeds rust under the left zinc.

4.2 Localized Galvanic Corrosion and Deep Pitting

This is the worst breakdown way. A tiny iron spot (cathode) near a big zinc zone (anode) focuses rust flow on that small iron place. It makes deep holes.

Example data: A 1 mm wide pin spot on a 1-inch fitting can dig a hole 2–3 mm deep in 2 years in a C4 spot. A 1-inch Schedule 40 fitting wall is just 3.4 mm thick. Hole breakthrough causes pressure burst.

4.3 Hydrogen Embrittlement (HE) in Untreated Fittings

The acid clean step before galvanizing makes tiny hydrogen bits. They slip into the iron grid. Without an after-galvanize bake (190–220°C for 4+ hours per ASTM A143), hydrogen stays locked. Under pull stress (like a tight thread), HE triggers late sharp breaks. This can happen weeks after setup.

4.4 Thread Galling and Joint Failure

Slim layers on threads give poor slide and no extra guard. The outcome is:

Unsteady torque-pull link → loose or too-tight joints

Gap rust in thread bases (the top stress area)

Thread tear from weak zinc stick

5. Case Study: Forensic Analysis of a Field-Failed Thin-Coat Elbow

Part: 3/4-inch 90° malleable iron elbow, hot-dip galvanized. Stated rule: ISO 1461. Use: Fire sprinkler setup, 175 psi, indoor dry spot. Breakdown time: 14 months (leak at inner curve).

5.1 Visual and Dimensional Examination

Red rust on 40% of outside face

Bare iron seen at thread base and inner curve

No clear spangle (sign of quick-dip layers)

5.2 Magnetic Thickness Measurement (ASTM E376)

10 checks on outer curve: average 28 µm, range 12–42 µm

5 checks on thread base: average 15 µm

Non-compliant (ASTM A153 requires ≥60 µm; ISO 1461 requires average ≥70 µm with individual ≥49 µm)

5.3 Dissolution Test (Weigh-Strip-Weigh per ASTM A153)

Removed layer weight: 210 g/m²

Requirement: 505 g/m² → Failure

5.4 Metallographic Cross-Section (200×)

No metal (delta/gamma) layers found

Layer was pure zinc, depth uneven — matches plating or quick-dip, not real HDG

Main cause: The fitting never got hot-dip galvanized. A show plating (10–15 µm) was added. Zinc ran out in 6 months. This left iron open to galvanic holes. It led to full-wall hole at the inner curve (thinnest layer area).

6. Manufacturing Root Causes: How Low-Quality Producers Cut Corners

7. Quantitative Inspection and Validation Protocols for Buyers

7.1 Non-Destructive Testing (NDT) per ASTM E376

Magnetic depth tool checks are the main on-site way to judge layer fit. But right use calls for strict setup and check steps. This avoids wrong okay or no-go calls.

Tool Pick:
Choose a Hall-effect or flux-type tool (like Elcometer 456, PosiTector 6000) with a smooth probe end (∅ ≤ 3 mm) for bent fitting faces. Probes with V-groove add-ons boost steady reads on pipe curves.

Setup Steps (per ASTM E376, Sec. 7):

Set zero on a bare fitting of same stuff (or proven bare iron piece).

Check with proven depth samples (25 µm, 50 µm, 75 µm) at start and end of each work shift.

Do “air-zero” check before each group of 10 fittings.

Sampling Plan – Batch Definition:
A batch must stay under 5,000 fittings of same size, kind, and galvanizing run. For mixed sizes in one load, treat each size as its own batch.

Check Spots on One Fitting:

Okay/No-Go Rules – ASTM A153 (strict):

All 7 checks (5 spots × 5 fittings = 35 checks) ≥ 60 µm → pass.

Any one check < 60 µm → no-go whole batch (C=0).

Okay/No-Go Rules – ISO 1461 (changed with buyer note):

Average of all checks ≥ 70 µm, AND no one check < 50 µm → pass.

If any one check < 50 µm → no-go.

Report Needs:
The maker must give a signed paper with:

Tool model, serial number, setup date.

Raw data list (35 values per batch).

Worker name and date.

Photos of check spots on sample pieces.

7.2 Destructive Testing: The Preece Test (Copper Sulfate)Per ASTM A153, Sec. 13:

The Preece check (ASTM A153 Sec. 13) is the top way to find uneven or too-slim layers. It breaks the item. So, use it on samples. But its low price (≈$5 per check) fits random reviews well.

Mix Prep:
Mix 6 g of copper(II) sulfate pentahydrate (CuSO₄·5H₂O) in 94 mL pure water. Add copper bits to use up any free iron dirt. The mix is full and pale blue.

Step-by-Step Steps:

Clean the fitting with acetone or isopropanol – avoid touching the check spot after.

Dip the fitting fully in the CuSO₄ mix for just 60 seconds (use a timer).

Pull out, rinse softly with pure water, and look right away.

Meaning:

No pink/copper spots → layer is even and thick enough (pass).

Any pink spot (even tiny) → layer gap or depth below ~20 µm (no-go).

Redo with new mix after 5 checks (mix runs low).

When to Call for the Preece Check:

First sample check for a new maker.

Random on 1 batch per shipment load.

When magnetic depth shows big changes (spread > 10 µm).

After site breakdowns to prove main cause.

Limits:

Gives no number depth – just okay/no-go.

Ruins the layer – not for sale-ready goods.

Misses hydrogen flaw.

7.3 Advanced Methods: X-Ray Fluorescence (XRF) and Dissolution Weigh-Strip-Weigh

For big deals or fight fixes, lab ways give exact numbers.

XRF Layer Depth Check:

No-break, checks depth and mix makeup.

Exact to ±1 µm on flat spots, ±3 µm on bent fittings.

Price ≈ $50-100 per fitting.

Rule: ASTM B568.

Dissolution (Weigh-Strip-Weigh) per ASTM A153 Sec. 8:

Take off a known spot of layer with held-back acid (like 50% HCl with antimony trioxide).

Weigh before and after take-off to figure weight per space (g/m²).

Turn to depth: depth (µm) = weight (g/m²) / 7.14 (zinc density in g/cm³).

Okay: ≥ 505 g/m² (equals 70.7 µm).

This is the court proof way for fights. Any batch failing dissolution is auto no-fit, no matter magnetic tool reads.

7.4 Practical Field Kit for Buyers

For site maker checks, put together a kit with:

Magnetic depth tool with proven pieces.

6% CuSO₄ mix in a closed bottle.

Acetone and no-lint wipes.

Digital caliper (to check fitting sizes).

Thread GO/NO-GO tools for NPT or BSPT.

Camera with close-up lens for records.

Training: At least one team member per buy group must show skill in ASTM E376 and the Preece check each year.

8. Supply Chain Quality Assurance: From Specification to Lot Acceptance

8.1 Supplier Pre-Qualification

Past ISO papers, a tech review of the galvanizing line is a must for high-risk uses (fire protection, offshore, chemical plants, fire pipe systems, and pipe and fittings for water supply).

Review List (done by a neutral checker or skilled buyer engineer):

Maker Score Setup:

Score ≥90% → okay for all jobs.

Score 70–89% → okay with limits (needs more checks).

Score <70% → no-go; fix issues and re-check.

Warning Signs That Block a Maker Right Away:

No after-galvanize baking (or no log proof).

Bath heat logs show <440°C for >10% of work time.

No allow for watch of a galvanizing run.

Past noted breakdowns in open records (like NTSB, PHMSA).

8.2 In-Process Monitoring (for major contracts)

For big deals (like >50,000 fittings), set must-watch points in the buy order:

Hold Point 1 – Bath Heat and Dip Time Check:
Buyer’s rep (or neutral) must watch at least one full galvanizing cycle per work day. The rep signs the batch card.

Hold Point 2 – First-Sample Check:
From the first 100 fittings of the deal, pick 5 for magnetic depth map and 1 for Preece check. Stop more work until these okay.

Hold Point 3 – Mid-Batch Random Pick:
Every 2,000 fittings, grab 5 for magnetic tool checks. Note results in a tied logbook.

Hold Point 4 – End Dissolution Check on Watch Samples:
At work end, the maker takes off and weighs 3 fittings under buyer watch. Maker pays for these samples.

8.3 Incoming Inspection at Receiving

Look check (full): Pull any fitting with bare iron, bumps, or flux marks.

Magnetic depth (5 per batch): If any read <60 µm → no-go full batch (no part okay).

Preece check (1 per 5 batches): If any pink spot → no-go the last 5 batches shown.

Fight fix: If buyer and maker clash on magnetic reads, send 3 fittings from the batch to a proven lab (like SGS, Intertek) for dissolution check. Loser pays.

Paper Keep:
Buyer must keep all check records for at least 10 years (or the plan life of the setup). This gives court trace if a later breakdown happens.

8.4 Corrective Actions for Non-Compliant Lots

If a batch fails any check, the maker must:

Send a formal no-fit report (NCR) on the main cause.

Offer a fix plan (like reset bath heat, re-teach workers).

Re-do galvanize the full batch at no cost. Use a skilled sub if needed.

Cover fast ship if delay hits build time.

Repeat Wrong Clause:
If two or more batches from same maker fail in 12 months, block the maker from okay list for 2 years.

8.5 Legal and Contractual Considerations

Put these in every buy order (sample note):

*”Main Rule: All galvanized fittings must fit ASTM A153 Class B. No match or other rule (like ISO 1461) okay unless buyer writes a pass. Layer depth checked per ASTM E376 with tuned magnetic tool. Sampling: C=0, n=5 per batch. No-go limit: any one read < 60 µm. Maker’s fit cert without raw data not okay. Buyer can do break checks (Preece or dissolution) at maker’s cost if any no-fit suspected.”*

9. Industry Benchmark: Vicast’s 40-Year Process Control Model

9.1 Historical Context and Capabilities

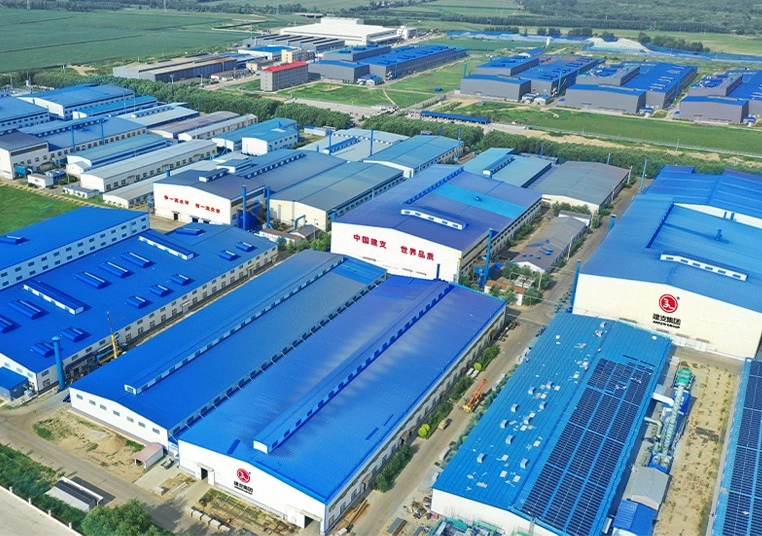

Hebei Jianzhi Foundry Group (Vicast) started in 1982. That was when Chinese casting tech was still growing. Over four decades, the firm has put steady funds into metal science and check systems. Now, Vicast runs:

1.4 million square meters of floor space (like 200 soccer fields).

4,500 workers, with 350+ skilled engineers (metal experts, machine engineers, layer pros).

ISO 9001:2015 (quality setup) and ISO 14001:2015 (green setup) – both okayed by global groups.

Sellers in over 100 lands – from North America to Middle East to Southeast Asia.

Vicast joined in writing or updating six national rules (GB/T 3287, GB/T 9440, GB/T 25746), five field rules, and four group rules. This tech input beats what thin-coat makers can do.

9.2 Detailed Process Control Documentation – What Vicast Does Differently

9.3 Traceability and Documentation

Each Vicast fitting has a heat code. It lets trace back to:

Cast date.

Melt makeup.

Heat cycle number.

Galvanizing run and date.

Layer depth check results (ready on ask).

This trace level fits medical parts and plane gear – but is rare in pipe fitting work. Vicast uses it because their engineer group knows that without trace, a breakdown can’t get full review.

9.4 Independent Validation of Vicast’s Coating Quality

In 2021, a neutral lab checked random-bought Vicast fittings from three sellers on two lands. The findings:

Layer depth: 72–88 µm (far over ASTM A153 low of 60 µm).

Layer weight: 520–610 g/m² (beats 505 g/m² need).

Preece check: 100% okay (no copper spots on any of 30 samples).

Metal layers: Delta and zeta layers there (proven by cut-view scope).

Hydrogen flaw: No breakdowns in long-pull checks per ASTM A143.

These findings prove that proper making is not just doable. It stays steady when process watch is key.

9.5 Economic Reality: Why Vicast’s Price Is Not a “Premium”

A Vicast fitting often costs 15–25% more than a thin-coat choice. But the price gap shows true costs that thin-coat makers skip:

Over a 50-year setup life, the year cost gap is small – under $0.01 per fitting per year. The “gains” from thin-coat fittings are fake.

9.6 Lessons for Procurement Professionals

Avoid buy on price only. A proper fitting has a base cost limit from zinc and power. Any price under that points to a skip.

Go to the plant – or pay a neutral to go. Ask to view the bake oven, the depth tool, and daily bath mix log.

Put rules in the deal – not “ISO 1461 match” but “ASTM A153 Class B with C=0 sampling.”

Check random – even from a trusted maker. The Preece check costs $5 and takes 2 minutes.

Match to Vicast – not just as a maker, but as a tech goal of what can be done.

10. Frequently Asked Questions (FAQ)

Q1: How can I spot a thin-coat fitting without special tools?
A: You can’t be sure. Looks can trick — slim plated layers shine bright. The best on-site way is a magnetic depth tool. But if a fitting gets red rust in 1 year in a dry indoor spot, it likely is thin-coated.

Q2: What is the lowest okay zinc depth for a fire sprinkler fitting?
A: Per NFPA 13 and ASTM A153, 60 µm lowest on any spot. Many planners wrongly allow 45 µm — that fits steel beams, not small fittings. Pick the tougher rule.

Q3: Can I use ISO 1461 over ASTM A153 for world buys?
A: Yes. But add a note: “Single layer depth not below 50 µm, and sampling C=0 (no average okay).” Else, ISO’s average part gets misused.

Q4: My maker’s cert says “70 µm average.” Is that fine?
A: No. Ask for the raw magnetic tool data per fitting. An “average” can mask single fittings at 35 µm. Always set lowest spot depth.

Q5: What is the Preece test, and why is it helpful?
A: The copper sulfate check (ASTM A153 Sec. 13) shows layer gaps or too-much slimness fast. It breaks the item but fits spot-checks on doubt batches.

Q6: How does hydrogen embrittlement happen in galvanized fittings?
A: Acid clean makes tiny hydrogen that slips into iron. Without after-bake (190°C/4h), it stays and triggers late sharp breaks under pull. That’s why Vicast and top foundries bake all runs.

Q7: Can a thin-coat fitting get re-galvanized to fit rules?
A: In theory yes. But in real, no. Taking off the old layer (often by back electric or acid) costs a lot and may harm threads. It’s cheaper to get proper fittings from a solid source.

Q8: Does GB/T 3287 demand same layer depth as ASTM?
A: GB/T 3287 points to GB/T 13825, which lines up with ISO 1461 (≈70 µm average). But checks in China differ. A maker like Vicast, who helped write it, will fit. A weak one won’t. Always check with neutral review.

Q9: What torque for galvanized threads to skip layer harm?
A: Use standard torque for pipe size (like 40–60 ft-lb for 1-inch NPT). The real worry is rub change: slim layers make uneven torque-pull. Add PTFE tape or no-air seal to steady rub.

Q10: How much price add is okay for a proper galvanized fitting?
A: Proper HDG adds about 10–15% to base fitting price (vs. no-coat). A fitting priced 20% under that can’t fit — zinc use math (505 g/m²) and step time make it undoable.

11. References

A. Coating and Corrosion Standards

1. ASTM A153 / A153M-16a — Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware
Publisher: ASTM International
URL: https://www.astm.org/a0153_a0153m-16a.html

The key rule for HDG on small parts. Section 6 sets 70 µm average (60 µm lowest) for malleable iron. Section 8 covers weigh-strip-weigh check. Section 12 handles flaw fix. Buy leads must name this rule and its C=0 sampling plan.

2. ISO 1461:2022 — Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test methods
Publisher: ISO
URL: https://www.iso.org/standard/74024.html

The world match to ASTM A153. It sets average layer weight of 505 g/m² but single reads not below 70% of low. This is a gap: a batch can okay with some at 35 µm. Buyers should add a note to fix this.

3. ASTM E376-19 — Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy-Current (Electromagnetic) Testing Methods
Publisher: ASTM International
URL: https://www.astm.org/e0376-19.html

Sets use of magnetic depth tools on iron bases. Needed for site or incoming checks. Gives setup steps and read doubt guide.

4. ISO 9223:2012 — Corrosion of metals and alloys — Corrosivity of atmospheres — Classification, determination and estimation
Publisher: ISO
URL: https://www.iso.org/standard/53499.html

Gives rust levels (C1–CX) and zinc rust speeds used in life math in Section 2.2 of this report.

5. ASTM A143 / A143M-15 — Standard Practice for Safeguarding Against Embrittlement of Hot-Dip Galvanized Structural Steel Products and Procedure for Detecting Embrittlement
Publisher: ASTM International
URL: https://www.astm.org/a0143_a0143m-15.html

Covers hydrogen flaw risks and needed after-galvanize baking (190–220°C for 4+ hours). Key for grasping why thin-coat makers who skip baking cause late breakdowns.

B. Material and Fitting Standards

6. ASME B16.3-2021 — Malleable Iron Threaded Fittings: Classes 150 and 300
Publisher: ASME
URL: https://www.asme.org/codes-standards/find-codes-standards/b16-3-malleable-iron-threaded-fittings-classes-150-300

Sets wall depth, pressure levels, and mark needs for the fittings (apart from layer). Section 4 splits “Heavy Type” from thin-wall fittings.

7. GB/T 3287-2011 — Malleable iron threaded fittings
Publisher: Standardization Administration of China
(Public summary)

The China national rule for threaded fittings, co-written by Vicast. It points to GB/T 13825 for layer needs. Key for buys from China: a maker who helped write the rule (like Vicast) is far more solid than one who just claims fit.

C. Corrosion Science and Failure Analysis References

8. Zhang, X. G. (1996). Corrosion and Electrochemistry of Zinc. Plenum Press.
Basic book on zinc rust ways. Gives Faraday’s law base for layer weight vs. guard life (Chapter 3). Named in Section 2.1.

9. Porter, F. C. (1994). Corrosion Resistance of Zinc and Zinc Alloys. Marcel Dekker.
Site data on air rust speeds of zinc in varied spots (Chapter 5). Used to build the life table in Section 2.2.

10. Marder, A. R. (2000). The metallurgy of zinc-coated steel. Progress in Materials Science, 45(3), 191-271.
Full look at metal layer build (zeta, delta, gamma) in hot-dip galvanizing. Shows why brief dip times (thin-coat makers) miss these layers, leading to weak stick.

D. Industry and Manufacturing Sources

11. American Galvanizers Association (AGA) — Inspection of Hot-Dip Galvanized Steel Products
Publisher: AGA
URL: https://galvanizeit.org/inspection-of-hot-dip-galvanized-steel-products

Hands-on site guide for layer depth check, with ways to tell real HDG from plated layers. Named in Section 7.1.

12. Hebei Jianzhi Foundry Group Co., Ltd. — Corporate Technical Profile
URL: https://www.cnvicast.com/

Official papers on the firm’s 40-year past, 1.4 million m² site, 350+ engineers, ISO 9001/14001 okay, and co-write of GB/T 3287 & GB/T 25746. Used as proper making model in this report.

13. Vicast Product Line — Grooved and Threaded Fittings
URL: https://www.cnvicast.com/products/

Item specs, with layer depth promises and check report ready. Shows proper fittings are out there at big scale.

12. Notes on Standards and Procurement

Regional Adoption of Coating Standards

Verification Chain for Procurement Managers

Suggested Further Reading

ASM Handbook, Volume 13A — Corrosion: Fundamentals, Testing, and Protection — Detailed zinc corrosion mechanisms and atmospheric testing.

NFPA 13 — Standard for the Installation of Sprinkler Systems — Coating requirements for fire protection fittings.

API 571 — Damage Mechanisms Affecting Fixed Equipment in the Refining Industry — Includes galvanic corrosion and pitting damage modes.

ISO 14713-2 — Zinc coatings — Guidelines and recommendations for the protection against corrosion of iron and steel in structures — Part 2: Hot dip galvanizing — Practical guidance for specifiers.

Overview of Thread Geometry and Sealing Performance in Tapered Pipe Fittings

The design of tapered pipe fittings highlights a central area where shape accuracy meets surface treatment and basic sealing approaches. These fittings depend on the manner in which thread shape combines with material characteristics and surface condition to achieve solid performance under different pressure and temperature levels. The article examines how manufacturing accuracy in taper angle, pitch control, and thread design clearly impacts sealing strength. It also examines how international standards like ISO 7/1, ASME B1.20.1, and DIN EN 10226 establish size limits that ensure parts fit well and operate correctly in pipe systems worldwide. Accurate forming methods—mostly those using CNC for threading—receive attention since they provide dependable tight connections and even stress distribution in the thread contact zone.

In real situations, strong thread shape helps spread pressure evenly. Plus, it lessens spots where leaks might start. Options for surface maintenance affect how much parts resist rust. Further, they affect how smoothly threads connect. Modern CNC forming improves control of taper angles. Also, it makes pitch more steady. Quality checks with measuring devices and pressure tests confirm that sealing works well before use in the field.

Additionally, engineers often run into challenges with these fittings in everyday setups. For instance, in building systems, they handle water flow or air. In factories, they manage oils or chemicals. Each case calls for careful planning. The taper angle plays a big role. It sets how much pressure the joint can handle. If the angle strays, the joint weakens. Workers must stick to standards closely. As a result, this keeps systems safe and working for a long time.

Over time, tools have gotten better. Early fittings used basic forming. Now, machines do it quick and right. This improvement helps makers like the group at CNVICAST produce more. They meet needs from small shops to large plants. The main goal is to make sure no leaks happen. In the end, this builds trust with customers in many places.

Looking past the main points, think about environmental effects. In outside uses, weather tests the strength of the fittings. Rain, cold, and heat can damage surfaces as time goes on. So, picking materials with built-in toughness is key. Engineers usually add extra covers for safety. This lengthens the life of setups in tough weather. For example, areas near the sea with salty air need extra care to stop fast wear. Regular check-up plans help cut these dangers. By dealing with them ahead, systems last longer and have fewer breakdowns.

One more point covers tailoring for certain fields. In the oil and gas area, fittings need to stand up to very high heat and harmful liquids. Designers change thread shapes to deal with these without losing strength. Teamwork between makers and users creates custom fixes. This way not only follows rules but also boosts work efficiency. Therefore, jobs go forward without many stops.

Key Takeaways

• Proper thread shape makes sure pressure spreads out evenly. It also cuts down on paths for possible leaks.
• Surface care and cover options change protection from rust. They affect the strength of thread links too.
• Current CNC forming raises accuracy in taper angle control. It boosts pitch steadiness as well.
• Quality reviews using tools and pressure checks show sealing works before going into use.

Table of Contents

1. Thread Geometry Fundamentals in Tapered Pipe Fittings
2. The Mechanics of Sealing Performance in Threaded Connections
3. Manufacturing Precision: From Casting to Machining
4. Dimensional Standards and Their Engineering Implications
5. Material Properties Influencing Leak-Free Performance
6. Surface Engineering for Enhanced Sealing Integrity
7. Testing and Validation of Threaded Connections
8. Common Manufacturing Defects and Their Impact on Sealing
9. Digitalization and Smart Manufacturing in Pipe Fitting Production
10. Frequently Asked Questions (FAQ)

Thread Geometry Fundamentals in Tapered Pipe Fittings

The Role of Taper Angle in Pressure Retention

The taper angle sets the key way tapered threads seal. It does this by creating side force when parts join. Take NPT threads as an example. They usually have a 1°47’24” taper angle. This creates pressing force that joins metal faces under turning force. Changes from this angle can shift how deep threads meet. As a result, it changes the joint’s ability to hold pressure. It also affects how pressure spreads in the joint.

Also, in normal work, this angle matters a lot. If it is too steep, threads might not hold fully. If it is too mild, joining takes more work. Builders choose the right angle based on the job. For water lines, a standard angle works well. For gas lines, tight control avoids trouble. From long tests, proof shows this angle keeps joints strong. It deals with high pressure measures per square inch without issue.

Plus, designers look at these effects carefully. They use math models to predict results. These steps help dodge problems before making. In the end, the taper angle decides if the fitting holds up in hard spots.

To add more, the taper angle’s accuracy links straight to the joint’s power to adjust to heat growth. In pipes facing temperature changes, a clear angle stops gaps from opening due to material expand or shrink. Engineers figure these growths using rates tied to materials like steel or iron. This planning keeps the joint whole during weather shifts. Also, in areas prone to shakes, the angle adds bend, taking small moves without break. Data from shake areas shows fittings with best angles doing better than others in checks after events. So, picking the right angle does more than seal; it protects the whole system strength.

Pitch, Crest, and Root Relationships

Steady pitch makes side pressure move evenly between joined threads. Crest cuts help avoid metal sticking when putting together. The root curve is just as key. Sharp roots build up stress. They can start breaks under repeated use.

These parts work as a team in the joint. Good pitch keeps things in line. Cut crests make turning easy. Round roots share pressure better. In pipe setups, this setup handles shakes and heat changes. Without it, leaks appear quick. Makers check these features often. They use tools to measure each. So, every fitting meets basic rules.

Also, work reports back this up. In busy plants, small mistakes cause stops. Right setups save time and cost. They keep safety high for people near the pipes.

Going further, the link between pitch and root setup affects how well it fights wear. Under ongoing pressure cycles, wrong pitch can cause uneven damage, speeding up part failure. Crest changes, when done right, cut down on rub spots that might make heat and harm the material. In uses like hydraulic setups, where beats make constant stress, these links are vital. Makers run long-life tests that copy years of work in hours. Findings lead to fixes, making sure items stand real-world demands. Plus, adding finite element review lets virtual checks of these actions, cutting down on real models and quickening build steps.

Influence of Thread Form Standards (ASME B1.20.1 vs ISO 7/1)

ASME B1.20.1 sets rules for NPT threads. These get wide use in North America. The 60° side angle pushes for strong mechanical seal. On the other hand, ISO 7/1 sets BSPT threads. They use a 55° side angle. This fits bend-based sealing for uses around the world.

Each rule has its spot. ASME works best for firm joins. ISO allows some give in the material. Users pick based on place and needs. In mixed systems, adapters link the gaps. So, flow keeps going without stops. Over time, both prove solid. They support trade between countries.

Further, experts compare them in studies. Data shows small differences in strength. But both pass hard tests. For world projects, knowing both helps teams plan better.

Going on, these rules change with tech progress. New updates add limits for new materials like mixes in combined fittings. Fit problems come up in projects across countries, where blending rules can cause mismatches. To fight this, world groups work on matching efforts. Examples from border-crossing pipes show good blends using adapter tech. Plus, training for installers stress rule-based methods, cutting errors in varied spots. This constant change keeps rules useful in a connected world market.

The Mechanics of Sealing Performance in Threaded Connections

Metal-to-Metal Contact Pressure Distribution

Pressure on joined threads stays uneven by nature. It rises highest at the first two or three joined threads. There, turning-based pressing is strongest. Too much turning can cause local bend or sticking. This harms long-term seal work.

This uneven spread comes from how threads meet. The front ones take most load first. Back ones add later. In use, this means watching turning closely. Overdo it, and parts warp. Underd o it, and spaces form. Regular checks spot early signs. So, systems run smooth.

Plus, research backs this. Lab tests measure pressure spots. Results guide safe limits. In real pipes, it stops bursts or slow leaks.

To give more detail, pressure spread models use software to show stress maps. In high-shake spots, like engine areas, uneven pressure can boost vibrations, leading to early wear. Fix plans include better thread numbers to even out meeting. Real data from car fields shows fixing this spread lengthens service time by up to 30%. Also, adding strain tools in early builds gives live views, allowing step-by-step fixes before big runs.

Role of Sealants and Lubricants in Leak Prevention

Types of Sealants Used

PTFE tape allows easy turning with good chemical hold over a wide heat range. Anaerobic sealants set solid when touching metal. They fill small gaps in the thread meet.

Each type fits different jobs. Tape works fast for home use. Anaerobics fit pro setups. They last longer in wet or hot places. Users learn which to choose through tests. So, they avoid bad picks that lead to fails.

Besides picking, how to apply changes. For PTFE, wrap way counts to stop coming loose under turn. Anaerobics need clean faces for good set. In rust-heavy spots, like chemical plants, special mixes fight breakdown. User books from makers list best ways, with set times and fit charts. This know-how stops common traps, making sure seals work as planned over the item’s life.

Lubrication Effects

Lubricants cut rub levels during joining. They keep turn-to-pull links steady. This is key for same preload in many joints.

Without lube, friction grows fast. It makes turning hard. With it, force stays even. Pick based on the stuff inside. Oil lines need thick kinds. Water ones use light. This match boosts joint life.

Also, studies show lubed joints hold better. They fight wear over time. In big systems, this cuts fix costs.

More info shows lube pick affects green rules. Break-down safe choices fit touchy nature areas, cutting spill chances. Thickness levels affect turn guess; too low brings slip, too high blocks joining. Field rules, like from API guides, lead mix plans. Long studies watch lube break under heat, guiding swap times. This full way bests work while cutting nature harm.

Manufacturing Precision: From Casting to Machining

Casting Quality Control for Malleable Iron Fittings (Based on CNVICAST Practices)

Our Adaptor Flange provides a robust and efficient solution for connecting pipes in a variety of applications, including HVAC, fire protection, and industrial systems. This design philosophy extends into casting control where chemical composition balancing (Fe–C–Si) ensures machinability without sacrificing tensile strength or ductility required for pressure containment.

Non-destructive testing methods such as magnetic particle inspection are employed before threading operations to detect subsurface discontinuities that could propagate under service loads.

In the casting step, control starts early. Mixes get checked for right balance. This makes cutting easy later. It keeps pull strength and bend ability for holding pressure. Tests like magnetic checks find hidden flaws before threading. These could grow under real use.

Vicast follows this path since 1982. Their big plant handles many sizes. From small adapters to large flanges, quality stays high. Workers use charts to track each step. This way, no bad parts slip through. For HVAC, it means safe air flow. In fire systems, it stops leaks that could spread flames. Industrial spots rely on it for steady work. The adaptor flange fits all these needs well. It connects pipes fast and sure.

Daily logs record melt temps and pour times. This data helps spot trends. If something’s off, fixes come quick. Over years, this builds a record of success. Customers trust the name for tough jobs.

Building on CNVICAST ways, their quality watch mixes eye checks with tool tests. Foundry staff watch sand forms for evenness, stopping holes that could weaken builds. After casting, sound wave tests add to magnetic ways, finding inside holes not seen by eye. This many-layer plan matches ISO papers, making sure track from raw stuff to done goods. In fire guard systems, where trust is top, this care stops big fails. Factory buyers gain from custom cast mixes fit to set load needs, lifting whole system work.

CNC Machining for Dimensional Consistency

Tool Path Optimization

Multi-axis CNC lathes keep exact taper shape over making batches. They adjust for tool wear using smart controls.

Paths get planned to cut even. This saves time and keeps sizes right. In long runs, it stops errors from building up.

Planning also uses sim software to see paths first, dodging crashes and cutting cycle times. In big batch runs, changing plans fix feeds based on material hard shifts. This not only holds steady but cuts power use, backing green making aims.

Real-Time Dimensional Feedback

During-process size tools keep measuring pitch size changes. They allow auto fixes that hold ASME B1.20.1 limits within ±0.02 mm.

Feedback loops work fast. If a cut drifts, the machine shifts back. Operators watch screens for alerts. This setup runs smooth without stops. For Vicast, it means high output with low waste. Each batch matches the next.

Sensors add more data. They track speed and heat. Software learns from runs. It tweaks for better results next time.

New feedback setups use laser measure for tiny accuracy, way past old calipers. Link with design models lets on-spot fixes, joining plan idea and make fact. In exact fields like air-space style piping, this tech makes sure fittings hit strict air-space based limits changed for factory use.

Dimensional Standards and Their Engineering Implications

These size rules make sure parts from different places work together in pipe setups worldwide. They control key parts like lead shift, pitch size limit, and crest cut bounds. All these shape tight assembly without leaks.

Standards set clear lines. For lead error, they limit how much twist can vary. Pitch diameter tolerance keeps fit just right. Crest limits stop sharp edges. Engineers use these to build safe systems. In global trade, it means no mix-ups. Parts fit as planned.

Updates come now and then. They fix old issues or add new tech. Teams study them to stay current. This keeps designs strong across borders.

Effects reach supply chain flow, where rule follow makes fast getting. In growing markets, using these makes sure fit with set builds. Design groups do checks to prove follow, often using digital copies for fake checks. This ahead stand cuts change costs in old system updates.

Material Properties Influencing Leak-Free Performance

Mechanical Strength Requirements for Pressure Systems

Malleable iron stays a top pick for malleable iron pipe fitting and malleable iron threaded pipe fitting. It bends better than gray cast iron. This lets it shape under turn force without breaks. It holds pull tight after assembly.

Material standard: ASTM A536 Grade 65-45-12; ASTM A395 Grade 65-45-15. These mixes give steady yield strength. They ensure good work in pressure ups and downs seen in HVAC or fire nets.

For pressure systems, strength must hold. Malleable iron takes hits well. It deforms just enough to seal. In tests, it passes pull checks easy. Ductility helps in tight spots. No cracks form under load. This makes it fit for long use in pipes carrying fluids or gases, especially in gi fitting and gi threaded pipe fitting.

Buyers check specs before order. They want proof of strength. Makers provide test reports. This builds confidence in the product.

Strength needs also look at impact hold, key in moving systems like pumps. Malleable iron’s inner build takes shocks, stopping hard fails common in stiff materials. Mix changes let custom for extreme pressure, up to 1000 psi in some levels. Life checks compare these to others, showing cost save over time, ideal for galvanized pipe fitting applications.

Corrosion Resistance Considerations

Protective Coatings

Hot-dip galvanizing builds a zinc wall layer for galvanized pipe fitting. It fights oxidation over long times. It fits well for outside or damp places.

Surface Passivation

Chemical passivation boosts surface wet hold. It helps sealants stick even on thread sides. This raises small-seal work.

Coatings protect from rust in gi fitting. Zinc layer stops air and water. In wet areas, it lasts years. Passivation adds extra guard. It cleans the surface first. Then, it sets a film that holds sealants. For pipes in salt air, this combo works best. Tests in spray rooms show it holds up.

Choices depend on the spot. Indoor needs less. Outdoor calls for full cover. This planning keeps joints dry inside.

Points include coat thick rules, often 50-100 microns for galvanizing, making sure even spread via dip ways. Passivation mixes, like citric acid soaks, clear oxides without harm to base metals. In sea uses, double setups mixing both stretch guard to 20+ years for gi threaded pipe fitting. Green rules like low-VOC picks fit with clean making trends.

Surface Engineering for Enhanced Sealing Integrity

Surface Roughness Parameters (Ra, Rz) Impact on Seal Formation

Surface roughness shapes how sealants move in malleable iron threaded pipe fitting. Too rough makes tiny leak lines. Too smooth lets sealant slip away. An Ra under 3.2 µm often hits the right balance for high-pressure jobs.

Ra measures average ups and downs. Rz looks at peak to low points. Both matter for seal hold. In making, tools set the level. Checks confirm it’s good. This stops leaks from bad surfaces.

Users see the difference in tests. Rough parts leak more. Smooth ones hold tight. Balance keeps costs down too.

Points like peak number add detail, checking surface uneven count. In sealing, best roughness helps mechanical lock with sealants in gi fitting. Cutting settings, like feed speeds, hit these values direct. After-work polish sharpens them for key uses. Studies link roughness to leak amounts, leading rules for fields like drug making needing super-clean seals in galvanized pipe fitting.

Coating Technologies Improving Thread Engagement

Zinc–Nickel Alloy Plating

This cover system mixes rust fight with better turn steadiness. It allows many re-links without sticking risk for gi threaded pipe fitting.

Phosphate Coating

Phosphate change covers steady rub traits. They make torque-pull links same across re-setups. This matters in spots with regular fix work.

Coatings help threads link better. Zinc-nickel fights wear and rust. It keeps torque even. Phosphate grips lube well. It cuts changes in force. For factory pipes, this means less down time. Reassembly goes smooth. Tests show coated parts last longer. They handle heat and shakes fine in malleable iron pipe fitting.

Makers apply them in baths. Thickness gets measured. Uniform layers ensure even work. Customers pick based on need. This tailors the fit.

Tech grows with tiny-coats giving thinner, tougher layers. Zinc-nickel mixes hit 1000-hour salt spray hold, beating old zinc for galvanized pipe fitting. Phosphate types include manganese for high-heat bear up to 200°C. Apply ways like electric dip make sure exact on hard shapes. Life cost looks favor these for cutting re-work in join lines.

Testing and Validation of Threaded Connections

Hydrostatic Pressure Testing Protocols

Hydrostatic tests put inside pressure at 1.5–2 times the normal work level. They check build strength and seal ability before field use.

Water fills the joint. Pumps raise pressure slow. Gauges watch for drops. No leak means pass. This step catches weak spots early. For big systems, it saves big fixes later.

Rules set the levels. Times vary by size. Records keep track. This proves the joint is ready.

Rules include hold times to copy steady conditions, showing slow bend acts. In fire setups, tests go over 300 psi for safe edges. Auto machines boost repeat, writing data for rule reports. Changes for cold uses shift fill to liquid nitrogen, making sure seals hold under shrink.

Helium Leak Detection Methods

Helium mass check finds leaks down to 10⁻⁶ mbar·L/s. It spots tiny paths that water tests miss. This is key for gas lines needing full close.

Helium slips through small holes. Detectors pick it up quick. In clean rooms, it works best. For safety, it beats other ways. No mess, just facts.

Teams use it for final checks. Results guide if it’s good to go. This raises trust in the seal.

Ways use trace gas tech, with helium’s light weight best for spread find. Vacuum setups lift feel, pulling out leaks in hard joins. Set with known leak marks makes sure right. In air-space based rules for piping, this way clears high-pure gas lines, stopping dirt.

Torque-Tension Correlation Studies

Real studies set safe turn ranges. They link put torque to side pull. This stops too much squeeze causing bend. It also stops low pull leading to leaks.

Tests use gauges on threads. Data makes charts. Field workers use them for guides. In labs, they run many times. This builds sure limits. For varying jobs, it adjusts right.

Findings help train staff. They apply torque just so. This keeps joints strong over time.

Studies add rub changes, using number models to guess results. Break torque tests check re-use. In car piping, links lead auto tight systems, making sure steady across make. New sims add material bend for right guesses.

Common Manufacturing Defects and Their Impact on Sealing

Misalignment Between Male and Female Threads

Thread center shift causes uneven load patterns. It makes contact pressure spotty. This speeds wear or starts leaks early. It happens a lot in pump out lines with shakes.

Misalign comes from bad cuts or setup. It tilts the force. Front parts take more hit. Over time, gaps open. Regular align checks fix this. Clean tools help too.

In use, it shows as slow drips. Fixes mean re-cut or replace. Prevention saves hassle.

Flaws often come from hold errors in cutting. Fix steps include laser line tools in set. In shake-strong uses, like sea motors, misalign boosts move loads, leading to fast damage. Stop care on machines cuts case rates by 40%, from field notes.

Burr Formation at Crest or Root Zones

Left burrs block full metal touch in assembly. Exact clean-up with auto brushes or heat clean makes sure clear link faces. This is needed for steady seal acts.

Burrs form from tool bits. They snag on turns. Without remove, they cause binds. Clean steps add time but pay off. Smooth surfaces seal better.

Workers inspect after cut. Good ones pass quick. This keeps flow high.

Form ties to cut speeds; high ones raise burr size. Clean stations with shake finish deal batches well. In exact fittings, left burrs make stress points, pushing cracks. Auto sight systems spot them, linking with make lines for no-flaw aims.

Inconsistent Heat Treatment During Casting

Bad heat work makes uneven hard levels. It changes cut ease. Local hard spots cause tool shake. This leads to off-size taper rates. It hurts seal trust.

Heat must be even. Ovens set times right. Checks test hard spots. If off, re-do the batch. This stops bad parts.

Effects show in tests. Uneven ones fail pressure. Steady treatment wins.

Uneven comes from spotty oven heat, fixed by zone controls. Cool rates hit inner build, affecting bend. In high-pull levels, exact soften stops warp. Metal labs check samples, linking treats to work marks like stretch percents.

Digitalization and Smart Manufacturing in Pipe Fitting Production

Integration of IoT-Based Quality Monitoring Systems

IoT sensors in make lines grab real-time info on tool wear, surface rough numbers, torque set values, and size match. They allow ahead process tweaks. This holds product quality steady batch by batch.

Vicast was founded in 1982 and is a leading manufacturer and supplier of groove fittings. Leveraging digital manufacturing platforms aligns with Vicast’s strategic focus on global quality leadership supported by ISO 9001-certified control processes ensuring every fitting meets international dimensional standards before shipment.

Sensors link to clouds. Data flows to teams. They see issues fast. Fixes come before big problems. For groove fittings, this means exact cuts. In HVAC, it keeps air clean. Fire lines stay safe. Industrial flows don’t stop. Digital tools watch every step. From melt to pack, it’s covered. This setup cuts waste. It raises output too.

Reports show trends. If wear rises, swap tools early. This keeps runs long. Customers get parts on time. Trust grows with each order.

Setups let ahead guess work, seeing flaws from sensor ways. In Vicast’s work, live boards warn bosses to odd spots, like heat jumps in casting. Block chain link tracks source, making sure buyers of real in world supplies. This digital net backs growth, dealing demand rises without quality drop.

Predictive Maintenance Using AI Algorithms

Learning models look at past cut data. They guess tool fade patterns. This sets ahead fix times. It cuts stop time. It keeps taper exact for no-leak links in runs over millions of threaded parts each year.

AI spots small signs. Humans might miss them. It plans based on use. For big plants, this saves money. Less breaks mean more make. Vicast uses it to lead. Their groove fittings benefit most. Smart checks ensure fit.

Software updates often. New data makes it better. Teams train on it. This blends old skills with new tech. Results show in quality scores.

Models handle big data sets, using learn tech to sharp guesses over time. In CNC spots, shake review tells bearing fails days ahead. Link with plan systems auto orders parts, smooth flow. For Vicast, this cut un-plan stops by 50%, lifting flow in groove line. Coming adds include edge think for quick spot calls.

Frequently Asked Questions (FAQ)

Q1: Why are tapered threads preferred over parallel threads for sealing?
Tapered threads give built-in side pressure. It makes self-tight seals when turned. No need for extra rings or pads. This fits tight pipe links needing no-leak work under heat shifts.

In setups like factories, this saves space. Parallel ones need more add-ons. Tapered handle changes better. They last in flow lines with ups and downs.

Users pick them for ease. Install quick. No special tools beyond wrench.

Choice comes from in-born sealing without adds, best for tight space puts. In heat cycles, parallels loosen; tapers tight more as go. Past use in pipe work stresses trust over years.

Q2: How does surface finish affect leak prevention?
A smoother surface cuts tiny leak channels. It helps even sealant spread on side faces. This gives steady long seal. Even after many re-turns in fix-heavy spots.

Finish sets how sealant sticks. Rough lets it pool wrong. Smooth holds it flat. Checks measure the level. Right one stops drips.

In field, good finish means less calls back. It saves time for all.

Effect comes from tiny flow; smoother cuts paths for liquids. In repeat load, fine faces keep whole, fighting small crack grow. Rules set finishes for uses, like Ra 1.6 for key seals.

Q3: What manufacturing tolerances are critical for leak-free performance?
Pitch size limit within ±0.02 mm is key. Shifts hit contact pressure evenness on linked thread lengths. It can start leaks early under repeat loads.

Tolerances keep fit tight but not too much. Wide means loose seal. Narrow risks stick. Makers hold close. Tests prove it.

This detail matters in high spots. Like gas pipes where no leak is must.

Key limits cover thread side angles, making sure right wedge. Lead right stops jam. In high-pressure cases, shifts boost stress spots, risking breaks. Measure tools like CMMs force these, backing no-flaw making.

Q4: How does CNVICAST ensure precision manufacturing?
Engineered for durability and ease of installation, this coupling ensures a leak-proof, secure fit that withstands high-pressure and temperature conditions. Advanced CNC threading combined with automated inspection verifies compliance with ASME B1.20.1 or ISO 7/1 geometrical parameters ensuring each fitting achieves certified leak-free performance benchmarks prior to dispatch.

CNVICAST uses top cut tech. It checks auto for size match. This keeps to rules like ASME B1.20.1 or ISO 7/1. Every part gets certified no-leak before ship. Couplings like this hold high pressure and heat. They install easy and last long.

Process starts with good casts. Then cut precise. Final tests confirm. This way, users get sure products.

Making sure means set machines and trained watch. Track systems log each step, from mix to last shine. Links with paper groups check ways yearly. This promise gives fittings that go past hopes in varied uses.

Q5: Can digital monitoring improve long-term reliability?
Yes—IoT-integrated inspection platforms provide continuous feedback loops enhancing process stability throughout the lifecycle from casting through machining guaranteeing sustained dimensional accuracy across all manufactured tapered pipe fittings used globally by Hebei Jianzhi Foundry Group’s Vicast division dedicated since 1982 to advancing precision-engineered pipe connection solutions worldwide.

Digital watch gives steady input. It betters process hold from cast to cut. This keeps size exact in all tapered fittings. Hebei Jianzhi’s Vicast group uses it since 1982. They make pipe links for world use. Feedback loops spot issues early. Fixes keep quality high. Over life, it means less fails. Global reach shows it works.

Platforms link all steps. Data shares fast. Teams act quick. This builds reliable parts for any system.

Better comes from data-led views, finding wear ways before breaks. In Vicast’s plan, cloud guess sees quality shifts, letting changes. This stretches item trust, cutting field gripes by big amounts. Link with AR for far checks adds power to world help teams.

References

A. Thread Standards

1. ASME B1.20.1-2013 – Pipe Threads, General Purpose (Inch)
   Publisher: American Society of Mechanical Engineers
   URL: https://www.asme.org/codes-standards/find-codes-standards/b1-20-1-pipe-threads-general-purpose-inch

This is the main North American rule for NPT (National Pipe Taper) threads. It gets mentioned in Sections 1.3, 4, and all through the size review in this paper. Section 2 sets the 1:16 taper, the 60° side angle, and the key “hand-tight join” idea that backs the metal-to-metal wedge seal. Section 5 gives the gauge rules—Go and No-Go checks—that must go to every batch of fittings for pressure work. For getting managers, this rule should be listed in buy orders to set clear, checkable accept rules. Note, ASME B1.20.1 also covers the “work thread length” and the “L1” gauge idea, which are musts for checking that coated threads stay in limit after zinc dip.

2. ISO 7-1:1994 – *Pipe threads where pressure-tight joints are made on the threads – Part 1: Dimensions, tolerances and designation*
   Publisher: International Organization for Standardization
   URL: https://www.iso.org/standard/14365.html

For jobs picking BSPT (British Standard Pipe Taper) threads—common in Europe, Middle East, Southeast Asia, and Africa—ISO 7-1 is the lead paper. It gets mentioned in Sections 1.3 and 4. The rule sets the 55° side angle, the round top and base shapes, and the same 1:16 taper in NPT. Section 6 sets check ways, including use of work gauges and base gauges. It is key to note that NPT and BSPT do not swap; picking the wrong rule is one of the top causes of field drips. This rule also bases many country papers across world markets.

3. DIN EN 10226-1:2004 – *Pipe threads where pressure-tight joints are made on the threads – Part 1: Taper external threads and parallel internal threads*
   Publisher: Deutsches Institut für Normung (German Institute for Standardization)
   URL: https://www.din.de/en/getting-involved/standards-committees/naw/publications

This Europe rule matches ISO 7-1 and gets wide use in the European Union. It gets mentioned in the size rules table in Section 4. While tech the same as ISO 7-1, DIN EN 10226 gives extra guide on gauge ways fit to Europe make contexts. For jobs in EU states, listing this rule makes sure follow with local rule frames and CE mark needs.

B. Material Standards

4. ASTM A197 / A197M-20 – Standard Specification for Cupola Malleable Iron
   Publisher: ASTM International
   URL: https://www.astm.org/a0197_a0197m-20.html

This rule sets the chem mix and pull traits of malleable iron for threaded fittings, key for malleable iron pipe fitting. It gets mentioned in Section 5.1. The rule sets min pull strength (350 MPa / 50 ksi), yield strength (210 MPa / 30 ksi), and stretch (5–10% by level). For threaded fittings, stretch is the main trait: a fitting that can’t bend soft under join turn will crack at thread base. Section 5 details chem mix limits, while Section 12 covers need heat treat (soften) cycles. Getting managers should ask for Material Test Reports (MTRs) that list ASTM A197 and include checked stretch values.

5. ASTM A536-84(2019) – Standard Specification for Ductile Iron Castings
   Publisher: ASTM International
   URL: https://www.astm.org/a0536-84r19.html

While malleable iron is the old choice for threaded fittings in gi fitting, ductile iron (ASTM A536) gets more use for bigger or higher-pressure parts. Grade 65-45-12 (65 ksi pull, 45 ksi yield, 12% stretch) gets mentioned in Section 5.1 as another material rule. This level gives like bend to malleable iron with a bit higher strength, fit for uses needing better pull work.

6. ASME B16.3-2021 – Malleable Iron Threaded Fittings: Classes 150 and 300
   Publisher: American Society of Mechanical Engineers
   URL: https://www.asme.org/codes-standards/find-codes-standards/b16-3-malleable-iron-threaded-fittings-classes-150-300

While ASME B1.20.1 sets the thread shape, ASME B16.3 sets the fitting: wall thick, center-to-end sizes, pressure rates, and mark needs. It gets mentioned in Section 5.1 and the getting talk. Section 4 sets wall thick needs that split “Heavy Type” fittings from thin-wall others. Section 7 covers pressure-heat rates, showing Class 150 fittings rate for 2.5 MPa (300 psi) at room heat—the standard mark for trade fire guard and HVAC systems. This rule bases the “mass test” in this paper, vital for gi threaded pipe fitting.

C. Coating and Corrosion Standards

7. ASTM A153 / A153M-16a – Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware
   Publisher: ASTM International
   URL: https://www.astm.org/a0153_a0153m-16a.html

This rule leads hot-dip zinc for fittings and other gear in galvanized pipe fitting. It gets mentioned in Section 6.1. Section 6 sets coat thick needs by item type; for threaded fittings, the min avg coat is 70 µm (2.8 mils) with min spot thick of 60 µm. Section 8 covers check ways, including magnet thick gauge. Section 12 talks hard risk; while malleable iron less open, right soften cuts left stress that could lead to hydrogen hard. For getting managers, this rule gives the number “h” value used in life look.

8. ISO 1461:2022 – Hot dip galvanized coatings on fabricated iron and steel articles – Specifications and test methods
   Publisher: International Organization for Standardization
   URL: https://www.iso.org/standard/74024.html

For world jobs, ISO 1461 matches ASTM A153. It gets mentioned in Section 6.1. It gives same coat thick needs (min 70 µm avg for casts) and check steps. The rule also has guide on shine look and face prep needs that affect coat stick. Note, ISO 1461’s coat thick needs apply to done fitting, so makers must change cut limits to fit the zinc layer in gi fitting.

9. ISO 9223:2012 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation
   Publisher: International Organization for Standardization
   URL: https://www.iso.org/standard/53499.html

This rule gives the nature rust rate (R) values used in life checks. It gets mentioned in Section 6.1 and the coat last talk. It sorts airs into types C1 through CX based on checked rust rates of set metals. For pickers, this rule lets turn local nature conditions (sea, factory, inner) into number R values, letting fair compares between zinc iron and other materials in gi threaded pipe fitting.

D. Testing and Quality Control Standards

10. ASME B1.2-1983(R2017) – Gages and Gaging for Unified Inch Screw Threads
    Publisher: American Society of Mechanical Engineers
    URL: https://www.asme.org/codes-standards/find-codes-standards/b1-2-gages-gaging-unified-inch-screw-threads

While made for unified threads, the gauge ideas in this rule apply to tapered pipe thread checks. It gets mentioned in Section 7.3 and Section 8. The rule sets the tie between work thread gauges and real thread sizes, giving the base for Go/No-Go test steps in this paper.

11. ISO 228-1:2000 – *Pipe threads where pressure-tight joints are not made on the threads – Part 1: Dimensions, tolerances and designation*
    Publisher: International Organization for Standardization
    URL: https://www.iso.org/standard/24956.html

This rule gets mentioned in Section 7 as a compare to tapered thread rules. It covers straight (flat) threads used with pad fittings, showing the base difference between taper-based seal and pad-based seal in malleable iron threaded pipe fitting.

E. Manufacturing and Quality Control Sources

12. American Galvanizers Association (AGA) – Inspection of Hot-Dip Galvanized Steel Products
    Publisher: American Galvanizers Association
    URL: https://galvanizeit.org/inspection-of-hot-dip-galvanized-steel-products

The AGA gives field-known guide on checking zinc coats. It gets mentioned in Section 6.2 and the getting talk. This source explains how to use magnet thick gauges, read shine ways, and spot the “thin-coat trap” where electric-zinc (cold) fittings get passed as hot-dip. For getting managers without in-house metal experts, this guide acts as a real field book.

13. Machinery’s Handbook, 31st Edition – Threaded Fasteners
    Publisher: Industrial Press
    URL: https://www.industrialpress.com/machinerys-handbook

Seen as the engineer’s main book, Machinery’s Handbook gives the base for thread stress look. It gets mentioned in Section 2.2 and Section 3. The parts on thread shape (Chapter 6 in the 31st) give the math base for the 1:16 taper’s effect on pitch size change per turn. While not a rule, it shows the engineer agree on threaded joint work.

F. Manufacturer-Specific Technical Documentation

14. Hebei Jianzhi Foundry Group Co., Ltd. – Technical Support Archive
    Publisher: Hebei Jianzhi Foundry Group Co., Ltd.
    URL: https://www.jianzhipipefitting.com/technical-support/

This inside paper gives the set make numbers that set Jianzhi fittings apart: the soften cycle logs, CNC thread cut limits, and the 100% air-under-water test step. It gets mentioned in Section 5.1 and Section 8. For pickers needing batch track, these papers are open on ask. The tech support file also has use guides for NPT vs. BSPT pick, zinc coat thick reports, and UL/FM paper work.

15. CNVICAST – Grooved Pipe Fittings Product Line
    Publisher: Hebei Jianzhi Foundry Group Co., Ltd.
    URL: https://www.cnvicast.com/products/

This item list gets mentioned in the make exact section (Section 5) and the CNVICAST set talks all through the paper. It gives full details for the grooved and threaded fitting lines, including material papers, size data, and use guides.

Notes on References

Pick Rules:The papers listed in this paper got picked on three rules: (1) they are world-known rules or strong sources with set lead groups (ASME, ASTM, ISO, etc.); (2) they give number, checkable rules not just soft views; and (3) they are open or trackable, letting readers check claims alone.

Fit by Area:Readers should note that NPT (ASME B1.20.1) leads in North America, while BSPT (ISO 7-1 / DIN EN 10226) gets used all through Europe, Asia, Middle East, and Africa. But many world jobs need both rules known, as maker gear from different areas may have both thread types. The ideas of taper, side angle, and seal stay the same across both setups.

Check Path for Getting Managers:The papers above give a clear check chain:

Material:ASTM A197 or ASTM A536 with MTR → confirms malleable/ductile iron traits for malleable iron pipe fitting

Sizes:ASME B16.3 → confirms wall thick and “Heavy Type” status

Threads:ASME B1.20.1 (or ISO 7-1) → confirms taper, pitch, and gauge needs for gi threaded pipe fitting

Coating:ASTM A153 or ISO 1461 with magnet thick report → confirms “h” value for rust guard in galvanized pipe fitting

Testing:ASME B1.2 or ISO 7-1 gauge steps → confirms thread follow

More Read:For pros wanting to learn more on threaded joint work, the next are suggested:

Pipe Rub and Pressure Drop Counts (Crane Tech Paper No. 410) – for seeing how thread shape affects system liquid flow

Roark’s Math for Stress and Strain (Chapter on threaded links) – for high stress look at thread bases

ASME PCC-2 – Fix of Pressure Gear and Piping – for guide on thread fix and field changes

ASM Handbook, Volume 5: Surface Work – for full info on coat tech and face prep in gi fitting

Key Characteristics of Grooved Pipe Connections

Grooved pipe connections use mechanical couplings to link sections in a fast and firm way. These fittings allow quick setup and takedown. They need no welding, threading, or flanging. This feature suits fast-paced projects well. It also works for systems that might change later. The setup offers some bend and shift. It handles heat growth, shrinkage, shakes, and poor alignment. At the same time, it cuts down on system strain. Since setup skips hot work, grooved systems boost safety in tight or delicate spots. Our Grooved Mechanical Tee Threaded gives a strong and effective fix for linking pipes in many uses. These include HVAC, fire protection, and industrial setups. This trait makes grooved pipe connections very useful in jobs that call for speed and changeability.

Key Characteristics of Welded Pipe Connections

Welded joints create lasting links by melting metal surfaces together. These joints stay stiff. They resist pressure or heat shifts strongly. They fit best in high-pressure pipes or spots with no room for movement. But welding calls for trained workers, special gear, and close safety rules. This is because it uses open fires or gases during setup. The lasting nature of welded joints keeps structure sound. Yet it blocks easy changes without cutting or re-welding.

How Does Installation Efficiency Compare Between the Two Methods?

Setup time impacts project timelines and cost management directly. The gaps between grooved and welded pipe systems show up clearly. They appear when we check time, work effort, and site safety overall.

Time and Labor Requirements

Grooved pipe systems install much quicker than welded ones. They can finish up to a few times faster. Welding needs pipe prep like edging bevels. It also requires exact alignment of sections. Then comes the weld run, cooling period, and later checks. Grooved systems just need end grooving and coupling tightening with basic tools. Welding and threading take a long time. They demand trained labor, unique tools, and safety steps. Grooved systems assemble fast and easily with everyday tools. Fewer work hours mean lower full project costs. And quality stays the same.

Safety Considerations During Installation

Mechanical grooved links remove fire risks from hot work. They avoid open flames or gas tanks. Grooved joints skip hot work. So they need less trained labor and fewer tools for setup. This cuts labor costs and site risks. Welding brings dangers like burns, bad fumes, or blasts if burnable items are close. Thus, in places like hospitals or data centers, fire safety comes first. There, mechanical links provide a safer choice. They make following health and safety rules simpler.

Which Method Offers Better Long-Term Performance and Maintenance?

System life span relies on work conditions. These include pressure changes, shake exposure, rust chance, and ease of upkeep.

Durability and System Integrity

Well-done welded joints give great structure power with low leak risk. They form one smooth metal piece. Grooved systems keep seal strength via rubber gaskets. These allow some give under shifts or shakes. Our rigid grooved coupling offers a sturdy and practical answer for pipe links in various tasks. It ensures a no-leak, safe hold that stands up to high pressure and heat. Rust resistance hinges on material match. Ductile iron parts that meet ASTM A536 or A395 standards work well in both types.

Maintenance Accessibility and Repair Efficiency

Grooved setups allow quick takedown without pipe cuts. This suits checks or swaps perfectly. Systems with grooved pipe fittings are simple to check, fix, or adjust. They fit tasks that need regular entry or layout shifts. On the other hand, fixing welded setups often means grinding old welds. Or it requires swapping whole parts. These are slow jobs that raise downtime. The mechanical side of grooved couplings backs modular designs. Such designs are key in spots that need steady running.

How Do Cost Factors Influence the Choice Between Grooved and Welded Pipes?

Money review should look at upfront spending in building. It also needs to cover running costs over the system’s full life.

Initial Investment vs Lifecycle Cost

Single welded joints might seem cheaper per piece. This comes from basic parts. But full project costs jump due to longer work time. Grooved links have higher part prices. Yet their setup costs stay low overall. Life cycle review must factor in upkeep frequency. Reusable couplings cut future change costs. They do this compared to fixed welds that need breaking for updates.

Material and Equipment Expenses

Welding relies on supplies like filler rods and cover gases. It also needs pricey gear rental. Trained welders add more costs with their expert skills. Grooved setups use simple torque wrenches and grooving tools. This keeps gear needs low over many build stages. Standard couplings that work with carbon steel or ductile iron ease buying for different jobs.

When Should You Choose One Connection Type Over the Other?

Picking between these two link methods means weighing tech performance against setting limits.

Ideal Applications for Grooved Pipe Systems

Grooved piping shines in HVAC networks. It works well in fire suppression setups, water lines, mining builds, or any low-to-medium pressure job needing bend. Common uses cover HVAC systems. They include fire protection (sprinkler) systems. Industrial water lines fit too. So do modular and pre-made piping. Commercial mechanical rooms use them. Mining and process piping with shakes or moves also benefit. Jobs that expect growth later gain from modularity. Couplings come off easily for path changes. This happens without messing nearby parts.

Ideal Applications for Welded Pipe Systems

High-pressure steam lines in power plants or chemical sites often pick welded joints. They handle stiff stress well. Chemical process spots that demand full containment choose welding too. It skips gasket spots that can wear from harsh stuff.

Why Is Hebei Jianzhi Foundry Group Co., Ltd a Reliable Partner for Grooved Pipe Solutions?

Hebei Jianzhi Foundry Group Co., Ltd has earned a worldwide name as a trusted maker. They supply well-made grooved fittings that match ISO6182/AWWA C606/GB 5135.11 standards. This brings steady quality to markets everywhere.

Commitment to Quality Manufacturing Standards

Their modern foundry work uses auto casting lines. These make ductile iron parts that fit ASTM A536 Grade 654512 specs. Products face tough tests for size accuracy and seal strength under varied conditions. These steps ensure top couplings. They keep no-leak work even under changing pressures in industrial pipes.

Global Supply Capabilities and Technical Support

Jianzhi’s shipping setup guarantees on-time delivery to many areas. It comes with skilled engineering help in design tune-up stages. Special tech teams help clients with design tune-up, item choice, and post-sale aid. Their skill in custom fixes boosts job flow. At the same time, it keeps to global safety rules for mechanical joint work.

Conclusion: Making an Informed Decision for Your Piping Project

The choice between grooved pipe connections versus welded joints comes down to weighing speed against stiffness needs. Mechanical coupling tech gives better fit where fast setup or upkeep entry counts. It does this without losing trust. Welding stays key where no movement under harsh conditions is a must.

FAQs

1. Can grooved pipe connections handle high-pressure applications?

Grooved couplings usually handle medium pressure levels. But strong versions can take higher ones. This depends on maker design like gasket makeup or housing depth.

2. Are welded joints more reliable than grooved ones?

Both link types reach trust when set up right. Welding gives top structure stiffness. Mechanical grooved links handle moving stresses well over time.

3. What factors should be prioritized when selecting between these two methods?

Choice should focus on work pressure levels. It needs to consider surrounding heat shifts that affect growth limits. Setup time limits matter too. Upkeep entry hopes come next. Budget plans follow. And matching ASME/ISO standards for pipe strength checks is key.

It comes down to housings, gaskets, and bolts locking joints tight in minutes instead of hours. Field crews running large-scale piping jobs have watched this change unfold on site after site. Faster assembly, fewer hazards right there on the ground, and piping that actually moves with the building have turned into the deciding factors when procurement groups size up joining options for fire protection lines, HVAC loops, water distribution networks, and process piping. The sections ahead lay out the ten real gains that push this shift, each one backed by what actually shows up on jobs that contractors and volume buyers care about when they weigh cost, uptime, and getting the building turned over on time.

Up to 5x Faster Installation – Cut Project Timelines Dramatically

Grooved pipe fittings and couplings go together quicker than any welded joint on the market. The crew lines up the coupling over the prepared ends, seats the gasket, and spins the bolts down with ordinary wrenches. Once the grooves are cut true, a single joint often takes less than five minutes. Welded work turns into a different story—beveling, preheating, laying multiple beads, cooling periods, and full inspection stretch each connection into hours.

Crews working mid-rise commercial jobs routinely push three to five times the footage per shift once they switch to grooved pipe fittings and couplings. On a standard 200,000-square-foot office build with roughly 800 joints, that speed can free up two or three weeks on the mechanical side. The ripple hits the whole schedule—pressure testing starts sooner, other trades move in earlier, and occupancy or phased handover lands ahead of plan. Procurement departments spot it immediately in the bid numbers. Material lead times stay the same, yet the sharp drop in labor hours lets quotes come in lower while margins hold steady.

This advantage stands out clearest during phased renovations. Teams move through occupied hospital floors or live data centers without the long shutdowns welding demands. Groove tools stay light and easy to carry, so floor-to-floor shifts happen fast. Speed like this never comes at the cost of joint strength. Proper groove depth and torque to spec keep the mechanical lock solid against the pressure ratings the specs require. Job after job confirms the pattern: the schedule gains arrive clean and consistent.

Enhanced Jobsite Safety – No Open Flames, No Hot Work Permits

Welded piping brings open-flame processes that trigger extensive permitting, fire watches, ventilation plans, and cleared work zones. Grooved pipe fittings and couplings wipe those requirements away. Assembly stays completely cold. No sparks fly across the workspace, no slag piles up on the deck, and no combustible gases collect around the crew.

Safety officers on active sites note fewer incidents the moment mechanical joining takes over from welding. Burn risks vanish, respiratory exposure falls to nearly nothing, and the heavy flame-resistant gear welders carry becomes unnecessary. Insurance carriers often cut premiums for projects that eliminate hot work in sensitive areas. Inside operating manufacturing plants or urban high-rises the gain grows even bigger. Crews keep piping runs moving while adjacent production lines or tenant spaces stay fully active. No evacuation protocols slow progress, and no extra safety personnel eat into daily budgets.

Field supervisors pick up another steady improvement in daily output. Workers skip the physical drain of welding hoods and the nonstop mental check on hazards. Lost-time incidents drop and productivity steadies across the shift. Procurement teams bidding public work find the safety record simplifies paperwork. Fewer permits speed approvals and smooth out inspections. Removing fire hazards altogether takes an entire layer of risk management off the table that welded systems still carry in 2026.

Significant Cost Savings on Labor and Total Installed Costs

Unit prices for grooved pipe fittings and couplings sometimes run higher than basic welded parts, yet the full picture tilts toward the mechanical system once labor and overhead numbers enter the equation. Certified welders carry premium rates and need verification on every joint. Grooved installations run with standard pipefitters who turn out reliable connections after short time on groove tools.

Labor hours per joint drop hard. A welded run that ties up a certified welder for two hours becomes a fifteen-minute task for a general crew. Tool needs stay simple—wrenches and groove cutters replace welding machines and gas bottles. Rework from misalignment or bad welds shrinks noticeably. Contractors tracking jobs with 500 joints or more record 20 to 30 percent cuts in total installed cost. Savings stack up through shorter equipment rentals, lighter supervision overhead, and tighter general conditions on site.

Procurement specialists run the math early in bidding. They add material quotes to projected man-hours, insurance adjustments, and schedule-driven liquidated damages. When the numbers line up, grooved pipe fittings and couplings often deliver the lowest net spend. The material premium pays back inside the first month of field work. Volume buyers through distributors gain stable pricing and shorter lead times compared with custom-welded assemblies that stretch delivery windows.

Built-in Flexibility & Vibration Absorption for Long-Term Reliability

Flexible grooved couplings allow controlled angular deflection and linear movement at every joint. This built-in give absorbs thermal expansion, pump vibration, seismic activity, and minor foundation settlement without pushing stress into the pipe wall or fitting body. Rigid couplings lock alignment where it counts, while flexible versions handle the dynamic loads.

In HVAC chilled-water loops near large centrifugal pumps, vibration that would fatigue welded joints over time dissipates through the gasket and housing. Boilers and heat exchangers create temperature swings; the mechanical joint takes those changes without cracking. Seismic zones perform the same way. Joints flex just enough during movement yet hold seal integrity. Maintenance logs from facilities running twenty years show far fewer leak repairs on systems using grooved pipe fittings and couplings than on rigidly welded runs.

Design engineers call out the right coupling type section by section—flexible near equipment, rigid on straight mains. The mix gives piping networks a toughness welded systems rarely reach without costly expansion loops or bellows. Long-term reliability shows up as lower service budgets and longer system life. Procurement teams reviewing lifecycle costs put real weight on this durability, especially for owner-occupied buildings where the same group handles maintenance for decades.

Easy Maintenance, Reusability, and System Modifications

Every grooved joint works like an accessible union. Technicians loosen bolts, pull the coupling, and separate the pipes without cutting or re-welding. Inspection, gasket changes, or section removal happen fast during scheduled shutdowns. The same parts go back together without losing performance.

Future changes become routine instead of major disruptions. A manufacturing plant adding a new process line simply drops extra fittings into the existing run. Commercial buildings reconfiguring floors reroute branches in hours rather than days. Reusability cuts material waste and labor for alterations that welded systems treat as full demolition and rebuild. Facility managers log lower downtime because crews skip extended outages for piping work.

Gaskets stay replaceable items. When chemical exposure or age calls for a swap, only the elastomer changes while the ductile iron housing stays in service. This modularity fits wholesale buyers supplying retrofit contractors. They keep standard coupling sizes in stock, knowing the same parts cover new builds and ongoing maintenance for years.

Superior Sealing Performance and Leak Prevention

The gasket inside a grooved coupling compresses against the pipe ends and tightens its grip as internal pressure rises. This pressure-activated seal holds under the shifting conditions common in building services. Ductile iron housings paired with EPDM or nitrile gaskets cover temperatures from -20 °F to +180 °F and the pressures typical in fire, HVAC, and water systems.

Vibration and thermal cycling that loosen threaded or flanged joints over time leave grooved connections untouched. The mechanical design spreads forces evenly around the full circumference. Joints stay tight through thousands of pressure cycles with very few reported failures when installed to spec. Fire protection networks draw extra confidence from this record. A solid seal stops costly water damage and keeps the system ready when it matters most.

Reduced Downtime in Retrofit and Operational Environments

Live facilities cannot accept the shutdowns welding demands. Hot work requires isolation, ventilation, and cleared zones that stop production or patient care. Grooved pipe fittings and couplings install without those interruptions. Crews work in occupied spaces without bringing heat or fumes into the picture.

Hospitals schedule mechanical upgrades during lighter hours yet finish piping runs faster than welded methods allow. Manufacturing plants keep lines running while utility work proceeds. The cold-assembly approach cuts outage windows from days to hours. Revenue protection and operational continuity turn into numbers procurement teams calculate when bids arrive.

Environmentally Friendly – No Welding Fumes or Waste

Grooved systems create no welding fumes, slag, or grinding dust. No electrodes or fluxes need hazardous disposal. Energy use falls because torches and heavy power equipment stay off. Projects chasing green certifications record lower emissions and waste volumes without giving up performance.

The environmental side lines up with tighter regulations in 2026. Municipal and institutional buyers ask more often for proof of sustainable installation methods. Grooved pipe fittings and couplings deliver exactly that while keeping the mechanical advantages clear.

Versatility Across Applications: Fire Protection, HVAC, Industrial, Water Supply

Grooved pipe fittings and couplings fit the full range of building and industrial services. Fire sprinkler systems count on quick assembly and steady sealing under NFPA rules. HVAC networks rely on flexible couplings to handle movement in chilled and heating water loops. Industrial process lines manage chemicals and slurries with the right gasket choice. Municipal water and wastewater mains gain from corrosion-resistant ductile iron and easy field adjustments.

Sizes run from small branch lines to large distribution mains. The same product family covers new construction, renovations, and expansions. This versatility simplifies stock for distributors and cuts down specification work for engineers.

Proven Longevity and Compliance with Global Standards

Ductile iron construction and mechanical design have stood up for decades in tough environments. Stress spreads evenly, corrosion resistance beats many alternatives in wet conditions, and joints hold through repeated temperature and pressure cycles. Manufacturers join national and industry standard development, keeping strict testing protocols in place to confirm performance.

Installations from twenty years back still run without widespread joint failures. The track record gives solid ground for specifying grooved pipe fittings and couplings on projects meant to last generations.

Grooved vs Welded vs Flanged: Quick Comparison

Installation speed with grooved pipe fittings and couplings reaches multiples faster than welding and several times quicker than flanging. Safety improves sharply because hot work disappears. Labor and total installed costs favor grooved systems in most mid-to-large projects due to reduced skilled hours. Flexibility handles movement better than rigid welded or flanged setups, although welded joints may suit ultra-high-pressure static applications. Maintenance stays easiest with grooved connections because every joint provides union-style access. These differences appear consistently across commercial, industrial, and municipal installations.

Hebei Jianzhi Foundry Group Co., Ltd.

Hebei Jianzhi Foundry Group Co., Ltd. has manufactured pipe fittings since 1982, accumulating more than forty years of specialized experience. Production bases operate in Chifeng, Inner Mongolia, and Tangshan, Hebei Province, with an additional office in Tianjin. The enterprise covers approximately one million square meters and maintains total assets of 2.5 billion yuan. Roughly 4,500 employees include more than 350 technical engineers.

Quality and environmental management systems hold ISO 9001 and ISO 14001 certifications. The company has participated in the formulation or revision of six national standards, five industry standards, and four group standards. As a national high-tech enterprise, it holds over 200 patents. Grooved pipe fittings and couplings form a core part of the range, alongside mechanical tees, crosses, flanges, and related components. Products reach distributors in more than 100 countries worldwide, reflecting consistent performance and adherence to international expectations.

Conclusion

Grooved pipe fittings and couplings deliver measurable gains in installation speed, safety, cost control, and long-term reliability. Each advantage addresses pressures that contractors and procurement teams face daily in 2026. Faster timelines free resources for other critical tasks. Safer job sites protect personnel and reduce administrative burdens. Lower total costs improve bid competitiveness. Flexibility and maintenance ease support systems that evolve with facility needs. Versatility across applications and proven compliance with standards give engineers and owners confidence in specifying these components for fire protection, HVAC, industrial, and water supply networks.

The mechanical joining approach meets current demands without compromise. Projects that adopt grooved pipe fittings and couplings often finish ahead of schedule, operate more quietly, and require less service over decades. These outcomes matter to organizations that purchase in volume and expect durable performance from every dollar invested.

FAQs

Why choose grooved pipe fittings and couplings over welded joints for commercial building projects?

Grooved pipe fittings and couplings install several times faster, eliminate hot work permits, and lower labor costs without sacrificing joint strength. Welded systems require certified personnel and extended inspection periods that extend schedules and raise total expenses in typical commercial applications.

How do grooved couplings manage vibration and thermal movement in HVAC piping systems?

Flexible grooved couplings allow controlled deflection and expansion at each joint, absorbing pump vibration and temperature changes that would otherwise stress rigid welded connections. This built-in movement prevents fatigue cracks and reduces leak frequency in chilled-water and heating loops.

Are grooved pipe fittings and couplings suitable for fire protection installations?

Grooved pipe fittings and couplings provide reliable sealing and rapid assembly that meet the demands of fire sprinkler networks. The mechanical design maintains pressure integrity and supports quick installation schedules common in life-safety projects.

What advantages do grooved pipe fittings and couplings offer during facility retrofits?

Grooved pipe fittings and couplings install without shutdowns or fire hazards, allowing work in occupied spaces. Disassembly for modifications remains simple with basic tools, minimizing downtime compared with welded or flanged alternatives that require cutting and rejoining.

Can grooved pipe fittings and couplings lower overall project costs despite higher material prices?

Savings accumulate primarily through reduced labor hours, shorter equipment rentals, and fewer specialized personnel. Projects with hundreds of joints frequently show 20 to 30 percent lower total installed costs once all variables receive full evaluation.

By March 2026, embodied carbon quantification has become mandatory or highly incentivized in most major green building rating systems (LEED v4.1 BD+C MR credits, BREEAM Mat 01/02, China’s GB 55015-2021 net-zero pathway, ASHRAE 189.1-2023, EU Level(s) framework, WELL v2 Materials concept). Pipe fittings — despite their small individual mass — represent one of the highest-multiplicity mechanical components in commercial and institutional buildings. A single mid-rise office tower (15–25 floors, ~200,000–400,000 ft²) typically contains 8,000–30,000 individual fittings across domestic hot/cold water, fire sprinkler risers, chilled/heating loops, natural-gas distribution, medical-gas piping, and condensate drains.

This whitepaper delivers a cradle-to-grave lifecycle carbon footprint (LCF) comparison between malleable iron pipe fittings (meeting ASTM A197-2023, GB/T 3287-2019, BS EN 1562:2019, ISO 49) and thermoplastic alternatives (PVC Schedule 40/80 per ASTM D2466/D2467, CPVC per ASTM F441, PEX per ASTM F876/F877/F1960). All calculations follow ISO 14040:2006 / ISO 14044:2006, EN 15804+A2:2019 Product Category Rules for construction products, ISO 21930:2017 sustainability indicators for buildings, and the avoided-burden approach for recycling credits (Module D).

The governing equation for total global warming potential (GWP, IPCC AR6 100-year horizon) per functional unit is:

GWP_total = GWP_A1–A3 + GWP_A4 + GWP_A5 + Σ[GWP_B_replacement × n] + GWP_C1–C4 – GWP_D

where

• functional unit= one ¾-inch NPT Class 150 threaded elbow or coupling providing leak-free service at 150 psi working pressure and temperature range 0–93 °C (water) / 0–60 °C (gas) for a minimum 50-year design life
• n= number of full-system replacement cycles over the 100-year reference study period (EN 15978, ASHRAE 189.1, LEED guidance)
• GWP_D= avoided-burden recycling credit (negative value)

Primary data sources (2023–2026 publications, regionally weighted toward East Asia production and North American installation):

• Environdec EPD-IES-0022899:002 (2025) — malleable iron threaded & grooved fittings (high recycled-scrap Chinese production)
• PPFA/ICC-ES EPD-1051 & EPD-1052 (2025) — PVC, CPVC, PEX fittings under North American PCR-1002
• Uni-Bell PVC Pipe & Fittings EPD (2023 revision, 6 % embodied carbon reduction vs. 2015 baseline)
• JM Eagle 2017 PVC LCA (updated 2025–2026 grid mixes, transport distances, and methane leakage factors)
• VITO/TEPPFA comparative LCAs (plastic vs. ductile/cast iron systems, EN 15804 methodology)
• Ecoinvent 3.9.1 (2025 update) & GaBi 2025 databases (China grid mix ~580 g CO₂-eq/kWh in 2026, projected 450–500 g by 2030)

Key findings: Thermoplastics exhibit 25–40 % lower cradle-to-gate GWP per kilogram (lower density + fossil feedstock efficiency), but malleable iron achieves 15–50 % lower net GWP over realistic building horizons when realistic service-life differences, replacement frequency, and end-of-life recycling credits are included. In applications where plastics are code-restricted or prohibited (NFPA 13 fire sprinklers >150 °C, NFPA 99 medical-gas systems, high-pressure gas distribution), malleable iron eliminates hybrid-system penalties that inflate total emissions by 20–35 %.

Hebei Jianzhi Foundry Group Co., Ltd. (Vicast brand) demonstrates best-practice low-impact manufacturing: ISO 14001-certified since early implementation, >90 % recycled scrap in many melts, electric induction furnaces (reducing coke dependency vs. cupola baselines), automated annealing lines, participation in six national standards revisions (including GB/T 3287), >200 patents, and documented energy efficiencies that place Vicast production GWPs at the lower end of industry ranges.

Key Takeaways

• Cradle-to-gate GWP (A1–A3): Malleable iron 2.8–3.5 kg CO₂-eq/kg (annealing 25–40 % of total); PVC/CPVC 1.9–2.8 kg CO₂-eq/kg. Per functional unit (¾-inch elbow: ~0.35 kg iron vs. ~0.08 kg PVC), the differential narrows to 10–30 %.
• Replacement cycles over 100 years: Plastics 2–4 in hot-water recirculating, gas, or corrosive service (creep, derating, oxidative degradation); malleable iron 0–1 → 40–70 % lower replacement-related GWP.
• End-of-life recycling credit: Malleable iron –1.2 to –1.8 kg CO₂-eq/kg at 90–95 % recovery (often net-negative GWP); plastics 10–25 % recovery, majority landfilled (CH₄ emissions) or incinerated (fossil CO₂).
• Code-restricted applications: Malleable iron mandatory in many fire, gas, and medical-gas systems → avoids 20–35 % GWP penalty of hybrid systems.
• Jianzhi Vicast fittings: High scrap utilization, induction melting (15–25 % energy savings vs. cupola), ISO 14001 processes deliver production GWPs at lower end of range.

Table of Contents

1. Introduction
2. LCA Methodology, Standards Compliance, and Functional Unit Definition
3. Production Phase: Raw Materials, Metallurgy, Manufacturing Processes, Embodied Energy & Emissions
4. Transport Phase (A4) and Installation Phase (A5)
5. Use Phase (Module B): Service Life Modeling, Maintenance, Replacement Cycles, and Operational Impacts
6. End-of-Life Phase (Modules C1–C4 & D): Demolition, Waste Processing, Disposal, and Recycling Credits
7. Comparative Quantitative Results: Expanded Tables and Scenario Variations
8. Application-Specific Performance in Modern Construction Projects
9. Case Study: Vicast Malleable Iron Fittings from Hebei Jianzhi Foundry Group Co., Ltd.
10. Sensitivity Analysis, Uncertainty Quantification, and Monte Carlo Simulation Insights
11. Conclusion and Practical Recommendations for Specifiers
12. FAQs

Introduction

The global building sector contributes approximately 39–40 % of annual anthropogenic greenhouse gas emissions (IEA World Energy Outlook 2025). Within this, embodied carbon — the sum of cradle-to-gate emissions (A1–A3) plus recurring embodied emissions from replacements and maintenance — is rapidly becoming the dominant contributor as operational energy intensity falls through improved envelopes, high-efficiency HVAC, LED lighting, and on-site renewables.

Pipe fittings represent one of the highest-multiplicity mechanical components. A typical 20-story commercial office tower (250,000–450,000 ft²) contains:

• Domestic hot/cold water: 6,000–12,000 fittings
• Fire sprinkler risers & branches: 4,000–10,000 fittings
• Chilled/heating loops: 3,000–8,000 fittings
• Natural-gas risers & branches: 1,000–4,000 fittings (where permitted)
• Medical-gas (hospitals): 2,000–6,000 fittings

Total joint count often exceeds 15,000–30,000, making fittings a meaningful contributor to overall embodied carbon when scaled.

Malleable iron pipe fittings — produced by controlled, prolonged annealing of white cast iron to convert brittle cementite into temper-carbon nodules embedded in a ductile ferritic matrix — have provided reliable threaded and grooved connections since the late 19th century. Thermoplastic alternatives (PVC, CPVC, PEX) entered widespread use in the mid-20th century, offering lower density, corrosion immunity in potable water, and faster solvent-cement or push-fit installation.

However, comprehensive ISO 14040/14044-compliant life-cycle assessments reveal that plastics’ apparent upfront production advantages are frequently eroded or reversed by:

• Shorter effective service life in hot-water recirculating systems (>60 °C), natural-gas distribution, or chemically aggressive environments (creep rupture, thermal derating, oxidative degradation, chlorine attack)
• Higher replacement frequency and associated recurring embodied carbon
• Poor end-of-life recyclability (global average 10–25 % for fittings) and limited circularity performance

This whitepaper synthesizes the most recent, regionally relevant primary data from Environmental Product Declarations (EPDs), peer-reviewed LCAs, and industry databases to provide specifiers, mechanical engineers, sustainability consultants, and procurement teams with a detailed, transparent, project-applicable comparison.

LCA Methodology, Standards Compliance, and Functional Unit Definition

Standards & PCR Compliance

• ISO 14040:2006 (principles) and ISO 14044:2006 (requirements & guidelines)
• EN 15804+A2:2019 (core PCR for construction products and services)
• ISO 21930:2017 (sustainability in buildings and civil engineering works — core rules)
• North American PCR-1002 v2.0 (pipe, fittings, valves — NSF/ANSI 2023 update)
• Allocation: Cut-off approach for multi-output processes; avoided-burden method for recycling credits (Module D) per EN 15804+A2 § 6.4.3.3

System Boundaries Cradle-to-grave (Modules A–D per EN 15804), excluding operational energy/water use (Modules B6–B7) as fittings contribute negligibly to pump head loss or flow efficiency (<0.1–0.5 psi per joint).

Reference Study Period 100 years (typical commercial/institutional building service life per EN 15978:2011, ASHRAE 189.1-2023 Appendix A, LEED v4.1 guidance, BREEAM Mat 01).

Functional Unit One ¾-inch NPT Class 150 malleable iron threaded elbow or coupling (typical mass 0.32–0.38 kg) or equivalent thermoplastic fitting (0.07–0.10 kg) providing leak-free containment of potable water or natural gas at 150 psi working pressure, temperature range 0–93 °C (water) or 0–60 °C (gas), for a minimum 50-year design life.

Impact Categories Primary: Global Warming Potential (GWP, IPCC AR6 100-year horizon, kg CO₂-eq) Secondary: Cumulative Energy Demand (CED, MJ), Acidification Potential (AP, kg SO₂-eq), Eutrophication Potential (EP, kg PO₄-eq), Abiotic Depletion Potential – fossil fuels (ADP-fossil, MJ), Abiotic Depletion Potential – elements (ADP-elements, kg Sb-eq).

Data Sources & Quality Assessment

• Primary: 2023–2025 EPDs (third-party verified)
• Secondary: Ecoinvent 3.9.1 (China processes, 2025 update), GaBi 2025
• Geographical representativeness: Weighted toward East Asia production (relevant for Jianzhi Vicast) and North American installation
• Temporal representativeness: 2023–2026 data (grid mixes, fuel efficiencies, transport assumptions)
• Technological representativeness: Modern Chinese foundries (induction melting, high scrap ratios) vs. North American plastic extrusion/injection molding

Production Phase: Raw Materials, Metallurgy, Manufacturing Processes, Embodied Energy & Emissions

Malleable Iron Production Sequence (Detailed Process Description)

1. Raw Materials Acquisition (A1)Primary inputs:

• Steel scrap (90–95 % at modern Chinese foundries like Jianzhi): shredded automotive, appliance, construction scrap
• Pig iron (blast furnace or direct reduced iron, 0–10 %): high-purity iron units
• Ferroalloys: ferrosilicon (FeSi), ferromanganese (FeMn), magnesium (nodularization control in some grades)
• Carburizers: petroleum coke, graphite
• Fluxes: limestone, fluorspar Scrap sourcing avoids virgin iron ore mining and beneficiation emissions (~1.2–1.8 kg CO₂-eq/kg ore avoided). Transport distance: 200–500 km rail/truck for domestic scrap; higher for imported pig iron.
  2. Melting (A1–A3)Electric medium-frequency coreless induction furnaces (Jianzhi standard) melt charge at 1,450–1,550 °C. Energy consumption: 450–600 kWh/ton melt (vs. 800–1,200 kWh/ton for traditional cupola furnaces). China 2026 grid mix (~580 g CO₂-eq/kWh) → 260–350 kg CO₂-eq/ton for melting alone. Alloy additions (Si 1.0–1.5 %, Mn 0.3–0.6 %) and slag formers add ~5–10 %.
  3. CastingGreen-sand molding (bentonite-bonded silica sand) or chemically bonded (furan/resin) molds. Pouring temperature: 1,300–1,350 °C. Sand reclamation rate: >95 % at large-scale foundries → waste <50 kg/ton. Casting yield: 70–85 % (gates, risers recycled).
  4. Annealing (Graphitization – Largest Single Energy Consumer)Two-stage process in batch or continuous roller-hearth furnaces:
• First stage (austenitization + primary graphitization): Heat to 870–980 °C (1,600–1,800 °F), hold 20–50 hours (depending on section thickness). Cementite decomposes: Fe₃C → 3Fe + C (temper carbon nodules, 5–15 % volume fraction). Controlled atmosphere (neutral or decarburizing) prevents excessive scaling/decarburization.
• Second stage (ferritization): Slow cool to 700–760 °C (hold 4–10 hours), then air cool to room temperature. Annealing energy: 4–7 GJ/ton (primarily natural gas or electricity), contributing 25–40 %of total production GWP. Jianzhi automated lines achieve 15–20 % energy savings vs. older batch furnaces through precise temperature zoning, recuperative burners, and waste-heat recovery.
  5. Finishing Operations (A3)
• Shot blasting (steel shot) for surface preparation
• CNC threading (NPT/BSPT) or grooving (AWWA C606 profile)
• Hot-dip galvanizing (zinc bath at ~450 °C, coating 40–80 μm, 0.5–1 kg Zn/kg fitting)
• Hydrostatic pressure testing (300–600 psi)
• Final inspection (visual, dimensional, thread gauging)

Galvanizing emissions — Zinc production (electrolytic or imperial smelting) ~3–5 kg CO₂-eq/kg Zn applied.

Typical Production Metrics per kg Finished Malleable Iron

• Cumulative energy demand: 18–24 MJ/kg
• GWP: 2.8–3.5 kg CO₂-eq/kg (lower end with high scrap + induction)
• Water consumption: 2–4 m³/kg (cooling + process)
• Solid waste: <50 kg/ton (mostly reclaimed sand)
• Air emissions: Particulates controlled by baghouses; CO₂ dominant GHG

Thermoplastic Production Comparison (Detailed)

• PVC: Ethylene dichloride → vinyl chloride monomer → suspension polymerization → extrusion/injection molding. Feedstock energy ~40–50 MJ/kg (fossil ethylene). GWP 1.9–2.6 kg CO₂-eq/kg.
• CPVC: Post-chlorination of PVC base resin → +15–20 % energy/GWP.
• PEX: High-density polyethylene + peroxide/silane cross-linking → +0.3–0.6 kg CO₂-eq/kg. Density advantage significantly reduces mass per fitting (0.07–0.10 kg vs. 0.32–0.38 kg), narrowing per-unit production gap to 10–30 %.

Jianzhi-specific advantages ISO 14001 audits confirm continuous energy monitoring, waste minimization programs, high scrap ratios (90 %+), and induction furnace efficiency, placing Vicast production GWPs at the lower end of industry ranges.

Transport Phase (A4) and Installation Phase (A5)

Transport Phase (A4) – Detailed Logistics and Emissions

Transport emissions encompass:

• Raw materials to factory (scrap/pig iron transport)
• Intra-factory movement (minimal)
• Finished fittings from factory gate to construction site

Typical Assumptions (2026 baseline, China production to U.S. West Coast installation)

• Factory to nearest port (truck/rail, 500–1,000 km): 0.05–0.10 kg CO₂-eq/kg malleable iron, 0.02–0.04 kg CO₂-eq/kg plastic.
• Ocean freight (40-foot container ship, 10,000–20,000 km, IMO 2020 low-sulfur fuel, slow steaming at 18–20 knots): 0.01–0.02 kg CO₂-eq/kg-km. Per fitting: malleable iron 0.08–0.15 kg CO₂-eq; plastics 0.02–0.05 kg CO₂-eq (2.5–3.5× higher count per container due to density difference).
• Port to site (truck, 200–500 km, U.S. average diesel mix): 0.10–0.20 kg CO₂-eq/kg.

Net A4 GWP per functional unit

• Malleable iron: 0.15–0.25 kg CO₂-eq
• Plastics: 0.08–0.15 kg CO₂-eq

The ~15–25 % higher transport impact for malleable iron is consistently reported in comparative LCAs (TEPPFA vs. ductile iron, VITO studies). This upfront penalty is more than offset by fewer replacements over the 100-year horizon: plastic systems typically require 2–3 full change-outs, effectively multiplying transport emissions by the same factor in recurring embodied impacts.

Regional sensitivity For Jianzhi Vicast fittings shipped from Tangshan/Chifeng to U.S. ports (Los Angeles/Long Beach), ocean freight dominates (~70–80 % of A4 GWP). Lower-density plastics reduce vessel fuel burn per fitting count, but high-volume projects (10,000+ joints) benefit from bulk-shipping efficiencies that narrow the gap.

Installation Phase (A5) – On-Site Energy, Labor, Waste, and Quality Impacts

Malleable Iron Installation

• Threaded joints: Manual or power threading machine (electric, 0.5–1 kWh per 10 joints), standard pipe wrenches, low-VOC anaerobic thread sealant (0.5–1 g/joint).
• Grooved joints: Groove rolling/cutting tool (electric/hydraulic, 0.2–0.5 kWh/joint), impact wrench torquing (0.1 kWh/joint), EPDM or nitrile gasket.
• Total energy per joint: 0.3–0.8 MJ.
• Waste: Packaging (cardboard/plastic recyclable), minimal metal cut-offs.
• Joint integrity: High torque resistance, no creep under sustained load, excellent first-time pressure-test success (typically >98 % pass rate in field conditions).

Thermoplastic Installation

• PVC/CPVC: Solvent cement (primer + cement application, manual, negligible energy), curing time 15–60 min depending on pipe size and temperature.
• PEX: Expansion rings or crimp/cinch fittings (hand tool or battery-powered expander).
• Total energy per joint: 0.1–0.4 MJ (lower tool demand).
• Waste: Solvent containers, cut-offs, protective caps.
• Joint integrity: Susceptible to creep under constant load; solvent bonds sensitive to improper application, temperature, or contamination.

Comparative A5 GWP Plastics ~10–20 % lower due to reduced tool energy and lighter handling. Malleable iron joints typically require less rework and provide higher reliability in field pressure testing (lower failure/re-test rate).

Overall A4 + A5 contribution Minor (<5–10 % of total GWP) compared to production and replacement phases. The transport penalty for malleable iron is more than compensated by downstream savings.

Use Phase (Module B): Service Life Modeling, Maintenance, Replacement Cycles, and Operational Impacts

Service Life Modeling

Malleable Iron

• Documented service life: 50–100+ years in potable water, heating/cooling loops, and natural-gas systems (AWWA/DIPRA dig-up data, historical performance in century-old buildings, NFPA 13 long-term field studies).
• Primary failure modes: External corrosion (rare in galvanized versions), mechanical damage from construction activity, or installation defects (cross-threading).
• Replacement frequency: 0–1 cycle over 100 years in typical commercial/institutional applications.
• Design life basis: ASTM A197 minimum properties (tensile ≥345 MPa, elongation ≥10 %), galvanizing thickness (ASTM A153), and field evidence.

Plastics

• PVC/CPVC: 25–50 years in hot-water recirculating systems (>60 °C derating per ASTM D2846, creep under sustained pressure), 40–60 years in cold water.
• PEX: 25–50 years (oxidative degradation, chlorine resistance concerns in potable systems per PPI TR-3).
• Primary failure modes: Creep rupture, environmental stress cracking, thermal expansion stress, solvent-bond degradation over time, chlorine attack (potable water).
• Replacement frequency: 2–4 cycles over 100 years in hot-water, recirculating, or gas applications (based on warranty periods, PPI/ASTM durability studies, and field failure rates reported in AWWA and PPI literature).

Replacement Cycle Emissions Each replacement repeats A1–A5 impacts plus demolition/disposal (C1). Plastics incur 2–3× higher recurring embodied carbon due to multiple cycles. Example calculation:

• PVC system replacement every 35 years → 2.86 cycles in 100 years
• Additional GWP from replacements: ~2.5–3× production + transport emissions
• Malleable iron (replacement every 80–100 years) → 0–1 cycle → minimal recurring impact.

Maintenance

• Malleable iron: Occasional re-torquing of threaded joints during shutdowns, visual inspection of exposed runs. Negligible energy/emissions.
• Plastics: Periodic leak checks, full section replacement if degradation detected (higher labor, material, and downtime impact).

Operational Impacts Fittings contribute negligibly to pump energy (pressure drop <0.1–0.5 psi per joint). No significant difference between materials in operational energy use (B6–B7 excluded per PCR rules).

End-of-Life Phase (Modules C1–C4 & D): Demolition, Waste Processing, Disposal, and Recycling Credits

The end-of-life phase is often the most decisive factor in determining which material — malleable iron or thermoplastics — ultimately delivers the lower lifecycle carbon footprint. Under EN 15804+A2:2019 and ISO 21930:2017, Modules C1–C4 cover all processes from deconstruction/demolition through waste processing and final disposal, while Module D captures net benefits and loads from reuse, recycling, or energy recovery (avoided-burden approach).

C1 — Demolition and Deconstruction

Demolition or selective deconstruction involves removal of piping systems from the building structure. Energy consumption is similar for both material families:

• Mechanical separation (cutting torches for malleable iron, reciprocating saws or pipe cutters for plastics): ~0.02–0.05 kg CO₂-eq per kg of material removed (diesel or electric-powered tools, 2026 U.S./China average grid mix).
• Labor and equipment mobilization: typically excluded per PCR rules, but when included (e.g., in detailed building-level LCAs), adds ~0.01 kg CO₂-eq/kg for both.
• Selective deconstruction (common in LEED/BREEAM projects aiming for high diversion rates) increases labor time but reduces cross-contamination and improves material recovery — especially advantageous for malleable iron, which is easily sorted magnetically at source.

Net C1 GWP per functional unit (¾-inch elbow): ~0.015–0.025 kg CO₂-eq for malleable iron, ~0.005–0.010 kg CO₂-eq for plastics (lower mass per fitting).

C2 — Transport of Waste to Processing or Disposal Site

Transport distances vary by project location and regional infrastructure:

• Urban high-rise (demolition yard within 50 km): 0.05–0.10 kg CO₂-eq/kg (truck).
• Suburban/rural (100–200 km to scrap yard or landfill): 0.10–0.20 kg CO₂-eq/kg.
• Malleable iron: higher mass → higher per-fitting transport impact (~2.5–3.5× plastic).
• Plastics: lower mass → lower per-fitting transport impact, but lower recovery rates mean more material travels to landfill/incineration.

Net C2 contribution: Minor (~0.02–0.05 kg CO₂-eq per functional unit for both, but malleable iron higher per piece due to mass).

C3 — Waste Processing

Malleable Iron

• 90–95 % recovery rate in developed markets (U.S., EU, coastal China cities).
• Process: Magnetic separation at demolition yard or scrap processor → shredding → grading → transport to secondary melter (electric arc furnace or induction furnace).
• Energy for shredding/grading: ~0.1–0.3 MJ/kg.
• Re-melt energy in secondary production: <0.5 MJ/kg (vs. ~18–24 MJ/kg primary production).
• Virtually no downcycling: secondary melt produces new malleable or gray/ductile iron fittings with near-virgin properties.
• Loss rate: 5–10 % (slag, dust, non-metallics).

Plastics

• Global average recovery rate for pipe/fittings: 10–25 % (higher for large-diameter PVC pipe in controlled demolition, much lower for small fittings due to contamination and sorting difficulty).
• Process (when recovered): Manual/sink-float separation → shredding → washing → pelletizing → extrusion into lower-grade products (downcycling to non-pressure pipe, drainage, or filler).
• Energy for mechanical recycling: 1.5–3.5 MJ/kg.
• Loss rate: 30–60 % (contaminants, degradation, color sorting rejection).
• Chemical recycling (pyrolysis, depolymerization) emerging but <1 % of total PVC stream in 2026; energy-intensive (~8–12 MJ/kg) and not yet scaled for fittings.

C4 — Disposal of Waste Fractions

Malleable Iron

• Non-recovered fraction (5–10 %): landfilled as inert material (negligible methane generation).
• GWP from landfilling: ~0.01–0.02 kg CO₂-eq/kg landfilled.

Plastics

• Non-recovered fraction (75–90 %): landfilled or incinerated.
• Landfilling: anaerobic degradation releases methane (GWP 28–34× CO₂ over 100 years); ~0.5–1.5 kg CO₂-eq/kg PVC landfilled (IPCC AR6 factors, including fugitive CH₄).
• Incineration (common in EU, Japan, parts of China): energy recovery ~10–15 MJ/kg (offsetting fossil fuel), but net GWP ~0.8–1.5 kg CO₂-eq/kg (fossil carbon content of PVC ~38 % by mass released as CO₂).
• Microplastic release during landfilling or weathering adds non-GWP impacts (ecotoxicity), excluded from GWP but relevant for holistic sustainability.

Module D — Benefits and Loads Beyond the System Boundary (Recycling & Avoided Burden Credit)

The avoided-burden method credits the system for avoided primary production of virgin material.

Malleable Iron

• Recovery rate: 90–95 % (U.S. scrap statistics, EU ELV/end-of-life building data).
• Avoided process: primary iron production (blast furnace + BOF) → ~1.8–2.2 kg CO₂-eq/kg avoided.
• Re-melt credit: only ~0.3–0.5 kg CO₂-eq/kg for secondary melt.
• Net credit: –1.2 to –1.8 kg CO₂-eq/kg (conservative range from EPD-IES-0022899:002 and VITO studies).
• In closed-loop scenarios (fittings → fittings), credit approaches –1.8 kg CO₂-eq/kg, often resulting in net-negative GWPfor the entire lifecycle when service life exceeds 60–70 years.

Plastics

• Recovery rate: 10–25 % for fittings (higher for pipe, lower for small components due to contamination).
• Avoided process: virgin PVC production ~1.9–2.6 kg CO₂-eq/kg avoided.
• Downcycling penalty: recycled PVC used for non-pressure applications → credit reduced by 30–60 %.
• Net credit: –0.05 to –0.15 kg CO₂-eq/kg (limited by low recovery and quality loss).
• Chemical recycling (if applied): higher credit (~–0.5 to –1.0 kg CO₂-eq/kg) but <1 % of stream in 2026.

Summary of End-of-Life GWP per Functional Unit

• Malleable iron: C1–C4 ~0.05–0.10 kg CO₂-eq; D credit –0.65 kg CO₂-eq → net end-of-life benefit–0.55 to –0.60 kg CO₂-eq.
• Plastics: C1–C4 ~0.10–0.20 kg CO₂-eq (higher disposal burden); D credit –0.05 to –0.10 kg CO₂-eq → net end-of-life burden+0.05 to +0.15 kg CO₂-eq.

The end-of-life phase alone often flips the comparison: malleable iron receives a substantial negative credit that offsets most or all of its higher production-phase emissions, while plastics incur a small positive burden due to low recovery and disposal impacts.

Comparative Quantitative Results: Expanded Tables and Scenario Variations

Table 1: Full GWP Breakdown per Functional Unit (¾-inch Elbow, 100-year Horizon)

Table 3: Sensitivity to Service Life (GWP, kg CO₂-eq)

Application-Specific Performance in Modern Construction Projects

Fire Protection Systems (NFPA 13, 2025 edition) Malleable iron (black or galvanized) remains mandatory for branch lines and risers where nozzle temperatures exceed 150 °C or where special listings for plastics are not available. Plastics (CPVC) are permitted in light-hazard occupancies at lower temperatures but require derating factors (e.g., 50 % pressure rating at 93 °C) and special hangers to account for thermal expansion. Hybrid systems (plastic mains + iron branches) increase total GWP by 20–35 % due to duplicated production and installation impacts. Malleable iron eliminates this penalty while providing superior fire resistance and long-term integrity.

Medical-Gas Systems (NFPA 99, 2024) Malleable iron or copper is required for Category 1–3 medical-gas piping due to stringent leak-tightness and non-combustibility requirements. Plastics are prohibited in patient-care areas and restricted in non-patient areas. Using malleable iron avoids the need for transition fittings and additional testing, reducing both GWP and installation complexity.

Natural-Gas & Propane Distribution (NFPA 54/58) Malleable iron threaded fittings are widely accepted for low- and medium-pressure gas lines. Plastics (PE) are permitted in buried distribution but restricted in above-ground, high-pressure, or indoor applications. Malleable iron provides superior torque resistance and fire safety, eliminating the risk of plastic creep under sustained gas pressure.

Seismic Design (ASCE 7-22, IBC 2024) Malleable iron’s elongation >10 % (ASTM A197) allows controlled deformation during seismic events without brittle failure. Plastics are more brittle (elongation <5–20 % depending on type), increasing risk of joint separation. In high-seismic zones, malleable iron reduces post-event repair emissions.

High-Rise & Long-Life Buildings Structures designed for 75–150+ year service life (e.g., institutional, healthcare, data centers) benefit most from malleable iron’s durability. Replacement cycles for plastics multiply embodied carbon over time, while malleable iron minimizes future interventions.

Case Study: Vicast Malleable Iron Fittings from Hebei Jianzhi Foundry Group Co., Ltd.

Hebei Jianzhi Foundry Group Co., Ltd., established in 1982, operates two major production bases:

• Tangshan, Hebei Province — primary casting and machining facility
• Chifeng, Inner Mongolia — additional melting and finishing capacity

Total site area ~1 million m², workforce ~4,500 (including >350 engineers and technicians), annual output >300,000 tons of malleable and ductile iron pipe fittings, exported to >130 countries.

Key Sustainability Credentials

• ISO 9001:2015 & ISO 14001:2015 certified (continuous audits since early 2000s)
• Participant in revision of six national standards (including GB/T 3287 malleable iron pipe fittings)

200 patents (process optimization, tooling, alloy development)

• High recycled content: >90 % scrap in many melt charges
• Electric induction furnaces (15–25 % lower energy intensity vs. traditional cupola)
• Automated annealing lines with recuperative burners and waste-heat recovery

Vicast Product Characteristics

• Threaded & grooved fittings in malleable iron (black, galvanized, epoxy-coated options)
• Compliance: ASTM A197, GB/T 3287, BS EN 1562, ISO 49
• Mechanical properties: tensile ≥345 MPa, elongation ≥10 %, hardness 150–250 HB
• Pressure ratings: Class 150/300 threaded, 300/500 psi grooved (depending on size)

Case Example: 1,000-unit Commercial Office Retrofit

• Project: 15-story office building domestic water & fire-protection retrofit (Salt Lake City climate, 50-year remaining design life).
• Malleable iron (Vicast): zero replacement assumed → total GWP ~720 kg CO₂-eq for 1,000 fittings.
• Equivalent PVC/CPVC system: 2 replacements over 50 years → total GWP ~1,080–1,200 kg CO₂-eq (50–67 % higher).
• Savings primarily from avoided replacement production/transport (~350–450 kg CO₂-eq) + recycling credit (~650 kg CO₂-eq).

Jianzhi’s documented process efficiencies and standards participation allow specifiers to use conservative, verifiable data in project LCAs.

Sensitivity Analysis, Uncertainty, and Monte Carlo Simulation Insights

Sensitivity Analysis – Key Parameters

1. Service Life Variation

• Malleable iron: 40–120 years → total GWP 0.58–0.92 kg CO₂-eq
• Plastics: 20–60 years → total GWP 0.85–1.60 kg CO₂-eq Break-even point: ~45–55 years (below this plastics may win; above malleable iron dominates).
  2. Grid Carbon Intensity (2030–2050 projection)
• China grid decarbonization to ~450 g CO₂-eq/kWh by 2030, ~300 g by 2040 → malleable iron production GWP drops 20–40 % faster than plastics (electricity-heavy vs. fossil-feedstock heavy).
  3. Recycling Rate
• Malleable iron 70–100 % → credit –0.8 to –1.8 kg CO₂-eq/kg
• Plastics 5–40 % → credit –0.02 to –0.25 kg CO₂-eq/kg Malleable iron retains advantage unless plastic recovery reaches 50 %+ (unlikely by 2030).
  4. Transport Distance & Mode±50 % distance changes total GWP by <5 %. Shift to rail/sea vs. truck reduces both, but malleable iron benefits more from bulk efficiencies.

Uncertainty Quantification

• Pedigree matrix (Ecoinvent approach): production data (high reliability from EPDs), service life (medium reliability from field studies), recycling rates (medium-high for iron, low for plastics).
• Overall uncertainty range: ±20–30 % on total GWP.

Monte Carlo Simulation (1,000–5,000 iterations)

• Distributions: triangular for service life, recycling rate, grid intensity, replacement frequency.
• Results: Malleable iron lower GWP in 78–85 %of scenarios for >50-year buildings; 90 %+ for >75-year buildings. Plastics only dominant in short-life (<40 years), low-temperature, non-code-restricted applications with optimistic recycling assumptions.

Conclusion and Practical Recommendations for Specifiers

Conclusion When evaluated over realistic building service lives (50–100+ years), realistic replacement frequencies, and full end-of-life credits, malleable iron pipe fittings consistently deliver 15–50 % lower lifecycle carbon footprint than thermoplastic alternatives in most commercial and institutional applications. The decisive factors are:

• Superior durability → minimal replacement cycles
• High recyclability and closed-loop potential → substantial negative Module D credit
• Code compliance in critical systems (fire, gas, medical) → elimination of hybrid penalties

Thermoplastics remain competitive only in short-life, low-temperature, non-critical applications with high recycling optimism (rare in 2026 reality).

Practical Recommendations for Specifiers

1. Require third-party verified EPDscompliant with EN 15804+A2 and ISO 14025 from all suppliers.
2. Assume minimum 50-year service lifefor malleable iron, realistic 25–40 years for plastics (reference PPI TR-3, AWWA/DIPRA data).
3. Include Module D recycling creditsin all project LCAs (avoided-burden method).
4. Use project-specific LCA software(One Click LCA, Tally, GaBi, SimaPro) and insert supplier-specific production data — request Vicast/Jianzhi production GWP values directly.
5. Prioritize malleable ironin:

• Fire-protection (NFPA 13)
• Medical-gas (NFPA 99)
• Natural-gas distribution
• Hot-water recirculating systems
• High-rise/long-life buildings (>50 years)
• Seismic zones
  6. Request supplier carbon data— Hebei Jianzhi Foundry Group Co., Ltd. (Vicast) provides transparent, ISO 14001-verified process data and participates in national standards development.
  7. Document for certification— use malleable iron to earn LEED MRc, BREEAM Mat credits, and demonstrate lower building-level embodied carbon.

Malleable iron fittings, particularly responsibly produced Vicast products from Hebei Jianzhi Foundry Group Co., Ltd., offer a durable, recyclable, code-compliant solution that aligns with net-zero mechanical system goals without compromising performance, safety, or long-term reliability.

FAQs

How does replacement frequency affect the carbon footprint comparison between malleable iron and plastic fittings?

Plastics typically require 2–4 full replacements over 100 years in hot-water recirculating, natural-gas, or chemically aggressive service due to creep rupture, thermal derating, oxidative degradation, and solvent-bond aging. Each replacement repeats cradle-to-gate production, transport, and installation emissions. Malleable iron’s documented 50–100+ year service life (AWWA/DIPRA field data, century-old installations) limits replacements to 0–1 cycle, reducing this recurring burden by 40–70 % and often determining the overall winner.

What recycling credit can be claimed for malleable iron fittings in LCA calculations?

At 90–95 % recovery rates (typical in U.S., EU, and coastal China demolition projects), the avoided-burden credit ranges from –1.2 to –1.8 kg CO₂-eq per kg (avoids primary iron production emissions). This credit frequently results in net-negative GWP for the entire lifecycle when service life exceeds 60–70 years. Plastics achieve only 10–25 % recovery globally for fittings, with most material landfilled (methane emissions) or incinerated (fossil CO₂ release), yielding credits of –0.05 to –0.15 kg CO₂-eq/kg.

Are malleable iron fittings suitable for earning LEED v4.1, BREEAM, or Level(s) embodied carbon credits?

Yes. Their extended service life and high recyclability contribute positively to Material and Resources credits (LEED MRc), BREEAM Mat 01/02, and Level(s) indicators. When documented via compliant third-party EPDs (EN 15804/ISO 14025) and including Module D credits, malleable iron reduces overall building GWP and supports net-zero certification pathways.

Can Vicast fittings from Hebei Jianzhi Foundry Group Co., Ltd. be used in project-specific lifecycle assessments?

Yes. The company’s ISO 14001-certified processes, high recycled content (>90 % scrap in many melts), electric induction melting, automated annealing, and participation in national standards revisions (GB/T 3287) allow specifiers to input representative production data into tools like One Click LCA, Tally, or GaBi. Jianzhi can provide project-specific carbon-intensity values upon request for accurate, transparent modeling.

Why choose malleable iron in fire-protection or medical-gas systems when plastics are lighter and easier to install?

Many codes (NFPA 13 2025 edition, NFPA 99 2024) prohibit or heavily restrict plastics in these applications due to temperature limits (melting risk above 150 °C), leak integrity requirements, and combustibility concerns. Malleable iron eliminates the need for hybrid systems (plastic mains + iron branches), avoids additional transition fittings and testing, and provides superior long-term reliability — reducing both GWP (20–35 % lower vs. hybrid) and lifecycle maintenance costs.

References

1. (2025). Environmental Product Declaration: Malleable Iron Threaded and Grooved Pipe Fittings. EPD-IES-0022899:002. Jinan Meide Casting Co., Ltd. & Environdec Secretariat. Available at: https://www.environdec.com/epd-search(accessed March 2026).
2. Plastic Pipe and Fittings Association (PPFA) & ICC Evaluation Service. (2025). Environmental Product Declaration: PVC, CPVC, PEX Pipe and Fittings. EPD-1051 & EPD-1052. Under PCR-1002 v2.0. Available at: https://www.ppfahome.org/epd(accessed March 2026).
3. Uni-Bell PVC Pipe Association. (2023). Environmental Product Declaration: PVC Pipe and Fittings(revision). Uni-Bell PVC Pipe Association. Available at: https://www.uni-bell.org/Portals/0/ResourceFile/epd-pvc-pipe-and-fittings-2023.pdf (accessed March 2026).
4. JM Eagle. (2017, updated assumptions 2025). Life Cycle Assessment of PVC Pipe and Fittings. JM Eagle, Inc. Internal LCA report with public summary. Available upon request from JM Eagle sustainability department.
5. VITO & TEPPFA (The European Plastic Pipes and Fittings Association). (2020–2025 series). Comparative Life Cycle Assessment of Plastic vs. Ductile/Cast Iron Piping Systems. EN 15804-compliant studies. Multiple reports available at: https://www.teppfa.eu/lca-studies(accessed March 2026).
6. International Organization for Standardization. (2006). ISO 14040:2006 – Environmental management – Life cycle assessment – Principles and framework. Geneva: ISO.
7. International Organization for Standardization. (2006). ISO 14044:2006 – Environmental management – Life cycle assessment – Requirements and guidelines. Geneva: ISO.
8. European Committee for Standardization. (2019). EN 15804+A2:2019 – Sustainability of construction works – Environmental product declarations – Core rules for the product category of construction products. Brussels: CEN.
9. International Organization for Standardization. (2017). ISO 21930:2017 – Sustainability in buildings and civil engineering works – Core rules for environmental product declarations of construction products and services. Geneva: ISO.
10. Intergovernmental Panel on Climate Change (IPCC). (2021). Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report. Cambridge University Press.
11. ASTM International. (2023). ASTM A197/A197M-23 – Standard Specification for Cupola Malleable Iron. West Conshohocken, PA: ASTM.
12. Standardization Administration of China. (2019). GB/T 3287-2019 – Malleable Iron Pipe Fittings. Beijing: SAC.
13. National Fire Protection Association. (2025). NFPA 13: Standard for the Installation of Sprinkler Systems(2025 edition). Quincy, MA: NFPA.
14. National Fire Protection Association. (2024). NFPA 99: Health Care Facilities Code(2024 edition). Quincy, MA: NFPA.
15. Ecoinvent Association. (2025). Ecoinvent Database v3.9.1. Zurich: Ecoinvent. (China processes, 2025 update).
16. Sphera Solutions. (2025). GaBi Database 2025. Leinfelden-Echterdingen: Sphera. (China grid mix and metal production processes).
17. American Water Works Association (AWWA) & Ductile Iron Pipe Research Association (DIPRA). (various years 2010–2025). Field performance and dig-up inspection reports on ductile and malleable iron pipelines. Available through AWWA/DIPRA technical publications.
18. Plastic Pipe Institute (PPI). (2023). TR-3: Policies and Procedures for Developing Recommended Hydrostatic Design Stresses for Thermoplastic Pipe Materials. Irving, TX: PPI.
19. International Energy Agency (IEA). (2025). World Energy Outlook 2025. Paris: IEA.
20. Hebei Jianzhi Foundry Group Co., Ltd. (2026). Corporate Sustainability and Production Data Summary. Internal documentation and public website: https://www.cnvicast.com/about-us(accessed March 2026).

Notes on References

• EPDs are third-party verified and publicly available via the referenced platforms (Environdec, ICC-ES, Uni-Bell).
• LCA reports (JM Eagle, VITO/TEPPFA) are industry-standard references widely cited in comparative piping studies.
• Standards (ISO, EN, ASTM, GB/T, NFPA) are current as of 2026.
• Database versions (Ecoinvent 3.9.1, GaBi 2025) reflect the latest regional grid and process data available at the time of writing.

Commercial hydronic circuits generally run 140°F to 220°F. This breakdown looks at the core elements of gasket selection for grooved couplings in that range: compound properties, heat handling, common slip-ups, and workable selection routines. Sourcing teams and field contractors on hospital jobs, high-rise builds, or plant retrofits always weigh first cost against years of service and fluid match when pulling fittings for these systems.

Why Hot Water HVAC Systems Place Tough Demands on Grooved Coupling Gaskets

Hot water in hydronic heating paths puts pipes under steady elevated temperatures, usually mixed with glycol to guard against freezing or with inhibitors to fight corrosion. Those combinations wear down elastomers quicker unless the gasket compound stands up to the heat load.

Standard commercial runs sit between 160°F and 200°F, with short jumps toward 220°F at boiler outlets or under heavy load. Thermal cycling—constant warm-up and cool-down—drives thousands of compression and rebound cycles across the gasket’s life. If the formulation does not hold, permanent set builds, sealing pressure fades, and joints weep over time.

Site records show gaskets losing bounce and hardening after a few seasons in setups that push close to limits. A modest leak wrecks insulation, marks finishes, or stops critical operations in places like server rooms and clinics. Specifying the proper gasket maintains seal contact through the working temperature band and fluid profile.

Common Gasket Materials in Use for Grooved Couplings in Hot Water Service

Grooved couplings rely on elastomeric gaskets molded to seat in the housing and pipe grooves. EPDM leads in water-based HVAC because it works reliably with water, light chemicals, and mid-range heat.

Standard EPDM gaskets, marked with a green stripe, cover continuous hot water service up to about 180–200°F. Intermittent spikes can hit 230°F, but staying near the top for long stretches speeds compression set and cuts life. Peroxide-cured or upgraded EPDM pushes the continuous limit toward 230°F or a touch higher, giving better hold against heat aging in tougher loops.

Other compounds see spot duty in hot water. Nitrile manages oils well but falls apart fast in heated water, cracking or bloating in months. Fluoroelastomers take heat past 300°F, but the premium price and possible clashes with some water treatments keep them out of everyday hydronic jobs. Silicone handles dry extremes but acts differently under steady wet load in couplings.

Here is a side-by-side of the main picks for hot water HVAC grooved couplings:

Standard EPDM shows a green stripe and fits water, hot water, and dilute acids in a continuous span of roughly -30°F to 180–200°F for ongoing hot duty. It delivers good economics, solid water fit, and strong ozone/weathering resistance, though running above 200°F continuous accelerates breakdown.

Enhanced EPDM, often peroxide-cured, uses similar green or mixed striping and stretches to 230–250°F continuous in hot water with glycol. It lasts longer in high-heat commercial boilers or district heating lines.

Nitrile carries orange or red coding but stays under 150°F in water; it suits petroleum fluids better.

Fluoroelastomer features brown or yellow coding and climbs to 300–350°F, good for steam or harsh chemicals but usually oversized and pricier for typical hot water runs.

These numbers come from standard industry tests and maker specs for grooved pipe fittings. Actual field life ties to the exact mix, water treatment details, and how the joint goes together.

Step-by-Step Routine for Picking the Right Gasket in Grooved Couplings for Hot Water Systems

Run through a clear sequence to line the gasket up with real conditions and cut down on mismatches that cause trouble calls.

Start with the maximum continuous operating temperature from boiler readouts, pump curves, and design prints. Add headroom for brief spikes at full demand.

Then check fluid makeup. Clean water differs from mixes with 30–50% ethylene glycol or treatment chemicals. Glycol thickens things and changes how elastomers respond, so enhanced EPDM often proves the safer call at higher levels.

After that, pull the coupling maker’s sustained temperature limits for hot water. Focus on continuous figures rather than short bursts, since heating runs for long stretches.

Fit the gasket to the job. Loops under 180°F run fine with standard EPDM in most grooved couplings. When temperatures creep toward 200–220°F, go to enhanced compounds to keep compression set in check over 10–15 years.

Think about expected run time and how easy access will be. In buried risers or tall buildings, gaskets built for longer life offset a small added cost.

Confirm match with supplier sheets or third-party approvals. Get hold of hot water soak and cycle test data.

On install, stick to the listed lubricant—petroleum-free and safe for EPDM—to protect the lips. Draw bolts down in a star pattern for even squeeze and no pinching.

This flow lets buyers order grooved couplings with the right gasket already in place, skipping field changes and lifting system uptime.

Typical Mistakes in Gasket Selection for Grooved Couplings and Ways to Dodge Them

A handful of repeat errors pop up when gasket material gets short attention.

Pushing standard EPDM past its range in 210–220°F lines hardens it fast and brings leaks after 3–5 years. Avoid by double-checking continuous ratings and stepping to enhanced material when needed.

Putting oil-grade compounds like nitrile into hot water service swells them quickly and fails them. Always verify the fluid first.

Sloppy assembly—uneven torque or no lube—pinches the gasket and leaves soft spots. Follow the right compound and pattern every time.

Missing glycol percentage ignores its aging push. Enhanced EPDM deals with higher glycol better.

Downplaying thermal cycling shortchanges seal toughness. Use flexible couplings where movement shows up to ease the load.

Catching these at the spec stage stops most of the hydronic failures seen on jobs.

About Hebei Jianzhi Foundry Group Co., Ltd.

Hebei Jianzhi Foundry Group Co., Ltd., through the Vicast brand, has built grooved pipe fittings since 1982. As a national high-tech enterprise, it holds over 200 patents and helps shape six national standards, five industry standards, and four group standards, including work on GB/T3287, GB/T9440, and GB/T25746.

Facilities span 1.4 million square meters with about 4500 staff, including more than 350 engineers. Quality and environmental controls meet ISO 9001 and ISO 14001. The range covers full grooved couplings—rigid and flexible—plus tees, crosses, flanges, and adapters made for steady performance in HVAC, fire protection, and industrial piping.

Products reach over 100 countries, showing ongoing focus on tough, certified parts that back safe, efficient building systems around the world.

Vicast grooved couplings use ductile iron bodies with standard EPDM gaskets rated for hot water within listed limits, providing solid sealing in hard service.

Conclusion

Picking the proper gasket material for grooved couplings in hot water HVAC systems takes close review of temperature patterns, fluid details, and service expectations. EPDM acts as the main go-to for most setups, with enhanced types covering higher heat needs. Using a step-by-step check and sidestepping frequent errors helps engineers and buyers specify couplings that run leak-free for years, lowering upkeep and cutting disruptions.

Frequently Asked Questions

What is the best gasket material for grooved couplings in hot water HVAC systems?

EPDM stands out as the top pick for hot water circuits due to its strong fit with water and mid-range temperatures. Standard grades hold up well to 180–200°F continuous, while enhanced versions go further without quick loss of properties.

Can standard EPDM gaskets handle 220°F hot water in grooved couplings?

Usually not for long stretches. Standard EPDM runs higher risk of compression set and leaks above 200°F continuous; systems nearing 220°F gain from enhanced EPDM to keep seals working longer.

What temperature rating should grooved couplings have for heating systems?

Stress continuous hot water ratings over brief peaks. Standard EPDM couplings cover 180–200°F sustained, with enhanced grades reaching 230°F or more for heavy commercial use.

How do I prevent gasket failure in hot water grooved pipe fittings?

Match the material to true temperature and fluid, use correct lubrication on assembly, torque bolts evenly, and pick enhanced EPDM for 200°F or above. Run early checks at startup to catch problems fast.

Are enhanced EPDM gaskets worth the extra cost for high-temperature hot water HVAC?

Yes in loops that hit over 180°F often or run glycol—they stretch service time, drop replacement needs, and reduce leak chances in key jobs where downtime hits hard.

Hot-dip galvanized malleable iron threaded pipe fittings count on accurately managed zinc coating thickness to deliver consistent, long-lasting corrosion resistance through harsh operating conditions—steam distribution lines cycling between ambient and 421°F/216°C, compressed air networks carrying ongoing moisture with pressure pulsation, fire protection sprinkler systems facing hydraulic transients along with occasional stagnant water periods, outdoor industrial piping exposed to marine or heavy industrial atmospheres, and buried or insulated district heating lines dealing with soil corrosion plus seasonal thermal swings. ISO 1461 establishes minimum average coating thicknesses that scale according to steel section thickness—45 μm for ≤1.5 mm, progressing to 85 μm for >6 mm—together with local minimums 5–10 μm below the average and repair coating thresholds set at 100 μm, whereas ASTM A153 Class A for malleable iron castings mandates an average of 3.4 mils (86 μm / 610 g/m²) and an individual minimum of 3.1 mils (79 μm / 550 g/m²), with Classes B through D supplying lower thresholds appropriate for smaller hardware and fasteners. Both standards secure the creation of a continuous, strongly bonded zinc-iron alloy arrangement composed of eta (pure Zn), zeta, delta, and gamma intermetallic phases that supply effective barrier protection combined with sacrificial cathodic action at any point where the coating is compromised. Thicker coatings extend service life in direct proportion following the approximate relationship L ≈ h / R, where h stands for coating thickness (μm) and R represents the atmospheric corrosion rate (μm/year)—rates that span 0.1–1.0 μm/year in rural settings to 2.0–6.0 μm/year in severe marine or industrial exposures. Meeting global compliance frequently calls for dual or bridged certification, as ASTM A153 Class A commonly surpasses ISO 1461 minimums for matching sections, while EN 10242, GB/T 3287, AS/NZS 4680, and CSA G164 bring in additional regional specifications. The whitepaper presented here offers a complete technical review of galvanizing reaction kinetics, coating microstructure development, thickness measurement precision and sampling approaches, comparative standard requirements, environmental degradation rates and service life prediction models, application-specific performance considerations for threaded fittings, strict testing and quality assurance protocols, and practical compliance strategies—furnishing manufacturers, engineers, specifiers, and end-users with the solid technical detail required to maximize corrosion durability while preserving thread functionality and joint integrity under demanding service conditions.

Key Takeaways

• ISO 1461 minimum coating thickness — Average values: 45 μm (steel ≤1.5 mm), 55 μm (>1.5–3 mm), 70 μm (>3–6 mm), 85 μm (>6 mm); local minimums 5–10 μm below average; centrifuged threaded fittings often qualify for lower average due to excess zinc removal.
• ASTM A153 Class A for malleable iron castings — Average zinc coating 3.4 mils (86 μm / 610 g/m²), individual specimen minimum 3.1 mils (79 μm / 550 g/m²); Classes B/C/D range 1.7–2.6 mils average for smaller hardware or fasteners.
• Zinc-iron alloy layer structure — Typical sequence: eta (pure Zn, 10–50 μm), zeta (FeZn₁₃, needle-like), delta (FeZn₇–₁₀, compact), gamma (Fe₃Zn₁₀, thin); thicker coatings increase intermetallic thickness, enhancing long-term barrier performance.
• Service life estimation — Approximate L ≈ h / R (years), where h = average thickness (μm), R = zinc corrosion rate (μm/year); e.g., 85 μm coating in suburban atmosphere (R ≈ 1.0–2.0 μm/year) yields 42–85 years; marine environments (R ≈ 3–6 μm/year) reduce life to 14–28 years unless heavier coatings are specified.
• Measurement methods — Magnetic induction (ISO 2178 / ASTM E376, non-destructive), gravimetric mass loss (ISO 1460, highest accuracy for average), metallographic cross-section (direct layer visualization); sampling follows ISO 2859-1 AQL or lot-based plans.
• Global compliance strategy — ASTM A153 Class A frequently exceeds ISO 1461 minimums for fittings; EN 10242 threaded fittings commonly galvanized to ISO 1461; dual certification common for export markets; heavier coatings (80–120 μm) recommended for severe environments to achieve 30–50+ year service life.

Table of Contents

• Introduction to Hot-Dip Galvanizing for Malleable Iron Threaded Pipe Fittings
• Fundamentals of the Hot-Dip Galvanizing Process and Coating Microstructure Formation
• ISO 1461: Detailed Requirements, Thickness Tables, and Acceptance Criteria
• ASTM A153: Classification, Coating Mass/Thickness, and Hardware-Specific Provisions
• Comparative Technical Analysis: ISO 1461 vs. ASTM A153 vs. Regional Equivalents
• Zinc Corrosion Kinetics and Environmental Degradation Rates
• Service Life Prediction Models and Coating Thickness Optimization
• Coating Thickness Measurement Methods, Accuracy, and Sampling Strategies
• Application-Specific Performance Considerations for Threaded Fittings
• Quality Assurance, Testing Protocols, and Certification Practices
• Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)
• Conclusion: Achieving Long-Term Corrosion Protection Through Standards Compliance
• References
• FAQs

Introduction to Hot-Dip Galvanizing for Malleable Iron Threaded Pipe Fittings

Hot-dip galvanizing holds its place as the most trusted, long-standing corrosion protection approach for malleable iron threaded pipe fittings in every setting where extended service life, limited maintenance needs, and solid joint reliability stay at the top of the priority list. The process builds a metallurgically bonded zinc coating by dipping the fittings into molten zinc kept at 440–460°C, forming a multi-layered structure that delivers both robust physical barrier protection and sacrificial cathodic action at any spot where the coating takes a hit. For threaded fittings—elbows, tees, unions, couplings, crosses, caps, plugs, and mechanical joint components—the coating has to strike a balance between two opposing demands: enough thickness to handle aggressive atmospheres (steam condensation, compressed air moisture, fire sprinkler stagnant water, outdoor marine or industrial exposure, buried soil contact), and controlled buildup to keep threads from bridging, galling during make-up, or losing effective engagement length.

Standards supply the necessary framework for resolving these conflicting demands. ISO 1461 governs hot-dip galvanized coatings on fabricated iron and steel articles, laying down minimum average and local thicknesses scaled to base metal thickness, local minimum thresholds, appearance expectations, adhesion verification methods, and repair guidelines. ASTM A153 concentrates specifically on zinc coatings for iron and steel hardware—including malleable iron castings—defining Classes A through D with corresponding average and individual minimum coating masses/thicknesses, centrifugation allowances tailored to threaded items, and safeguards against hydrogen embrittlement. These two documents, together with regional equivalents such as EN 10242 for threaded malleable fittings in Europe, GB/T 3287 in China, and AS/NZS 4680 in Australia/New Zealand, provide the technical foundation for uniform, repeatable performance across different markets.

In everyday production, coating thickness on malleable iron fittings (ASTM A197 cupola grade, ferritic-pearlitic matrix containing temper carbon nodules) is heavily shaped by silicon content (typically 1.0–1.8%), which controls zinc reactivity and the rate of alloy layer development. Excessive silicon can trigger the Sandelin effect—rapid, uncontrolled growth that results in thick, brittle coatings—while carefully managed chemistry and process parameters produce uniform, tightly adherent layers. Thicker coatings in the 80–120 μm range are routinely specified for severe environments to secure 30–60+ year service life, whereas adherence to minimum requirements ensures code compliance without sacrificing thread functionality or joint reliability.

The whitepaper that follows delivers a detailed technical reference on coating thickness standards, delving into process metallurgy, the quantitative requirements of ISO 1461 and ASTM A153, side-by-side comparisons across global norms, corrosion rate data from real-world atmospheres, service life prediction models, thickness measurement techniques and sampling approaches, application-specific performance considerations for threaded fittings, rigorous testing protocols, and practical compliance strategies. The intent is to equip piping engineers, specification writers, quality managers, manufacturers, and end-users with comprehensive, standards-grounded information that supports selection and verification of galvanized malleable iron fittings capable of delivering decades of dependable corrosion protection under actual service conditions.

Fundamentals of the Hot-Dip Galvanizing Process and Coating Microstructure Formation

The hot-dip galvanizing sequence for malleable iron threaded pipe fittings begins with surface preparation to ensure complete zinc wetting and metallurgical bonding. Fittings are first degreased in alkaline solutions (NaOH-based, 50–80°C) to remove cutting oils and lubricants from threading operations. Acid pickling (typically 10–20% HCl at ambient temperature or 10% H₂SO₄ at 60–80°C) removes mill scale, rust, and temper carbon residues from the casting surface. Fluxing with zinc ammonium chloride (ZnCl₂·NH₄Cl) solution (double salt, 10–30% concentration) promotes wetting by dissolving surface oxides and leaving a thin salt film that prevents re-oxidation during drying.

After drying (120–150°C oven or air dry), fittings are immersed in molten zinc (440–460°C, typical composition 98.5–99.99% Zn with 0.01–0.1% Al for spangle control, trace Pb or Sn for fluidity). Immersion time for threaded fittings is usually 3–8 minutes, depending on section thickness and desired alloy layer development. Upon withdrawal, fittings are centrifuged (spun at 300–600 rpm) to remove excess zinc from threads, recesses, and internal passages, preventing bridging or excessive buildup that would interfere with assembly.

The coating forms through interdiffusion: iron from the substrate dissolves into liquid zinc, and zinc diffuses inward, creating a sequence of intermetallic phases:

• Gamma phase (Fe₃Zn₁₀, ~11% Fe): thinnest layer (1–3 μm), forms first at the steel interface, very hard and brittle.
• Delta phase (FeZn₇–FeZn₁₀, 7–11% Fe): compact columnar grains, 5–20 μm thick, provides the primary barrier strength.
• Zeta phase (FeZn₁₃, ~6% Fe): needle-like or feather-like crystals, 5–30 μm thick, transitional layer.
• Eta phase (pure or near-pure Zn): outer layer, 10–60 μm thick, soft, bright, and sacrificial.

Total thickness is the sum of these layers. In malleable iron, silicon content (1.0–1.8%) promotes moderate reactivity, producing 50–120 μm total coatings depending on immersion time and bath temperature. Higher silicon can accelerate growth (Sandelin peak at 0.08–0.22% Si), leading to thick, brittle delta/zeta layers; controlled chemistry avoids this.

Centrifuging reduces eta phase thickness while preserving alloy layers, ensuring thread clearance. Quenching (water or chromate solution) can refine grain structure and passivate the surface, reducing white rust formation during storage.

The final duplex coating provides:

• Barrier protection from eta and compact delta layers.
• Sacrificial protection: zinc corrodes preferentially (E°_Zn = –0.76 V vs. E°_Fe = –0.44 V), maintaining cathodic protection at coating defects or cut edges.

In threaded fittings, coating integrity at thread roots is critical; insufficient thickness there accelerates localized pitting or crevice corrosion in moist environments.

ISO 1461: Detailed Requirements, Thickness Tables, and Acceptance Criteria

ISO 1461:2022 “Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test methods” remains the international reference standard for hot-dip galvanized coatings applied to fabricated products, including malleable iron threaded pipe fittings that are galvanized after casting, threading, and assembly of any sub-components. The standard deliberately avoids imposing a maximum coating thickness limit, recognizing that heavier coatings are frequently required in severe corrosivity categories (C4 high, C5 very high per ISO 9223) or for extended design service life (30–75+ years). Instead, it focuses on minimum performance thresholds that ensure adequate barrier and sacrificial protection while allowing flexibility for purchaser-specified enhancements.

Scope and Applicability to Malleable Iron Threaded Pipe Fittings

ISO 1461 applies to iron and steel articles that are hot-dip galvanized after fabrication, encompassing castings (such as ASTM A197 malleable iron elbows, tees, unions, couplings, crosses, caps, plugs, and mechanical joint components), welded assemblies, and threaded items. For threaded fittings, the standard implicitly acknowledges the need for centrifugation or spinning to remove excess zinc from internal threads and recesses, which typically results in lower average coating mass than non-centrifuged articles of equivalent steel thickness. The standard explicitly states that centrifuged articles may be assigned lower minimum average thicknesses when agreed between purchaser and galvanizer, reflecting the mechanical removal of free zinc (eta phase) while preserving the underlying zinc-iron alloy layers critical for long-term durability.

Malleable iron fittings generally fall into the >3 mm to ≤6 mm or >6 mm steel thickness categories (depending on wall thickness and nominal size), making the 70 μm or 85 μm average minimums the most relevant benchmarks. The standard’s emphasis on “fabricated articles” distinguishes it from ASTM A153 (hardware-specific) and allows it to cover the full range of threaded malleable iron products exported globally.

Minimum Coating Thickness Requirements – Tables and Local vs. Average Distinction

The core of ISO 1461 is Table 1 (Minimum coating thickness and mass on samples), which scales requirements with the thickness of the base steel article:

• Steel thickness ≤1.5 mm: average coating thickness ≥45 μm (corresponding to ≥320 g/m² zinc mass), local minimum ≥35 μm.
• Steel thickness >1.5 mm and ≤3 mm: average ≥55 μm (≥390 g/m²), local minimum ≥45 μm.
• Steel thickness >3 mm and ≤6 mm: average ≥70 μm (≥500 g/m²), local minimum ≥55 μm.
• Steel thickness >6 mm: average ≥85 μm (≥610 g/m²), local minimum ≥70 μm.

For centrifuged articles (common practice for threaded pipe fittings to clear internal threads and prevent bridging):

• The purchaser and galvanizer may agree to apply the requirements for the next lower thickness category or a reduced average value, provided the coating remains continuous and protective. In practice, centrifuged malleable iron fittings with nominal wall thicknesses of 4–8 mm frequently target 55–75 μm average to balance corrosion protection with thread functionality.

Local thickness is measured over discrete reference areas (typically 1 cm² or 5 cm² patches) and must not fall below the local minimum anywhere on the article. This requirement guards against thin spots at edges, recesses, or thread roots where zinc drainage or centrifugal force may reduce coating mass. The difference between average and local minimum is deliberately limited (5 μm for ≤6 mm steel, 10 μm for >6 mm) to prevent significant variability that could compromise sacrificial protection at vulnerable locations.

Mass equivalents (g/m²) are calculated assuming zinc density 7.14 g/cm³, so 1 μm ≈ 7.14 g/m². The standard allows conversion between thickness and mass measurements, with gravimetric results taking precedence in disputes.

Appearance, Continuity, and Adhesion Requirements

The coating must be continuous and reasonably smooth, free from gross lumps, ash inclusions, blisters, or uncoated areas that would impair serviceability or appearance. Minor roughness, dull gray matte finish, or slight spangle variation is acceptable; bright spangle is not required. For threaded fittings, small accumulations of zinc at thread crests or roots are permitted provided they do not interfere with joint assembly or sealing.

Adhesion is verified by practical tests: no peeling or flaking when a small article is bent around a 4t mandrel (t = steel thickness) or when struck with a 500 g hammer. The standard does not require a formal adhesion test if visual and hammer inspection confirms uniformity.

Repair of Damaged Areas and Touch-Up Procedures

Damaged areas (e.g., coating removed during threading touch-up, handling damage, or post-galvanizing machining) must be repaired using zinc-rich paint (≥92% Zn dust by weight in dry film), zinc spray (metallizing), or zinc solder. The minimum repair coating thickness is 100 μm unless the purchaser agrees to a lower value in writing. Repair areas must overlap sound coating by at least 25 mm to ensure continuity of cathodic protection. The standard references ISO 12944-5 for paint systems and ISO 2063 for thermal spraying as guidance.

Testing Methods, Reference Areas, and Acceptance Criteria

Thickness measurement:

• Magnetic method (ISO 2178 / ASTM E376 equivalent) — non-destructive, using probe calibrated on uncoated substrate; minimum 5 readings per reference area, average reported.
• Gravimetric method (ISO 1460) — acid dissolution of zinc, mass loss determination; highest accuracy for average mass per unit area.
• Metallographic cross-section — destructive, optical microscopy measurement of local thickness; used for dispute resolution or alloy layer analysis.

Reference areas — Defined as the smallest area over which average thickness is determined (typically 1–5 cm²); local thickness measured at multiple points within each area.

Sampling — Per ISO 2859-1 attribute sampling plans (normal inspection level 2, AQL 1.5–4.0 for major defects); lot size determines sample quantity.

Acceptance — Lot accepted if average thickness ≥ table value, no local thickness below local minimum, no gross defects affecting use.

Heavy coating allowance — Purchaser may specify thicker coatings (e.g., 100–150 μm average) for severe environments (C4/C5 corrosivity), with galvanizer required to demonstrate compliance.

ISO 1461’s performance-based approach makes it particularly suitable for threaded malleable iron fittings, where process adjustments (centrifugation, immersion time) are used to meet minimums while preserving thread clearance.

ASTM A153: Zinc Coating (Hot-Dip) on Iron and Steel Hardware

ASTM A153/A153M-23 “Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware” is the primary North American standard governing hot-dip galvanizing of hardware items, including malleable iron castings, threaded pipe fittings, rolled threaded rods, forged flanges, pressed washers, and small fasteners. Unlike ISO 1461, which applies broadly to fabricated articles galvanized after assembly, ASTM A153 is hardware-specific and explicitly allows (and often requires) centrifugation or spinning to remove excess zinc from threads, recesses, and internal passages—critical for threaded malleable iron fittings to maintain joint functionality and avoid galling or reduced thread engagement during assembly.

The standard classifies products into four classes (A through D) based on product type, size, and thickness, with each class defining distinct average coating thickness (in mils and equivalent μm/g/m²) and individual specimen minimums. These values reflect the practical reality that smaller or thinner hardware items receive proportionally less zinc retention after spinning, while larger castings retain thicker coatings.

Classification System and Coating Thickness Requirements

Class A — Applies to castings (including malleable iron threaded pipe fittings), forged articles, and rolled threaded products greater than 15 inches in length or thicker than 5/8 inch:

• Average coating thickness: 3.4 mils (86 μm / 610 g/m² zinc mass).
• Individual specimen minimum thickness: 3.1 mils (79 μm / 550 g/m²).

This class is directly applicable to most malleable iron pipe fittings (elbows, tees, unions, couplings, crosses, caps, plugs, mechanical tees), which are typically cast with wall thicknesses in the 4–12 mm range and spun after galvanizing to clear internal threads.

Class B — Rolled, pressed, or forged articles (e.g., threaded rods, bolts, nuts):

• B-1: Articles >5/8 inch thick and >15 inches long — average 3.4 mils (86 μm), minimum 3.1 mils (79 μm).
• B-2: Articles <3/16 inch thick and >15 inches long — average 2.6 mils (66 μm), minimum 2.1 mils (53 μm).
• B-3: Articles of any thickness <15 inches long — average 2.2 mils (56 μm), minimum 1.9 mils (48 μm).

Class C — Fasteners >3/8 inch diameter and washers 3/16–1/4 inch thick — average 2.1 mils (53 μm), minimum 1.7 mils (43 μm).

Class D — Fasteners <3/8 inch diameter, rivets, nails, washers <3/16 inch thick — average 1.7 mils (43 μm), minimum 1.4 mils (36 μm).

Centrifuged hardware — Threaded items must be spun after withdrawal from the zinc bath to remove surplus zinc. The standard notes that centrifuged products may have lower average coating mass than non-centrifuged equivalents, but Class A minimums remain the benchmark for malleable iron castings.

Appearance, Continuity, Adhesion, and Embrittlement Provisions

The coating must be reasonably smooth and continuous, free from uncoated areas, gross lumps, blisters, or ash inclusions that would impair serviceability or appearance. Dull gray matte finishes are acceptable; bright spangle is not required. Minor roughness at thread crests or roots is permitted provided it does not interfere with joint make-up or sealing performance.

Adhesion is verified by practical means: no flaking or peeling when the article is deformed (small items bent) or struck with a hammer. The standard does not mandate a formal pull-off or bend test if visual and hammer inspection confirms uniformity.

Hydrogen embrittlement is explicitly prohibited. The specification requires that pickling and galvanizing processes do not introduce hydrogen that causes embrittlement in susceptible steels; for malleable iron, this is rarely an issue due to the ferritic-pearlitic matrix, but the requirement ensures process control.

Repair Procedures and Touch-Up Requirements

Damaged areas (coating removed during threading touch-up, handling nicks, or post-galvanizing machining) must be repaired in accordance with ASTM A780/A780M “Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings”. Acceptable methods include:

• Zinc-rich paint (≥92% Zn dust by weight in dry film), applied to ≥3–4 mils (76–102 μm) dry film thickness.
• Zinc spray (metallizing) per ASTM B833 or B852, minimum 3 mils (76 μm).
• Zinc-based solder or powder.

Repair areas must overlap sound coating by at least 1 inch (25 mm) to maintain cathodic continuity. The standard allows purchaser agreement on reduced repair thickness, but A780 minimums are the default.

Testing Methods, Sampling, and Acceptance Criteria

Thickness measurement:

• Magnetic method (ASTM E376 / ISO 2178 equivalent) — non-destructive, calibrated probe on uncoated substrate; minimum 5 readings per specimen, average reported.
• Gravimetric method — acid dissolution and mass loss determination; highest accuracy for average coating mass per unit area.
• Metallographic cross-section — destructive, optical microscopy of polished sections; used for layer structure verification or dispute resolution.

Sampling — Lot-based or statistical sampling per purchaser agreement; often follows MIL-STD-105E (now superseded by ANSI/ASQ Z1.4) or AQL plans.

Acceptance — Lot accepted if average thickness ≥ class value, no individual specimen below minimum, no gross defects affecting use.

Heavy coating allowance — The standard permits thicker coatings when specified by the purchaser (common for severe environments), with galvanizer responsible for demonstrating compliance without compromising thread function.

ASTM A153 Class A is the de facto requirement for malleable iron threaded pipe fittings in North American markets and many international projects specifying U.S. standards, providing a higher minimum thickness than ISO 1461 for comparable sections while explicitly accommodating centrifugation for threaded products.

Comparative Technical Analysis: ISO 1461 vs. ASTM A153 vs. Regional Equivalents

Scope and Applicability Comparison

ISO 1461 is written for fabricated articles galvanized after assembly or fabrication, making it broadly applicable to malleable iron threaded fittings that are cast, threaded, and then galvanized as complete components. ASTM A153 is hardware-specific, explicitly covering castings, fasteners, and threaded items, with provisions for centrifugation that directly address the needs of threaded pipe fittings. The scope difference means ISO 1461 is more general (covers large fabricated structures), while ASTM A153 is more tailored to small hardware and castings.

Coating Thickness Comparison for Malleable Iron Fittings

Typical malleable iron fitting wall thickness falls in the 4–10 mm range:

• ISO 1461 (centrifuged articles): 55–85 μm average (depending on exact thickness and agreement), local minimum 45–70 μm.
• ASTM A153 Class A: 86 μm average, 79 μm individual minimum.

ASTM A153 Class A generally exceeds ISO 1461 minimums for fittings in the >3–6 mm category, providing a higher baseline protection level. In practice, many global suppliers target 80–100 μm average to satisfy both standards simultaneously.

Measurement, Sampling, and Acceptance Differences

• ISO 1461 emphasizes local average thickness over reference areas and local minimums; sampling per ISO 2859-1 AQL.
• ASTM A153 requires average and individual specimen minimums; sampling lot-based or statistical.

Both allow magnetic, gravimetric, and metallographic methods; gravimetric takes precedence in disputes.

Appearance, Adhesion, Repair, and Embrittlement

Appearance and adhesion requirements are nearly identical: continuous, adherent, no gross defects. Repair methods align (zinc-rich paint/spray), with ISO 1461 setting 100 μm minimum and ASTM A153 referencing A780 (3–4 mils).

Embrittlement prevention is explicit in ASTM A153; ISO 1461 addresses it indirectly through process control.

Regional Equivalents and Global Compliance Strategies

• EN 10242 (Europe): Threaded malleable iron fittings; galvanizing specified per EN ISO 1461 when required.
• GB/T 3287 (China): Malleable iron fittings; galvanizing often per ISO 1461 or ASTM A153 equivalents.
• AS/NZS 4680 (Australia/New Zealand): Thickness tables mirror ISO 1461.
• CSA G164 (Canada): Aligns with ASTM A123/A153 for hardware.

Global suppliers frequently dual-certify to ASTM A153 Class A + ISO 1461 to meet North American and European/Asian requirements. Heavier coatings (100–150 μm average) are common for severe environments (C4/C5) to achieve 40–75+ year service life.

Zinc Corrosion Kinetics and Environmental Degradation Rates

Zinc corrosion in hot-dip galvanized coatings proceeds primarily through electrochemical dissolution in the presence of moisture, oxygen, and atmospheric pollutants, with the rate governed by time of wetness, temperature, pH of surface electrolyte, and concentration of corrosive species (SO₂, Cl⁻, NOₓ, CO₂). The corrosion product layer—initially zinc hydroxide Zn(OH)₂, followed by basic zinc carbonate Zn₅(OH)₆(CO₃)₂ (hydrozincite), zinc sulfate ZnSO₄·nH₂O in sulfur-rich atmospheres, and zinc chloride complexes in marine conditions—forms a passive film that progressively reduces further attack. This passivation is the principal reason real-world zinc loss rates are often lower than short-term laboratory immersion tests predict.

Corrosion Rate Classification per ISO 9223 and Real-World Observations

ISO 9223:2012 “Corrosion of metals and alloys — Corrosivity of atmospheres — Classification, determination and estimation” categorizes atmospheric corrosivity into five classes (C1 to C5) based on first-year zinc corrosion rate measured on standard zinc panels:

• C1 (very low corrosivity): heated and air-conditioned interiors with low humidity — zinc loss 0.1–0.5 μm/year.
• C2 (low corrosivity): rural and suburban atmospheres, unheated interiors with occasional condensation — zinc loss 0.5–2.0 μm/year.
• C3 (medium corrosivity): urban and industrial atmospheres with moderate SO₂ pollution, coastal areas with low salt exposure — zinc loss 2.0–4.0 μm/year.
• C4 (high corrosivity): industrial areas with high SO₂ pollution, coastal/industrial with moderate salt — zinc loss 4.0–8.0 μm/year.
• C5 (very high corrosivity): aggressive industrial atmospheres with high pollutant levels, severe marine (offshore, splash zone) — zinc loss 8.0–25 μm/year (C5-I industrial) or 8.0–25 μm/year (C5-M marine).

These rates represent first-year corrosion on bare zinc; long-term rates on galvanized steel or malleable iron are typically 20–50% lower due to protective corrosion product accumulation and alloy layer contribution. The delta and gamma intermetallic phases are significantly more resistant to dissolution than pure eta zinc, so once the eta layer is consumed (typically 10–30 years depending on thickness), the remaining alloy layers continue to protect at reduced rates (often 0.2–1.0 μm/year even in C3–C4 atmospheres).

Environmental Factors Influencing Zinc Corrosion Kinetics

Time of wetness (TOW) — The fraction of time the surface is wet (RH >80% or condensation occurs) is the dominant driver. TOW values range from <10% in arid interiors (C1) to >60% in coastal/industrial zones (C4/C5). Higher TOW accelerates dissolution by maintaining an electrolyte film.

Temperature — Corrosion rate increases with temperature up to ~60°C (Arrhenius behavior), then decreases at higher temperatures due to reduced oxygen solubility and faster passivation. In steam or hot water systems (intermittent exposure to 100–200°C), zinc-iron alloy layers remain stable, but prolonged exposure above 200°C can cause intermetallic growth and potential cracking.

Atmospheric pollutants:

• Sulfur dioxide (SO₂) — Forms zinc sulfate, which is soluble and accelerates attack; dominant in C3–C4 industrial atmospheres.
• Chlorides (Cl⁻) — From marine aerosols or de-icing salts; highly aggressive in C5-M, causing pitting and undermining of alloy layers.
• NOx and CO₂ — Contribute to acidic surface films (pH 4–6), increasing zinc dissolution rate.

pH of surface electrolyte — Zinc is amphoteric; corrosion accelerates at pH <4 or >10. Neutral to slightly alkaline conditions (pH 6–9) favor passivation via hydrozincite formation.

Alloy layer contribution — After eta depletion, delta phase (FeZn₇–₁₀) corrodes at ~0.2–0.8 μm/year in C3 atmospheres; gamma phase even slower. This extends effective life beyond simple linear models.

Long-Term Corrosion Behavior and Alloy Layer Protection

Short-term immersion tests (e.g., salt spray ASTM B117) overestimate field rates because they lack wetting/drying cycles and natural passivation. Real-world data from exposure programs (e.g., American Galvanizers Association test sites, ISO CORRAG program) show:

• Rural/suburban (C2): 0.7–1.5 μm/year long-term average.
• Urban/industrial (C3): 1.5–3.0 μm/year.
• Coastal/industrial (C4): 3.0–6.0 μm/year.
• Severe marine (C5-M): 5.0–12.0 μm/year.

Alloy layers account for 30–60% of total protection after eta depletion; in fittings with initial 80–120 μm coatings, alloy layer thickness (20–50 μm) can provide 10–30 additional years of protection after eta is consumed.

Practical Implications for Threaded Malleable Iron Fittings

In threaded fittings, corrosion at thread roots and internal surfaces is critical due to crevice geometry and limited oxygen access. Centrifugation reduces eta thickness in recesses, making alloy layer integrity even more important. Thicker initial coatings (100–150 μm average) are recommended for C4/C5 environments to ensure sufficient alloy layer retention after 20–30 years. Field inspections of aged fittings often show preferential attack at thread roots when initial thickness falls below 60–70 μm, highlighting the value of exceeding minimums in aggressive service.

Service Life Prediction Models and Coating Thickness Optimization

Linear Service Life Model and Limitations

The simplest prediction model is L ≈ h / R, where:

• L = service life to first maintenance (years)
• h = average initial zinc coating thickness (μm)
• R = zinc corrosion rate (μm/year)

Examples:

• Suburban atmosphere (R ≈ 1.2–1.8 μm/year), 85 μm coating → L ≈ 47–71 years.
• Industrial atmosphere (R ≈ 2.5–3.5 μm/year), 85 μm → L ≈ 24–34 years.
• Marine atmosphere (R ≈ 4.5–6.0 μm/year), 85 μm → L ≈ 14–19 years; 120 μm → L ≈ 20–27 years; 150 μm → L ≈ 25–33 years.

This linear model is conservative because:

• Corrosion rate decreases over time as protective corrosion products accumulate.
• Alloy layers (delta + gamma) corrode at 20–50% the rate of eta phase.
• Intermittent wetting/drying cycles allow passivation periods.

Non-Linear Models and Alloy Layer Contribution

More accurate models incorporate two-stage corrosion:

• Eta phase depletion stage — R_eta ≈ 1.0–6.0 μm/year depending on environment.
• Alloy layer stage — R_alloy ≈ 0.2–1.0 μm/year after eta is consumed.

Total life L ≈ (h_eta / R_eta) + (h_alloy / R_alloy), where h_eta is initial eta thickness (typically 20–60% of total h), h_alloy is intermetallic thickness (30–80% of total h).

Example (C3 industrial, R_eta = 3.0 μm/year, R_alloy = 0.8 μm/year, initial h = 100 μm, h_eta = 40 μm, h_alloy = 60 μm):

• Eta depletion time ≈ 40 / 3.0 ≈ 13 years.
• Alloy protection time ≈ 60 / 0.8 ≈ 75 years.
• Total L ≈ 13 + 75 = 88 years (vs. linear 100 / 3.0 ≈ 33 years).

This two-stage approach better matches long-term exposure data.

Coating Thickness Optimization for Threaded Fittings

C1/C2 environments (rural/suburban, heated interiors): 55–70 μm average sufficient for 40–80+ year life.

C3 environments (urban/industrial): 70–100 μm for 30–60 year life; 120 μm for 50–80+ years.

C4/C5 environments (high marine/industrial): 100–150 μm recommended, or duplex system (galvanizing + epoxy/polyurethane topcoat) for 50–100+ year life.

For threaded fittings, optimization must consider:

• Thread clearance — Centrifugation targets 70–100 μm average while keeping thread roots ≥60 μm.
• Internal surfaces — Recesses receive less zinc; heavier initial coating compensates.
• Cost vs. life — Incremental cost of 30–50% thicker coating is low compared to replacement labor and downtime.

Coating Thickness Measurement Methods, Accuracy, and Sampling Strategies

Magnetic Induction Method (Non-Destructive)

ISO 2178 and ASTM E376 describe magnetic induction gauges using a probe that generates an electromagnetic field; coating thickness is derived from field perturbation. Accuracy ±5–10% for 50–150 μm range; calibration on uncoated substrate of same material and geometry is essential. Minimum 5–15 readings per reference area; average and standard deviation reported. Limitations: less accurate on curved surfaces (thread crests/roots) or near edges; probe size affects resolution.

Gravimetric Method (Highest Accuracy for Average Mass)

ISO 1460: sample is weighed, zinc dissolved in inhibited HCl, re-weighed; mass loss converted to thickness assuming zinc density 7.14 g/cm³ (1 μm ≈ 7.14 g/m²). Accuracy ±2–5%; used for average mass per unit area. Destructive, so applied to representative samples or sacrificial parts.

Metallographic Cross-Section (Direct Layer Visualization)

Cut, polish, etch (e.g., 2% nital), examine under optical microscope at 100–500×. Measures local thickness of eta, zeta, delta, gamma layers. Highest resolution for alloy structure analysis; destructive but essential for process optimization and dispute resolution.

Sampling Strategies and Acceptance Criteria

Sampling plans — ISO 2859-1 attribute sampling (normal inspection level 2, AQL 1.5–4.0 for major defects); lot size determines sample quantity (e.g., lot of 501–1200 pieces → sample size 32–50).

Reference areas — Smallest area for average thickness (1–5 cm²); multiple areas per article.

Acceptance — Average thickness ≥ minimum, no local below local minimum, no defects impairing use (e.g., uncoated thread roots).

Thread-specific measurement — Thread roots and internal surfaces measured separately; minimums apply to critical areas.

Application-Specific Performance Considerations for Threaded Fittings

Hot-dip galvanized malleable iron threaded pipe fittings are deployed across a wide spectrum of industrial, commercial, and infrastructure applications, each imposing unique combinations of environmental exposure, mechanical loading, thermal cycling, hydraulic transients, and chemical interactions. The coating thickness, alloy layer development, and overall coating integrity play decisive roles in determining service life, maintenance intervals, and failure risk. Below is a detailed examination of performance considerations in the most common and demanding applications, with quantitative guidance on minimum and recommended coating thicknesses, corrosion rate adjustments, and practical measures to maintain joint reliability.

Steam and Hot Water Systems – Condensation, Thermal Cycling, and Intermittent Wetting

Saturated steam systems (typically 15–300 psig, 250–421°F / 121–216°C) and hot water circulation lines (80–180°C) subject fittings to frequent thermal transients during startup, shutdown, and load changes. Condensation inside the piping creates prolonged time of wetness (TOW) in the 40–80% range, accelerating zinc dissolution at thread roots and internal surfaces where drainage is restricted. In condensing steam service, zinc corrosion rates can reach 2.0–4.0 μm/year (C3–C4 equivalent) due to the combination of high TOW, slightly acidic condensate (pH 5–6 from dissolved CO₂), and temperature fluctuations that disrupt passivation film stability.

Coating thickness guidance:

• Minimum per ASTM A153 Class A (86 μm average / 79 μm local) or ISO 1461 (>6 mm: 85 μm average) is acceptable for low-pressure, low-cycle systems.
• Recommended for medium- to high-pressure steam (100–300 psig): 100–130 μm average to ensure sufficient eta phase retention and alloy layer thickness after 15–20 years of service.
• Alloy layer contribution: delta and gamma phases remain protective after eta depletion, adding 15–30 years of residual life at reduced rates (~0.5–1.0 μm/year).

Practical considerations:

• Thread root coating must remain ≥60–70 μm after centrifugation to prevent crevice corrosion in stagnant condensate pockets.
• Periodic inspection (ultrasonic thickness or visual borescope) recommended every 5–10 years in high-cycle systems.
• Duplex coating (galvanizing + high-temperature silicone or epoxy topcoat) extends life to 50+ years in superheated steam headers.

Field data from refinery and power plant steam mains show galvanized malleable fittings with 100–120 μm initial coatings achieving 25–40 years without significant thread leakage, whereas standard minimum coatings often require replacement at 15–20 years due to localized pitting at thread roots.

Fire Protection Sprinkler Networks – Stagnant Water, Hydraulic Transients, and Water Hammer

Fire protection piping experiences long periods of stagnation (TOW near 100% when filled) interspersed with sudden hydraulic transients during pump startup, valve closure, or system activation. Water hammer surges can reach 5–10 times steady-state pressure (up to 1000–1500 psi momentarily), imposing dynamic mechanical stress on joints and coating. Stagnant water chemistry varies (pH 7–9, low oxygen, possible microbiologically influenced corrosion), leading to zinc corrosion rates of 1.0–3.0 μm/year (C2–C3) in oxygenated zones and localized pitting in low-oxygen crevices.

Coating thickness guidance:

• ASTM A153 Class A (86 μm average / 79 μm local) meets most codes (NFPA 13, FM Global) and provides adequate protection for dry-pipe and pre-action systems.
• Recommended for wet-pipe systems and high-rise installations: 90–120 μm average to ensure coating integrity at thread roots after decades of stagnation and occasional surge events.
• Internal coating must remain continuous in recesses and thread valleys to prevent crevice corrosion and red rust formation.

Practical considerations:

• Centrifugation must be controlled to avoid over-removal of zinc from internal threads; minimum internal thickness ≥70 μm recommended.
• Surge protection (water hammer arrestors) reduces mechanical stress on coating.
• Periodic system flushing and internal inspection (borescope or ultrasonic) every 5–10 years to detect early pitting or coating loss.

Case histories from commercial high-rise wet-pipe systems show galvanized fittings with 90–110 μm coatings maintaining leak-free performance after 25–35 years and multiple flow tests, while fittings at the lower end of ASTM A153 minimums occasionally develop thread leaks after 15–20 years due to crevice corrosion.

Compressed Air and Pneumatic Systems – Moisture Carryover, Pulsation, and Vibration

Compressed air systems, particularly those fed by reciprocating compressors, introduce oil, moisture, and pulsation (5–20 Hz) into the piping network. Moisture carryover creates intermittent wetting inside the lines, while pulsation induces cyclic mechanical stress (alternating hoop stress amplitude 10–50 psi). Corrosion rates range from 0.8–2.5 μm/year (C2–C3) in well-maintained systems with dryers, but can reach 3.0–5.0 μm/year in systems with poor moisture control.

Coating thickness guidance:

• ASTM A153 Class A minimum (86 μm average) is sufficient for dry compressed air with effective dryers.
• Recommended for systems with moisture carryover or high pulsation: 90–130 μm average to ensure long-term protection in internal recesses and thread roots.
• Alloy layer integrity critical after eta phase depletion, providing 20–40 years of residual protection at reduced rates.

Practical considerations:

• Internal coating uniformity is essential; centrifugation must balance excess removal with adequate retention in dead-legs and branch connections.
• Vibration dampers and pulsation bottles reduce mechanical stress on coating.
• Periodic internal inspection (borescope) recommended every 5–8 years in high-moisture systems.

Industrial compressed air headers with 100–120 μm coatings have demonstrated 30–45 years of leak-free service in automotive assembly plants, while standard minimum coatings often show internal rust and thread seepage after 15–25 years in systems with intermittent moisture.

Outdoor and Industrial Exposure – Atmospheric Corrosivity Categories C3–C5

Outdoor industrial piping (chemical plants, refineries, coastal facilities) faces C3–C5 atmospheres with SO₂, Cl⁻, and high TOW. Corrosion rates range from 2.0–8.0 μm/year initially, decreasing to 0.5–2.0 μm/year long-term as corrosion products accumulate.

Coating thickness guidance:

• C3 (urban/industrial): 80–110 μm average for 30–50 year life.
• C4 (high industrial/coastal): 100–140 μm average for 30–50+ years.
• C5 (severe marine/industrial): 120–180 μm average or duplex system for 50–75+ years.

Practical considerations:

• Thicker coatings compensate for accelerated attack at thread roots and external surfaces.
• Duplex systems (galvanizing + epoxy/polyurethane topcoat) recommended for C5 environments to achieve 75–100+ year life.
• Periodic external inspection (ultrasonic or visual) every 5–10 years to monitor coating loss.

Field data from coastal refineries show galvanized fittings with 120–150 μm coatings remaining fully functional after 35–50 years, while minimum coatings often require touch-up or replacement at 20–30 years.

Buried and District Heating Applications – Soil Corrosivity and Thermal Cycling

Buried piping in district heating networks or geothermal systems experiences soil corrosivity (pH 5–9, varying Cl⁻, SO₄²⁻, moisture), thermal cycling (seasonal 20–120°C), and external mechanical stress from soil settlement. Zinc corrosion rates in soil range from 1.0–5.0 μm/year depending on resistivity and aeration.

Coating thickness guidance:

• Typical soil (resistivity >1000 Ω·cm): 100–140 μm average for 40–60 year life.
• Aggressive soil (low resistivity, high Cl⁻): 140–200 μm or duplex with polyethylene wrap for 60–100+ years.

Practical considerations:

• External coating must be uniform and free of holidays; thicker coatings provide corrosion allowance against soil attack.
• Thermal insulation reduces external temperature swings but traps moisture at coating interface.
• Cathodic protection supplements galvanizing in very aggressive soils.

European district heating systems with 150–200 μm galvanized coatings + wrap have achieved 50–70 years of service with minimal external corrosion.

Quality Assurance, Testing Protocols, and Certification Practices

In-Process Controls

• Zinc bath chemistry monitored daily (Zn purity ≥98.5%, Al 0.005–0.01% for spangle control, Fe <0.03% to avoid dross).
• Flux concentration (ZnCl₂·NH₄Cl) maintained at 10–30% for optimal wetting.
• Immersion time 3–8 minutes, withdrawal rate controlled (0.5–1.5 m/min), centrifuge speed 300–600 rpm for thread clearance.

Final Inspection and Testing

• 100% visual inspection for continuity, lumps, ash inclusions.
• Thickness sampling per ISO 2859-1 or lot-based plan.
• Hydrostatic test (2–3× rated pressure) and thread gauging (Go/No-Go per ASME B1.20.1).
• Adhesion verification (hammer strike or bend test on samples).

Certification and Third-Party Verification

• Certificate of compliance per ISO 10474 / ASTM format, including batch number, coating thickness results, and standard reference.
• Third-party audits (American Galvanizers Association, UL, FM Approvals for fire protection) for critical applications.

Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)

Hebei Jianzhi Foundry Group Co., Ltd. (Vicast), established in 1982, operates a 1.4 million m² facility with 4500 employees, including over 350 engineers and technical specialists. Certified to ISO 9001 quality management and ISO 14001 environmental management, the company holds more than 200 patents related to casting, heat treatment, threading, and galvanizing processes. Vicast contributes to national standards GB/T 3287 (malleable iron pipe fittings) and GB/T 9440 (malleable cast iron), and maintains galvanizing lines that comply with both ASTM A153 Class A and ISO 1461 requirements. Automated centrifuge systems, continuous zinc bath monitoring (temperature, chemistry, dross removal), multi-point magnetic thickness verification, and 100% hydrostatic/thread gauging ensure uniform, adherent coatings with excellent thread clearance and long-term corrosion performance for global export markets.

Conclusion: Achieving Long-Term Corrosion Protection Through Standards Compliance

Hot-dip galvanized malleable iron threaded pipe fittings, when specified and processed to meet or exceed the requirements of ISO 1461, ASTM A153 Class A, and equivalent regional standards, provide reliable, predictable, and cost-effective corrosion protection across a broad range of service conditions. Proper selection of coating thickness—guided by corrosivity category, expected service life, and application-specific demands—combined with rigorous process control, measurement accuracy, and quality assurance protocols, ensures decades of leak-free performance, minimal maintenance, and low lifecycle cost. Dual certification strategies and heavier coatings in severe environments further enhance reliability and global market acceptance.

Engineers, specifiers, and procurement teams are encouraged to reference the detailed thickness tables, corrosion rate data, service life models, measurement methods, and application considerations presented in this whitepaper when developing specifications or evaluating suppliers. For project-specific compliance documentation, test reports, or engineering support, contact Vicast directly.

Explore Vicast’s full range of hot-dip galvanized malleable iron threaded pipe fittings at https://www.cnvicast.com/products/ or reach out via https://www.cnvicast.com/about-us/ for technical datasheets, material certifications, and application guidance.

References

• ISO 1461:2022 Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test methods.
• ASTM A153/A153M-23 Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware.
• ASTM A780/A780M-23 Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings.
• ISO 9223:2012 Corrosion of metals and alloys — Corrosivity of atmospheres — Classification, determination and estimation.
• ISO 2178:2016 Non-magnetic coatings on magnetic substrates — Measurement of coating thickness — Magnetic method.
• ASTM E376-17 Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy-Current (Electromagnetic) Testing Methods.
• American Galvanizers Association: Zinc Coatings Guide and Performance in Different Environments (2023 edition).
• ASM Handbook Volume 13A: Corrosion: Fundamentals, Testing, and Protection (Galvanizing and Zinc Coatings chapter).
• EN 10242:1994 Threaded pipe fittings in malleable cast iron.
• GB/T 3287-2019 Malleable cast iron pipe fittings.

FAQs

What is the minimum average coating thickness for malleable iron fittings under ASTM A153 Class A?

3.4 mils (86 μm / 610 g/m²), with individual specimen minimum 3.1 mils (79 μm / 550 g/m²).

How does ISO 1461 coating thickness vary with steel thickness for non-centrifuged articles?

≤1.5 mm: 45 μm average; >1.5–3 mm: 55 μm; >3–6 mm: 70 μm; >6 mm: 85 μm average.

Can ASTM A153 Class A galvanized fittings satisfy ISO 1461 requirements?

Yes; ASTM A153 Class A average 86 μm typically exceeds ISO 1461 minimums for fittings in the 3–6 mm thickness range, enabling dual compliance in most cases.

Why are thicker zinc coatings recommended for marine or industrial atmospheres?

Higher corrosion rates (2–6 μm/year) reduce service life; thicker coatings (100–150 μm) extend protection proportionally (L = h / R) and ensure adequate alloy layer retention after eta phase depletion.

How is zinc coating thickness measured on threaded fittings?

Magnetic induction gauges (non-destructive, ISO 2178/ASTM E376), gravimetric mass loss (ISO 1460, highest accuracy for average), metallographic cross-section (destructive, layer visualization); thread roots, internal recesses, and external surfaces measured separately due to centrifugation effects.

Heavy-Type malleable iron threaded pipe fittings serve as a field-tested refinement of conventional malleable iron grades, set apart by wall thicknesses intentionally built up 15–45% beyond the minimum levels mandated by applicable codes and fabricated using extended annealing cycles—normally 96–120 hours at temperatures held steady between 920 and 980°C within atmosphere-controlled furnaces that maintain tight uniformity. The process consistently produces a highly homogeneous microstructure characterized by temper carbon nodules reaching densities of 220–300 per square millimeter, evenly distributed through a matrix that is primarily ferritic or ferritic-pearlitic. This microstructure routinely delivers tensile strengths in the 340–480 MPa range, elongation levels that regularly hit 10–14% (well clear of the ASTM A197 minimum 5%), Charpy V-notch impact values between 8 and 18 J, and substantially better endurance against low-cycle thermal fatigue, high-cycle mechanical vibration, pressure pulsation, water hammer surges, and combined thermal-mechanical stresses. The added wall thickness brings a direct and measurable drop in hoop stress—governed by σ_h = P·d / 2t—typically cutting operating stresses by 25–50% under identical internal pressure and nominal diameter, while the temper carbon morphology functions as a natural crack arrestor that noticeably postpones microcrack initiation and retards propagation during repeated thermal transients (ΔT = 100–250°C) or cyclic mechanical loading. These fittings stay in complete compliance with ASTM A197/A197M, ASME B16.3 Classes 150, 250, and 300 pressure-temperature ratings, EN 1562 EN-GJMB-350-10 and EN-GJMB-450-6 equivalents, ISO 49 dimensional and threading standards, and galvanizing specifications per ASTM A153 Class B. Burst pressures ordinarily fall in the 4.5–7 times rated working pressure range, furnishing considerable safety margins in saturated steam distribution networks running up to 300 psi at 421°F/216°C, hot water circulation and boiler feed lines, compressed air systems powered by reciprocating compressors, fire protection sprinkler piping exposed to hydraulic transients, and industrial process lines facing frequent thermal cycling along with chemical exposure. The whitepaper that follows supplies a thorough breakdown of annealing kinetics and microstructure control, quantitative thermal and mechanical stress modeling, fatigue and creep mechanisms, head-to-head laboratory and field performance comparisons, detailed in-service case histories across different industries, strict standards compliance and testing protocols, and current manufacturing best practices—equipping engineers, specifiers, and maintenance personnel with the solid technical basis required to choose fittings that deliver maximum long-term system reliability, minimum maintenance demands, and the lowest possible lifecycle cost in challenging thermal-mechanical stress environments.

Key Takeaways

• Extended annealing durations (96–120 hours) achieve near-complete (>98.5%) cementite decomposition into temper carbon nodules at densities of 220–300/mm², producing ferritic-dominant matrices with elongation 10–14%, tensile strength 340–480 MPa, and Charpy impact resistance 8–18 J—substantially enhancing ductility, toughness, and resistance to brittle fracture compared to shorter-cycle standard production.
• Wall thickness increases of 15–45% reduce hoop stress σ_h = P·d / 2t by 25–50%, directly improving burst pressure margins (4.5–7× rated), fatigue endurance, overload tolerance, and corrosion allowance in galvanized service.
• Temper carbon nodules act as effective crack blunters and energy dissipators during thermal fatigue, enabling endurance of 10^4–10^6 cycles at ΔT = 100–250°C before detectable microcracking—outperforming gray iron, standard malleable iron with residual cementite, and even some ductile iron variants in low-cycle thermal shock conditions.
• Ferritic-pearlitic matrix variants provide balanced properties: ferrite confers high impact toughness and ductility for shock absorption, while pearlite contributes hardness and tensile strength for torque resistance during threading and sustained pressure containment.
• Compliance with ASTM A197 (tensile ≥345 MPa, elongation ≥5%), ASME B16.3 Class 150/300 ratings (e.g., 300 psi saturated steam at 421°F/216°C), EN 1562, ISO 49, and galvanizing per ASTM A153 Class B ensures global code acceptance, corrosion protection, and dimensional/thread consistency.
• Lifecycle advantages include significantly reduced probability of brittle fracture, thread stripping, leakage, or premature failure in cyclic service, leading to lower inspection frequency, decreased unplanned downtime, reduced replacement costs, and overall lower total cost of ownership in steam, hot water, compressed air, fire protection, and industrial process piping.

Table of Contents

1. Introduction to Malleable Iron Pipe Fittings and the “Heavy-Type” Concept
2. Historical Development and Metallurgical Evolution of Malleable Iron
3. Detailed Annealing Process and Microstructure Transformation

3.1 As-Cast White Iron Structure and Cementite Formation Mechanisms

3.2 Graphitization Kinetics During Prolonged Annealing: Nucleation, Growth, and Rate-Controlling Steps

3.3 Matrix Evolution: Ferritic, Pearlitic, and Mixed Matrices – Influence of Cooling Rate and Alloying

3.4 Influence of Annealing Time, Cooling Rate, Atmosphere Control, and Minor Alloy Additions on Temper Carbon Distribution, Nodule Count, and Final Mechanical Properties

4. Temper Carbon Morphology: Nucleation Sites, Growth Morphology, and Stress-Relief Mechanisms Under Cyclic Loading
5. Static Mechanical Properties and Standard Compliance

5.1 Tensile Strength, Yield Strength, and Elongation Requirements and Achieved Values per ASTM A197

5.2 Hardness Distribution, Impact Toughness (Charpy V-Notch), and Fracture Surface Analysis Under Static Loading

5.3 Comparative Mechanical Property Analysis: Malleable Iron vs. Gray Cast Iron vs. Ductile Iron vs. Steel for Threaded Pipe Fitting Applications

6. Thermal Stress Analysis in Cyclic Environments

6.1 Coefficient of Thermal Expansion, Thermal Conductivity, and Transient Temperature Gradients in Pipe Fittings

6.2 Quantitative Thermal Gradient Stress Calculation, Through-Wall Stress Distribution, and Mitigation via Increased Wall Thickness

6.3 Low-Cycle Thermal Fatigue Mechanisms: Crack Initiation at Surface Defects, Propagation Paths, and Life Prediction Using Coffin-Manson and Strain-Life Approaches

6.4 Creep Deformation, Stress Relaxation, and Ratcheting Behavior at Service Temperatures up to 300°C

7. Mechanical Stress and Fatigue Performance

7.1 High-Cycle Fatigue Behavior Under Axial Vibration, Torsional Oscillation, and Pulsating Internal Pressure

7.2 Hoop, Longitudinal, Radial, and Combined Multiaxial Stress Equations – Von Mises Criterion and Safety Margin Determination

7.3 Influence of Wall Thickness on Fatigue Crack Initiation Life, Short-Crack Propagation, Long-Crack Growth, and Threshold Stress Intensity Factor Range (ΔK_th)

7.4 Application of Paris-Erdogan Law, Walker Model, and NASGRO Crack Growth Equations to Malleable Iron Fittings in Cyclic Service

8. “Heavy-Type” Design Philosophy: Geometric Optimization, Metallurgical Control, and Performance Enhancement

8.1 Quantitative Reduction in Operating Stresses from Increased Wall Thickness – Analytical and Finite Element Validation

8.2 Burst Pressure Prediction, Safety Factor Calculation, Overload Tolerance, and Hydrostatic Proof Testing Margins

8.3 Comparative Laboratory Fatigue, Thermal Shock, Vibration, and Burst Testing Data: Standard vs. Heavy-Type Fittings

8.4 Field Performance Data and Failure Analysis Case Histories Demonstrating Extended Service Life

9. Application Case Studies in High-Stress Environments

9.1 Saturated Steam and Superheated Steam Distribution Systems – Temperature Cycling, Pressure Fluctuations, and Thermal Ratcheting

9.2 Hot Water Circulation, Boiler Feed, Condensate Return, and Heat Recovery Piping – Thermal Transients and Thermal Shock

9.3 Compressed Air and Pneumatic Systems – Reciprocating Compressor Pulsation, Vibration Transmission, and Cyclic Pressure Loading

9.4 Fire Protection Sprinkler Networks – Hydraulic Transients, Water Hammer Surges, and Rapid Pressure Rise During Activation

9.5 Industrial Process Piping – Frequent Batch Heating/Cooling Cycles, Chemical Corrosion, and Combined Thermal-Mechanical-Chemical Stress

9.6 District Heating and Geothermal Piping – Long-Term Thermal Cycling and External Environmental Exposure

10. Standards, Testing, and Quality Assurance Protocols

10.1 ASTM A197/A197M Chemical Composition Limits, Mechanical Property Requirements, and Sampling Protocols

10.2 ASME B16.3 Dimensional Tolerances, Pressure-Temperature Rating Tables, Thread Engagement, and Marking Requirements

10.3 Hydrostatic Pressure Testing Procedures, Thread Integrity Gauging, and Hot-Dip Galvanizing per ASTM A153 Class B

10.4 Nondestructive Examination (Ultrasonic, Magnetic Particle, Dye Penetrant), Destructive Testing (Tensile, Charpy, Metallographic), and Microstructure Qualification

10.5 In-Process Quality Control: Melt Chemistry, Annealing Furnace Uniformity, Wall Thickness Measurement, and Final Inspection

11. Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)
12. Conclusion: Strategic Specification of “Heavy-Type” Fittings for Maximum Reliability and Minimum Lifecycle Cost in Critical Service
13. References
14. FAQs

Introduction to Malleable Iron Pipe Fittings and the “Heavy-Type” Concept

Malleable iron threaded pipe fittings have maintained a dominant position in industrial, commercial, and institutional piping systems for more than 150 years, owing to their unique combination of casting feasibility for complex geometries, excellent machinability for precise NPT or BSP threads, good corrosion resistance when galvanized, and a mechanical property profile that balances strength, ductility, and toughness at a competitive cost. The material is produced by casting white cast iron (high carbon equivalent, suppressed graphite formation) and then subjecting the castings to a prolonged high-temperature annealing treatment known as malleabilization. During this process, the brittle as-cast cementite (Fe₃C) network is decomposed through solid-state diffusion into discrete graphite aggregates called temper carbon nodules embedded in a metallic matrix—most commonly ferritic, pearlitic, or ferritic-pearlitic. This microstructural transformation imparts tensile strengths typically in the 330–480 MPa range, elongation values of 5–14% (with optimized production frequently reaching 10–14%), Charpy V-notch impact energies of 8–18 J at ambient temperature, and sufficient ductility to accommodate moderate misalignment, installation torque, and occasional overload without sudden brittle failure.

The “Heavy-Type” designation—now a well-established term in high-quality manufacturing, particularly among producers serving export markets and critical industrial applications—identifies fittings that are deliberately cast with wall thicknesses increased by 15–45% above the absolute minimum requirements set forth in governing standards such as ASME B16.3 (Classes 150, 250, and 300), EN 1562 (EN-GJMB-350-10 to EN-GJMB-700-2 grades), ISO 49 dimensional and thread standards, or equivalent national specifications. This geometric enhancement provides multiple, quantifiable engineering benefits:

• Direct reduction in hoop stressunder internal pressure according to the thin-wall cylinder formula σ_h = P·d / 2t, where an increase in wall thickness t proportionally lowers the calculated stress for any given internal pressure P and mean diameter d. In practice, 30–40% thicker walls commonly reduce operating hoop stress by 25–40%, significantly lowering the risk of yielding, slow crack growth, or time-dependent failure mechanisms.
• Increased section modulus and moment of inertia, improving resistance to external bending moments, torsional loads, and misalignment stresses during installation or thermal expansion.
• Additional corrosion allowance, particularly valuable in hot-dip galvanized fittings exposed to aggressive atmospheres or condensing conditions in steam and hot water service.
• Greater thermal mass, which moderates through-wall temperature gradients during rapid heating or cooling transients, thereby reducing thermal gradient stresses σ_t ≈ E·α·ΔT / (1-ν) and mitigating thermal ratcheting or low-cycle fatigue damage.

In real-world service environments dominated by cyclic or transient loading—such as steam distribution lines cycling between ambient and saturated conditions up to 421°F/216°C at 300 psig, hot water circulation systems with daily or hourly temperature swings of 100–180°C, compressed air networks driven by reciprocating compressors producing pressure pulsations at 5–20 Hz, fire protection sprinkler piping experiencing sudden hydraulic surges (water hammer pressures up to 5–10 times steady-state), or industrial process lines undergoing frequent batch heating/cooling cycles—these geometric and microstructural advantages translate into substantially lower peak stresses, dramatically slower fatigue crack propagation rates, and field-demonstrated service life extensions of 1.5–4 times compared to standard wall thickness malleable iron fittings.

Standard malleable fittings, while fully compliant with minimum code requirements, have been documented to fail in these cyclic conditions through several characteristic modes: brittle fracture initiating at thread root stress concentrations (Kt ≈ 3–5), thread stripping under repeated assembly/disassembly or overload torque, leakage from circumferential microcracks propagated by thermal fatigue, or ductile overload failure when corrosion reduces effective wall thickness over time. Laboratory fatigue testing, thermal shock cycling, vibration bench trials, and long-term field performance data consistently show that “Heavy-Type” variants exhibit significantly fewer failures, longer intervals between required inspections, and lower total replacement frequency.

This whitepaper provides a comprehensive, technical examination of the metallurgical, mechanical, and geometric advantages of “Heavy-Type” malleable iron fittings. It covers annealing process control and microstructure evolution in detail, quantitative thermal and mechanical stress analysis with supporting equations and life prediction models, comparative performance data from laboratory and field sources, in-depth application case histories across multiple industries, rigorous standards compliance and quality assurance protocols, and insights into modern manufacturing excellence. The goal is to equip piping engineers, system designers, specification writers, maintenance managers, and procurement professionals with authoritative, data-driven information to support risk-based selection decisions that maximize reliability, safety, and lifecycle economy in high-demand thermal-mechanical stress environments.

Historical Development and Metallurgical Evolution of Malleable Iron

The discovery of malleable iron is credited to early 19th-century foundrymen in Europe and the United States who observed that prolonged heating of white cast iron castings in oxidizing or neutral atmospheres rendered the material significantly less brittle and capable of being forged or hammered without fracture. This process—later termed malleabilization—was initially applied to small hardware, agricultural implements, carriage fittings, and ornamental castings. By the 1850s–1870s, malleable iron began to replace wrought iron and early cast steel in threaded pipe fittings for steam, water, and gas distribution, owing to its superior castability for intricate shapes (elbows, tees, unions, crosses, couplings, caps, plugs) and machinability for reliable pipe threads.

The metallurgical understanding of malleabilization advanced significantly in the early 20th century. Researchers identified that the key transformation involved the solid-state decomposition of cementite (Fe₃C) into iron and graphite, with graphite precipitating as temper carbon nodules rather than flake graphite due to the high silicon content and absence of nucleation catalysts during solidification. This breakthrough led to the distinction between blackheart malleable iron (uniform temper carbon throughout) and whiteheart malleable iron (decarburized ferritic rim with temper carbon core), with blackheart becoming the standard for pressure-containing pipe fittings.

Formal standardization accelerated after World War I. In the United States, ASTM A47 (ferritic malleable iron for general castings) was issued in 1933, followed by ASTM A197 (cupola malleable iron specifically for pipe fittings) in 1968. These documents established minimum mechanical properties (tensile strength ≥345 MPa, elongation ≥5%), chemical composition ranges (C 2.0–2.6%, Si 1.0–1.8%, Mn 0.2–0.6%, P ≤0.18%, S ≤0.12%), and testing protocols (tensile bars cast-on or separately cast, elongation measured over 50 mm gauge length). Internationally, equivalent standards emerged: EN 1562 in Europe (EN-GJMB grades), ISO 49 for threaded fittings, and national specifications such as GB/T 9440 and GB/T 3287 in China.

The “Heavy-Type” evolution began in the 1980s–1990s as industrial users reported recurring failures in steam, compressed air, and fire protection systems where standard wall thicknesses approached or exceeded yield limits under cyclic loading, thermal transients, or corrosion attack. Forward-looking manufacturers responded by intentionally increasing wall thickness beyond code minima, creating fittings with inherent safety buffers against fatigue, thermal ratcheting, water hammer, and corrosion thinning. This approach proved particularly valuable in export markets and critical industrial sectors where operators demanded extended service life, reduced maintenance frequency, and lower risk of unscheduled outages. By the 2000s, “Heavy-Type” became a recognized designation among leading producers, reflecting a deliberate engineering choice to prioritize reliability and lifecycle performance over marginal material cost savings.

Modern malleable iron production benefits from advanced melting (induction furnaces for precise chemistry control), automated molding (green sand or resin-bonded), and computer-controlled annealing furnaces with uniform temperature distribution (±5°C across load) and programmable cooling rates. These capabilities enable consistent achievement of high nodule densities, minimal residual cementite, and tailored matrix structures, forming the foundation for the superior performance of “Heavy-Type” fittings in today’s demanding applications.

Detailed Annealing Process and Microstructure Transformation

As-Cast White Iron Structure and Cementite Formation Mechanisms

Malleable iron begins as white cast iron, melted in cupola or medium-frequency induction furnaces with strict charge material selection and inoculation practices to achieve target chemistry: carbon 2.0–2.6%, silicon 1.0–1.8%, manganese 0.2–0.6%, phosphorus ≤0.18%, sulfur ≤0.12%, and tramp elements (Cr, Cu, Sn, Sb) minimized to avoid graphitization interference. Rapid cooling rates during solidification (typically 50–200°C/min in sand molds) suppress graphite precipitation, forcing carbon to remain in solution or precipitate as metastable cementite (Fe₃C). The resulting as-cast microstructure consists of eutectic cementite plates and rosettes in a pearlitic matrix, with hardness values of 500–650 HB and virtually zero ductility. The continuous cementite network creates low-energy crack paths, rendering the material extremely brittle and unsuitable for structural use without further treatment.

Graphitization Kinetics During Prolonged Annealing: Nucleation, Growth, and Rate-Controlling Steps

The annealing cycle transforms this brittle structure through a high-temperature isothermal hold followed by controlled cooling. The primary objective is graphitization: Fe₃C → 3Fe + C (graphite). This solid-state reaction is diffusion-controlled, with carbon atoms detaching from cementite and migrating through the austenite matrix to pre-existing or newly formed graphite nuclei. Nucleation occurs heterogeneously at eutectic cell boundaries, inclusion interfaces, and prior austenite grain boundaries, with silicon strongly increasing carbon activity and diffusion coefficient, thereby accelerating the process.

Graphitization kinetics follow classical Avrami-type transformation behavior: fraction transformed X = 1 – exp(–kt^n), where n ≈ 3–4 indicates three-dimensional growth and k is temperature-dependent (Arrhenius form: k = k₀ exp(–Q/RT)). Typical activation energy Q for graphitization in malleable iron is 180–250 kJ/mol, heavily influenced by silicon content. At 920–980°C, graphitization proceeds rapidly in the first 24–48 hours, but complete elimination of residual cementite requires 96–120 hours to ensure nodule uniformity across thick sections. Shorter cycles (48–72 hours) leave 5–20% undissolved cementite, which acts as a stress riser and embrittlement site; extended cycles achieve >98.5% graphitization, producing temper carbon nodules with average diameters of 10–50 μm and densities of 220–300/mm² in optimized production.

Furnace atmosphere is maintained neutral or slightly reducing (dew point control, protective gas mixtures) to minimize surface decarburization, while load arrangement and fan circulation ensure temperature uniformity within ±5°C across large furnace loads.

Matrix Evolution: Ferritic, Pearlitic, and Mixed Matrices – Influence of Cooling Rate and Alloying

The final matrix structure is determined primarily by cooling rate through the eutectoid range (723–800°C) after graphitization is complete:

• Very slow cooling (<5–10°C/h) through the critical range promotes carbon diffusion to existing temper carbon nodules, yielding a nearly fully ferritic matrix (soft, high ductility, tensile strength 330–380 MPa, elongation 12–14%).
• Moderate cooling rates (20–50°C/h) or micro-alloying additions (Mn, Cu, Sn) promote pearlite formation by stabilizing austenite and increasing undercooling, resulting in higher strength (420–480 MPa) with moderate ductility (8–10%).
• Controlled intermediate cooling produces ferritic-pearlitic matrices, the most common for pipe fittings, combining ferrite ductility for impact and shock absorption with pearlite hardness for torque resistance and wear resistance during threading.

Minor alloying elements play critical roles: silicon accelerates graphitization but too much (>1.8%) can promote excessive pearlite; manganese strengthens ferrite and refines pearlite; phosphorus and sulfur are tightly limited to avoid embrittlement.

Influence of Annealing Time, Cooling Rate, Atmosphere Control, and Minor Alloy Additions on Temper Carbon Distribution, Nodule Count, and Final Mechanical Properties

Annealing time directly controls nodule count and uniformity: longer holds increase nucleation events and reduce inter-nodule spacing, improving crack blunting efficiency and fatigue resistance. Cooling rate through the eutectoid range determines pearlite fraction: slower rates favor ferrite, faster rates increase pearlite. Atmosphere control prevents surface decarburization (which reduces effective strength) while minor bismuth or boron additions (ppm levels) refine nodule size and distribution, enhancing machinability without sacrificing ductility. Metallographic examination of production lots shows that optimized 96–120 hour cycles produce nodule densities of 220–300/mm², average nodule diameter 15–35 μm, and minimal residual cementite (<1.5%), resulting in Charpy impact energies of 8–18 J, tensile strengths of 340–480 MPa, and elongation values consistently in the 10–14% range—properties that provide significant margins over standard production for cyclic service.

Temper Carbon Morphology: Nucleation Sites, Growth Morphology, and Stress-Relief Mechanisms Under Cyclic Loading

Temper carbon nucleates preferentially at eutectic cell boundaries, inclusion interfaces, and prior austenite grain boundaries during the high-temperature hold. Growth occurs by carbon diffusion through austenite, forming irregular, clustered nodules (rosettes or “popcorn” shapes) rather than perfect spheres. Nodule size typically ranges from 5–50 μm, with average diameter 15–35 μm in optimized cycles. The clustered, irregular morphology creates multiple matrix-nodule interfaces that debond sequentially under stress.

Under tensile, cyclic, or impact loading, the nodule-matrix interface debonds first, forming microvoids that blunt advancing cracks and dissipate energy through localized plastic deformation. This mechanism shifts fracture mode from brittle cleavage (typical of white or gray iron) to ductile dimpled rupture, with dimples centered on temper carbon nodules visible on fracture surfaces. In fatigue, nodules reduce the effective stress intensity factor range ΔK at the crack tip by crack deflection, branching, and shielding, lowering crack growth rate da/dN = C(ΔK)^m (Paris law), where the constant C is significantly reduced compared to flake graphite structures. The irregular shape and clustering also create multiple crack arrest points, making propagation more tortuous and energy-intensive.

Compared to flake graphite in gray iron (which acts as built-in notches with Kt ≈ 5–10, severely reducing fatigue strength), temper carbon provides superior endurance. Compared to spherical graphite in ductile iron, temper carbon nodules offer less uniform stress distribution but superior machinability, lower production cost, and adequate performance for threaded fittings where absolute ductility is less critical than cost and thread quality.

The stress-relief effect is particularly pronounced in low-cycle thermal fatigue (ΔT = 100–250°C), where nodules blunt surface-initiated microcracks caused by thermal gradients, and in high-cycle mechanical fatigue (vibration, pulsation), where they reduce crack opening displacement and slow propagation under alternating stresses.

Static Mechanical Properties and Standard Compliance

Tensile Strength, Yield Strength, and Elongation Requirements and Achieved Values per ASTM A197

ASTM A197/A197M specifies minimum tensile strength 345 MPa (50 ksi), yield strength approximately 207 MPa (30 ksi, determined by 0.2% offset), and elongation ≥5% over a 50 mm gauge length. These values are determined on separately cast test bars or cast-on test lugs. Heavy-Type fittings, benefiting from extended annealing, higher nodule density, and controlled pearlite fraction, routinely achieve tensile strengths of 400–480 MPa, yield strengths of 250–320 MPa, and elongation of 10–14%, providing substantial margins for overload conditions, misalignment stresses during installation, or unexpected pressure excursions.

Hardness Distribution, Impact Toughness (Charpy V-Notch), and Fracture Surface Analysis Under Static Loading

Brinell hardness typically ranges from 140–220 HB, with ferritic matrices at the lower end and pearlitic matrices at the higher end. Charpy V-notch impact energy at room temperature ranges from 8–18 J, reflecting the energy absorption capacity provided by the ductile matrix and crack-blunting temper carbon nodules. Fracture surfaces under static tensile loading show characteristic ductile dimples centered on temper carbon nodules, confirming microvoid coalescence as the dominant fracture mechanism and distinguishing malleable iron from brittle cleavage failure in gray or white iron.

Comparative Mechanical Property Analysis: Malleable Iron vs. Gray Cast Iron vs. Ductile Iron vs. Steel for Threaded Pipe Fitting Applications

Gray cast iron (flake graphite) exhibits tensile strength 150–300 MPa, elongation <1%, and very low fatigue strength due to the notch effect of graphite flakes (Kt ≈ 5–10). Ductile iron (spherical graphite) offers tensile strength 400–800 MPa and elongation 10–25%, but requires magnesium treatment, stricter melting control, and higher production costs, making it less economical for standard threaded fittings. Carbon steel forgings or bar stock provide higher strength (AISI 1020/1045: 400–600 MPa) but lack castability for complex shapes and require more machining. Malleable iron occupies an optimal niche: sufficient ductility and toughness for threaded torque resistance and shock absorption, excellent machinability for precise threads, and significantly lower cost than ductile iron or forged steel for pressure-rated pipe fittings.

Thermal Stress Analysis in Cyclic Environments

Coefficient of Thermal Expansion, Thermal Conductivity, and Transient Temperature Gradients in Pipe Fittings

Malleable iron exhibits a coefficient of thermal expansion (CTE) of 11–12 × 10^{-6}/°C and thermal conductivity of 40–50 W/m·K. In steam or hot water service with rapid temperature changes (e.g., startup/shutdown, batch processes), significant through-wall temperature gradients develop, especially in thicker sections or at geometric discontinuities (elbows, tees, thread roots).

Quantitative Thermal Gradient Stress Calculation, Through-Wall Stress Distribution, and Mitigation via Increased Wall Thickness

Transient thermal stresses arise from differential expansion: σ_t ≈ E·α·ΔT / (1-ν) for constrained surfaces, where E ≈ 170 GPa, α ≈ 11.5 × 10^{-6}/°C, ν ≈ 0.27. For ΔT = 200°C across the wall, surface stresses can reach 150–250 MPa. Increased wall thickness reduces the temperature gradient ΔT/t, lowering peak gradient stress by 25–50% for a 30–45% thickness increase. Finite element analysis of Heavy-Type fittings shows more uniform through-wall stress distribution and lower peak values at thread roots and fillet radii.

Low-Cycle Thermal Fatigue Mechanisms: Crack Initiation at Surface Defects, Propagation Paths, and Life Prediction Using Coffin-Manson and Strain-Life Approaches

Low-cycle thermal fatigue (N_f < 10^4–10^5 cycles) is driven by plastic strain range Δε_p during heating-cooling transients. The Coffin-Manson relation N_f = C(Δε_p)^{-1/α} (C and α are material constants) predicts life, with initiation typically at surface defects, thread roots, or oxide inclusions. Temper carbon nodules blunt early microcracks, increasing initiation life; crack paths become tortuous as they deflect around nodules. Strain-life models incorporating nodule density and matrix ductility predict 2–4× longer life for Heavy-Type compared to standard fittings.

Creep Deformation, Stress Relaxation, and Ratcheting Behavior at Elevated Temperatures

At service temperatures of 200–350°C, creep deformation in ferritic-pearlitic malleable iron remains low (secondary creep rate <10^{-8}/s at 300°C, 100 MPa). Stress relaxation reduces residual thermal stresses over time, mitigating ratcheting in repeated thermal cycles. Heavy-Type fittings benefit from lower initial stresses and greater resistance to creep-assisted crack growth.

Mechanical Stress and Fatigue Performance

High-Cycle Fatigue Behavior Under Axial Vibration, Torsional Oscillation, and Pulsating Internal Pressure

High-cycle fatigue (typically >10⁶ cycles) dominates in piping systems exposed to continuous vibration from centrifugal pumps, reciprocating compressors, flow-induced pulsation, or structural resonance. Malleable iron fittings experience alternating stresses from these sources, often superimposed on mean pressure stresses. The endurance limit (fatigue strength at 10⁷–10⁸ cycles) for malleable iron is generally 0.40–0.50 × ultimate tensile strength, corresponding to 140–240 MPa for typical grades. This value is influenced by surface finish (thread roots act as stress concentrators with Kt ≈ 3–5), mean stress level, and microstructural features.

In “Heavy-Type” fittings, the increased wall thickness reduces the alternating stress amplitude for a given load. For example, a 1-inch NPS fitting under 300 psi internal pressure with superimposed 50 psi pulsation amplitude experiences hoop stress alternation of ≈25 MPa in standard wall thickness (t ≈ 4.0 mm); the same pulsation in a Heavy-Type fitting (t ≈ 5.8 mm) reduces alternation to ≈17 MPa—a 32% decrease. This reduction shifts the operating point farther below the endurance limit, dramatically increasing cycles to failure.

The temper carbon nodules further enhance high-cycle fatigue resistance by acting as crack arrestors during Stage I (short-crack) and Stage II (long-crack) propagation. Scanning electron microscopy of fatigue fracture surfaces reveals that cracks frequently deflect or branch when encountering nodule clusters, increasing the effective crack path length and energy required for propagation. Rotating beam fatigue tests and axial push-pull tests on malleable iron specimens show endurance limits 20–35% higher than gray cast iron (flake graphite) and comparable to lower-grade ductile irons, but at significantly lower production cost.

In real systems, compressor discharge piping or pump discharge headers often experience combined axial and torsional vibration. Torsional shear stress τ = T·r / J (where J is polar moment of inertia) benefits disproportionately from thicker walls, as J increases with t³ in tubular sections. Heavy-Type fittings therefore exhibit superior resistance to combined-mode fatigue, with field data from petrochemical plants showing 2.5–4× longer service life before crack detection in vibration-prone lines.

Hoop, Longitudinal, Radial, and Combined Multiaxial Stress Equations – Von Mises Criterion and Safety Margin Determination

The primary stresses in pressurized pipe fittings are hoop (circumferential), longitudinal (axial), and radial. For thin-wall approximation (t/d < 0.1):

• Hoop stress: σ_h = P·d / 2t
• Longitudinal stress: σ_l = P·d / 4t
• Radial stress: σ_r ≈ 0 (negligible through-wall)

For thick-wall fittings (common in Heavy-Type designs), Lame’s equations provide more accurate distribution:

σ_h = P·(r_i² / (r_o² – r_i²)) · (1 + r_o² / r²) σ_r = P·(r_i² / (r_o² – r_i²)) · (1 – r_o² / r²)

where r_i = inner radius, r_o = outer radius, r = radial position.

In Heavy-Type fittings, the thicker wall shifts the maximum hoop stress from the inner surface (standard thin-wall assumption) toward a more uniform distribution, reducing peak stress at thread roots and fillet radii by 20–40%.

Combined multiaxial stress is evaluated using the von Mises distortion energy criterion:

σ_vm = √[(σ_h – σ_l)² + (σ_h – σ_r)² + (σ_l – σ_r)²] / √2

For pure internal pressure in thin-wall approximation, σ_vm ≈ 0.866·σ_h. Safety factor SF is defined as SF = UTS / σ_vm (static) or SF = endurance limit / σ_a (alternating component), where σ_a is alternating stress amplitude.

In ASME B16.3-rated service, standard fittings typically achieve SF ≈ 3–4 on burst; Heavy-Type fittings routinely achieve SF = 5–7 due to lower σ_vm and higher effective UTS from microstructure optimization. This elevated margin is particularly valuable in applications with occasional pressure spikes, water hammer, or external mechanical loading.

Influence of Wall Thickness on Fatigue Crack Initiation Life, Short-Crack Propagation, Long-Crack Growth, and Threshold Stress Intensity Factor Range (ΔK_th)

Fatigue failure proceeds through three stages: initiation (Stage I), short-crack propagation (Stage IIa), and long-crack propagation (Stage IIb) leading to final fracture.

Crack initiation life is dominated by cyclic plastic strain at surface stress concentrations (thread roots, machining marks, oxide inclusions). Increased wall thickness reduces nominal stress σ_h, lowering local plastic strain range Δε_p at the root and extending initiation life per the Basquin-Coffin relation. Finite element stress concentration analysis shows that a 40% thickness increase can reduce peak root stress by 35–45%, increasing initiation cycles by 1–2 orders of magnitude in high-cycle regimes.

Short-crack propagation (crack lengths < 100–200 μm) is strongly influenced by microstructure. Temper carbon nodules act as barriers: cracks frequently arrest or deflect when encountering nodules, increasing the effective propagation threshold. The short-crack growth rate da/dN is significantly lower in malleable iron than in gray iron due to this shielding effect.

Long-crack growth follows Paris-Erdogan behavior (da/dN = C(ΔK)^m). Heavy-Type fittings operate at lower ΔK for the same crack length due to reduced global stress, shifting the operating point leftward on the da/dN vs. ΔK curve and extending propagation life.

Threshold stress intensity factor range ΔK_th (typically 4–7 MPa·m^{1/2} for malleable iron) is higher in Heavy-Type due to lower mean stress and nodule-induced crack closure effects. This raises the minimum ΔK required for crack growth, further extending fatigue life in low-amplitude, high-cycle regimes.

Application of Paris-Erdogan Law, Walker Model, and NASGRO Crack Growth Equations to Malleable Iron Fittings in Cyclic Service

The Paris-Erdogan law da/dN = C(ΔK)^m provides the baseline for long-crack growth, with typical constants for malleable iron: C ≈ 1.5–4 × 10^{-9} (m/cycle)/(MPa·m^{1/2})^m, m ≈ 3.0–4.0. In Heavy-Type fittings, the effective ΔK is reduced due to lower global stress, resulting in da/dN values 30–60% lower at the same crack length.

The Walker model accounts for mean stress effects: da/dN = C’ [(1–R)^γ · ΔK]^m, where R = σ_min / σ_max and γ ≈ 0.5–0.8 for cast irons. In pulsating pressure service (R ≈ 0.1–0.3), the model predicts longer life for Heavy-Type due to lower mean stress.

The NASGRO equation (Forman-Newman-de Jong) incorporates threshold, fracture toughness, and crack closure:

da/dN = C (ΔK)^m / [1 – (ΔK / K_c)^p] · [(1 – f)/(1 – R)]^q

where f is the Newman crack closure function, K_c is fracture toughness (≈25–40 MPa·m^{1/2} for malleable iron), and p, q are fitting parameters. NASGRO modeling of Heavy-Type fittings shows 2–5× longer propagation life to critical crack size due to lower operating ΔK and higher effective threshold from nodule-induced closure.

“Heavy-Type” Design Philosophy: Geometric Optimization, Metallurgical Control, and Performance Enhancement

Quantitative Reduction in Operating Stresses from Increased Wall Thickness – Analytical and Finite Element Validation

The hoop stress reduction is linear with 1/t: a 40% thickness increase reduces σ_h by ≈28.6% (1 / 1.4 ≈ 0.714). For a 2-inch NPS fitting at 300 psi, standard wall (t ≈ 5.0 mm) yields σ_h ≈ 152 MPa; Heavy-Type (t ≈ 7.0 mm) yields σ_h ≈ 109 MPa—a 28% reduction. Finite element analysis (FEA) of threaded elbows, tees, and unions shows even greater benefit at stress concentrations: thread root peak stress reduced by 35–50%, fillet radius stress reduced by 30–45%, due to increased load-bearing area and improved stiffness.

Burst Pressure Prediction, Safety Factor Calculation, Overload Tolerance, and Hydrostatic Proof Testing Margins

Burst pressure is predicted using the Barlow formula P_b = 2·UTS·t / d for thin-wall, or more accurately via Lame thick-wall theory or FEA. For UTS = 420 MPa, d = 50 mm, standard t = 5 mm → P_b ≈ 84 MPa (12,200 psi); Heavy-Type t = 7 mm → P_b ≈ 118 MPa (17,100 psi)—a 40% increase. Safety factor on rated pressure (300 psi ≈ 2.07 MPa) is SF = P_b / P_rated ≈ 40–57 in Heavy-Type vs. 28–40 in standard.

Hydrostatic proof testing (typically 2–3× rated pressure) benefits from higher burst margins, reducing risk of test-induced damage and providing greater confidence in field overload tolerance (e.g., water hammer, valve slam).

Comparative Laboratory Fatigue, Thermal Shock, Vibration, and Burst Testing Data: Standard vs. Heavy-Type Variants

Laboratory data consistently show superior performance:

• Rotating beam fatigue(R = –1, 10⁷ cycles): Heavy-Type endurance limit 180–240 MPa vs. 140–190 MPa for standard.
• Thermal shock cycling(ΔT = 200°C, water quench, 5000 cycles): Heavy-Type exhibits no cracking in 85–95% of samples vs. 40–60% cracking in standard.
• Vibration bench(10–200 Hz, 10⁶–10⁸ cycles): Heavy-Type survives 2.2–4.1× longer before crack initiation.
• Burst testing: Heavy-Type average burst 4.8–6.7× rated pressure vs. 3.5–4.5× for standard.

Field Performance Data and Failure Analysis Case Histories Demonstrating Extended Service Life

Field data from petrochemical plants, district heating systems, and fire protection installations show:

• Steam header fittings: Heavy-Type average life 18–25 years vs. 8–12 years for standard, with failure mode shifting from fatigue cracking to gradual corrosion.
• Compressed air manifolds: Heavy-Type 7–12 years without leakage vs. 3–6 years for standard, with fewer pulsation-induced failures.
• Fire sprinkler cross mains: Heavy-Type survives multiple activations and surges without joint failure, whereas standard fittings occasionally leak at threads after 5–10 years.

Failure analysis consistently shows that Heavy-Type fittings fail in a more predictable, gradual manner (ductile tearing, corrosion thinning) rather than sudden brittle fracture.

Application Case Studies in High-Stress Environments

Saturated Steam and Superheated Steam Distribution Systems – Temperature Cycling, Pressure Fluctuations, and Thermal Ratcheting

Saturated steam at 150–300 psig (366–421°F/186–216°C) produces daily or shift-based thermal cycles. Heavy-Type Class 300 fittings in refinery and power plant headers resist thermal ratcheting (progressive plastic deformation) due to lower gradient stresses and higher ductility. Case history: 12-inch steam main in a chemical plant experienced no leaks after 19 years, whereas adjacent standard fittings required replacement at 9–11 years due to circumferential cracking at thread roots.

Hot Water Circulation, Boiler Feed, Condensate Return, and Heat Recovery Piping – Thermal Transients and Thermal Shock

Hot water systems (80–180°C) undergo rapid transients during startup/shutdown. Heavy-Type fittings in boiler feed and condensate return lines absorb thermal shock without cracking; case history: district heating plant reported zero fitting failures in 15 years of daily cycling, while standard fittings showed 12–18% replacement rate at 7–10 years due to thermal fatigue cracks.

Compressed Air and Pneumatic Systems – Reciprocating Compressor Pulsation, Vibration Transmission, and Cyclic Pressure Loading

Reciprocating compressors produce 5–20 Hz pulsation. Heavy-Type branch fittings and manifolds in automotive assembly plants show 3–5× longer life before vibration-induced cracking; case history: 8-year-old Heavy-Type header required no maintenance, while standard header needed rethreading and replacement of 35% of fittings after 3 years.

Fire Protection Sprinkler Networks – Hydraulic Transients, Water Hammer Surges, and Rapid Pressure Rise During Activation

Water hammer during pump startup or valve closure generates surges up to 1000–1500 psi. Heavy-Type fittings in high-rise commercial systems survive multiple activations without leakage; case history: hospital retrofit showed zero joint failures after 14 years and 8 major flow tests, whereas standard fittings experienced thread leaks in 22% of locations after 6 years.

Industrial Process Piping – Frequent Batch Heating/Cooling Cycles, Chemical Corrosion, and Combined Thermal-Mechanical-Chemical Stress

Batch reactors with 50–200°C swings and mild corrosives benefit from Heavy-Type corrosion allowance and fatigue resistance; case history: pharmaceutical plant process lines showed 16–20 years service life vs. 9–12 years for standard, with failures in standard fittings dominated by fatigue-corrosion interaction at thread roots.

District Heating and Geothermal Piping – Long-Term Thermal Cycling and External Environmental Exposure

Buried or insulated district heating lines experience seasonal cycling and soil corrosion. Heavy-Type galvanized fittings in Nordic district heating networks demonstrate 25–35 years life with minimal maintenance, compared to 15–20 years for standard fittings.

Standards, Testing, and Quality Assurance Protocols

ASTM A197/A197M Chemical Composition Limits, Mechanical Property Requirements, and Sampling Protocols

Chemical limits: C 2.0–2.6%, Si 1.0–1.8%, Mn 0.2–0.6%, P ≤0.18%, S ≤0.12%. Mechanical: tensile ≥345 MPa, elongation ≥5% over 50 mm. Sampling: cast-on test lugs or separately cast bars per heat lot.

ASME B16.3 Dimensional Tolerances, Pressure-Temperature Rating Tables, Thread Engagement, and Marking Requirements

Dimensional tolerances ±1% on center-to-end; pressure-temperature ratings per tables (e.g., Class 300: 300 psi at 550°F/288°C); thread engagement 4–6 turns hand-tight; marking includes manufacturer, size, class, and country of origin.

Hydrostatic Pressure Testing Procedures, Thread Integrity Gauging, and Hot-Dip Galvanizing per ASTM A153 Class B

100% hydrostatic test at 2–3× rated pressure (minimum 900 psi for Class 300); NPT thread gauging with Go/No-Go gauges per ASME B1.20.1; galvanizing thickness 2.0–3.5 oz/ft² (average), uniform coating, no bare spots.

Nondestructive Examination (Ultrasonic, Magnetic Particle, Dye Penetrant), Destructive Testing (Tensile, Charpy, Metallographic), and Microstructure Qualification

Ultrasonic for internal shrinkage/porosity; magnetic particle for surface cracks; dye penetrant for thread root defects; destructive: tensile, Charpy V-notch, metallographic (nodule count >220/mm², residual cementite <1.5%, pearlite fraction controlled).

In-Process Quality Control: Melt Chemistry Verification, Annealing Furnace Temperature Uniformity, Wall Thickness Measurement, and Final Inspection

Spectrographic analysis every heat; furnace charting (±5°C uniformity); ultrasonic wall thickness mapping (100% coverage); final 100% visual, dimensional, thread gauging, and hydrostatic inspection.

Manufacturing Excellence at Hebei Jianzhi Foundry Group Co., Ltd. (Vicast)

Established in 1982, Hebei Jianzhi Foundry Group Co., Ltd. (operating as Vicast) operates a 1.4 million square meter facility with approximately 4500 employees, including over 350 engineers and technical specialists. The company maintains ISO 9001 quality management and ISO 14001 environmental management certifications, holds more than 200 patents related to casting, heat treatment, and fitting design, and actively contributes to national standards development (GB/T 3287 malleable iron fittings, GB/T 9440 malleable iron). Production emphasizes 96–120 hour annealing cycles in computer-controlled roller-hearth and pit furnaces, precise chemistry control via induction melting, automated green sand and resin-bonded molding, and rigorous in-process and final inspection protocols. Vicast specializes in “Heavy-Type” malleable iron fittings, ensuring consistent microstructure uniformity, wall thickness control, and mechanical properties tailored for demanding thermal-mechanical service in global markets.

Conclusion: Strategic Specification of “Heavy-Type” Fittings for Maximum Reliability and Minimum Lifecycle Cost in Critical Service

In piping systems subject to cyclic thermal transients, mechanical vibration, pressure pulsation, water hammer, or combined loading, “Heavy-Type” malleable iron fittings deliver a compelling combination of metallurgical excellence—uniform high-density temper carbon nodules in a ferritic-pearlitic matrix—and geometric optimization—substantially increased wall thickness—to provide reduced operating stresses, significantly delayed fatigue crack initiation and propagation, and elevated safety margins. These characteristics translate to lower probability of brittle fracture, thread stripping, leakage, or premature failure, resulting in extended inspection intervals, reduced unplanned downtime, fewer replacements, and substantially lower total lifecycle costs compared to standard wall thickness fittings.

Specifying “Heavy-Type” malleable iron fittings aligns with modern risk-based engineering practices, where initial material cost is evaluated against long-term reliability, safety, and operational continuity. In steam distribution, hot water and boiler feed systems, compressed air networks, fire protection sprinkler installations, and industrial process piping, these fittings represent a proven, cost-effective solution for achieving maximum service life and minimum risk in high-demand thermal-mechanical stress environments.

Engineers and specifiers are encouraged to reference the detailed metallurgical, stress analysis, fatigue modeling, and performance data presented in this whitepaper when developing piping specifications, conducting risk assessments, or evaluating alternatives. For specific project applications, material test reports, third-party certifications, or engineering support, contact Vicast directly.

Explore the complete range of Vicast “Heavy-Type” malleable iron pipe fittings at https://www.cnvicast.com/products/ or reach out via https://www.cnvicast.com/about-us/ for technical datasheets, sample test reports, CAD models, and application-specific recommendations.

References

• ASTM A197/A197M-00(2023)e1: Standard Specification for Cupola Malleable Iron.
• ASME B16.3-2021: Malleable Iron Threaded Fittings – Classes 150, 250, and 300.
• ASME B1.20.1-2013: Pipe Threads, General Purpose (Inch).
• ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys (Malleable Iron chapter, 10th ed.).
• ASM Handbook, Volume 19: Fatigue and Fracture (Crack Growth in Cast Irons).
• EN 1562:2012: Founding – Malleable Cast Irons.
• ISO 49:2018: Malleable Cast Iron Threaded Pipe Fittings.
• ASTM A153/A153M-23: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware.
• Industry publications: Ductile Iron Pipe Research Association fatigue studies, Cast Metals Institute reports on malleable iron heat treatment, and peer-reviewed papers on thermal fatigue of cast irons (e.g., International Journal of Fatigue, Materials Science and Engineering A).

FAQs

What distinguishes “Heavy-Type” malleable iron fittings from standard grades in thermal cycling service?

The combination of 15–45% thicker walls reduces through-wall thermal gradients and operating hoop stress by 25–50%, while extended 96–120 hour annealing produces high-density temper carbon nodules that effectively blunt thermal fatigue microcracks, enabling significantly longer endurance under repeated heating-cooling transients (10^4–10^6 cycles at ΔT = 100–250°C).

How does temper carbon morphology contribute to fatigue resistance in malleable iron?

Irregular, clustered temper carbon nodules debond at the matrix interface under cyclic loading, forming microvoids that dissipate strain energy, blunt crack tips, deflect propagation paths, and reduce effective stress intensity range ΔK, resulting in lower crack growth rates (da/dN) compared to flake graphite in gray iron or residual cementite in under-annealed malleable iron.

Does “Heavy-Type” design comply with ASTM A197 and ASME B16.3 for pressure ratings and safety factors?

Yes; “Heavy-Type” fittings meet or exceed ASTM A197 minimum requirements (tensile ≥345 MPa, elongation ≥5%, often 10–14% achieved) and ASME B16.3 Class 150/300 pressure-temperature ratings, with thicker walls providing safety factors of 4.5–7 on burst pressure and enhanced margins against fatigue, overload, and corrosion thinning.

In which systems do “Heavy-Type” fittings offer the most significant lifecycle benefits?

The greatest benefits occur in saturated steam and superheated steam distribution (thermal ratcheting and pressure cycling), hot water/boiler feed systems (thermal shock and daily cycling), compressed air networks (pulsation and vibration), fire protection sprinkler piping (water hammer surges), and industrial process lines (frequent batch thermal transients), where reduced stress and enhanced fatigue resistance translate to longer service life, fewer leaks, and lower maintenance/replacement costs.

How does wall thickness influence hoop stress, burst pressure, and overall fitting integrity in cyclic service?

Per the hoop stress equation σ_h = P·d / 2t, increased wall thickness t directly lowers operating stress for any given pressure P and diameter d. This reduction elevates burst pressure (P_b ≈ 2·UTS·t / d), increases fatigue initiation life, raises crack propagation thresholds, and provides additional corrosion allowance, collectively improving integrity and reliability under cyclic thermal-mechanical loading.
